Garage-Living Plan 100315

• PDF File: $1,150.00
• 5 Sets: $1,315.00
• 5 Sets plus PDF File: $1,364.00
• CAD File: $1,650.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1749 sq ft
Main Living Area:	1749 sq ft
Garage Area:	1251 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	60'0
House Depth:	50'0
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	16'9 from Front Door Floor Level
Primary Roof Pitch:	1.5:12
Roof Load:	20 psf
Roof Framing:	Truss
Main Ceiling Height:	8'
Vaulted Ceiling:	Yes

Special Features:

• Entertaining Space
• Office
• Open Floor Plan
• Pantry
• Storage Space

Modern Style Garage Apartment Plan With 50' Deep Garage

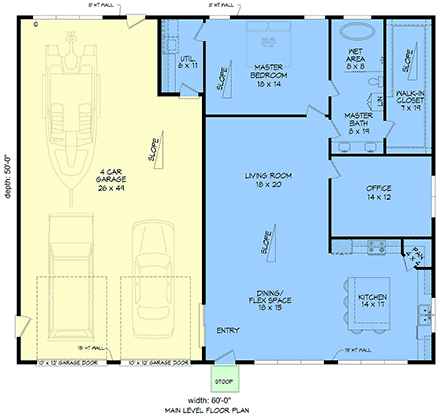

Modern Style Garage Apartment Plan With 50' Deep Garage shows spacious parking to include even your boat. The garage doors measure 10' wide by 12' tall, and the garage area is 1,251 sq ft. Inside, the living space is 1,749 sq ft, and it's lit up with natural light thanks to tall windows that fit under the upward angled roof. Up front when you walk inside is the kitchen and dining space, and that area moves into the living room. To the right is a home office measuring 14' x 12'. In the rear of the floor plan is the master suite. The master bath is well-designed with a wet room including a shower and freestanding tub. Homeowners will like how the utility room is connected to the bedroom, and the next door passes into the garage.

Plans include

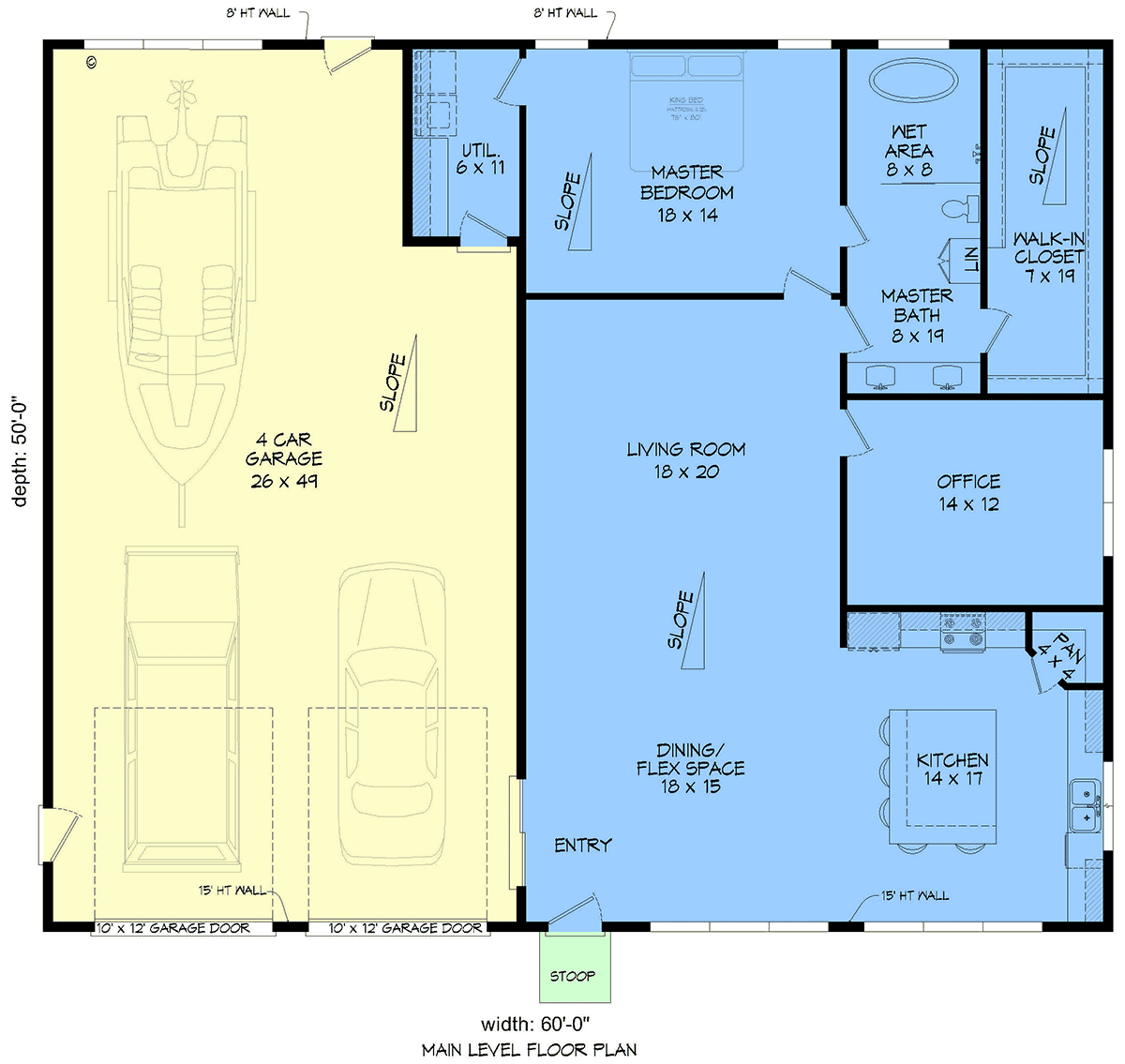

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

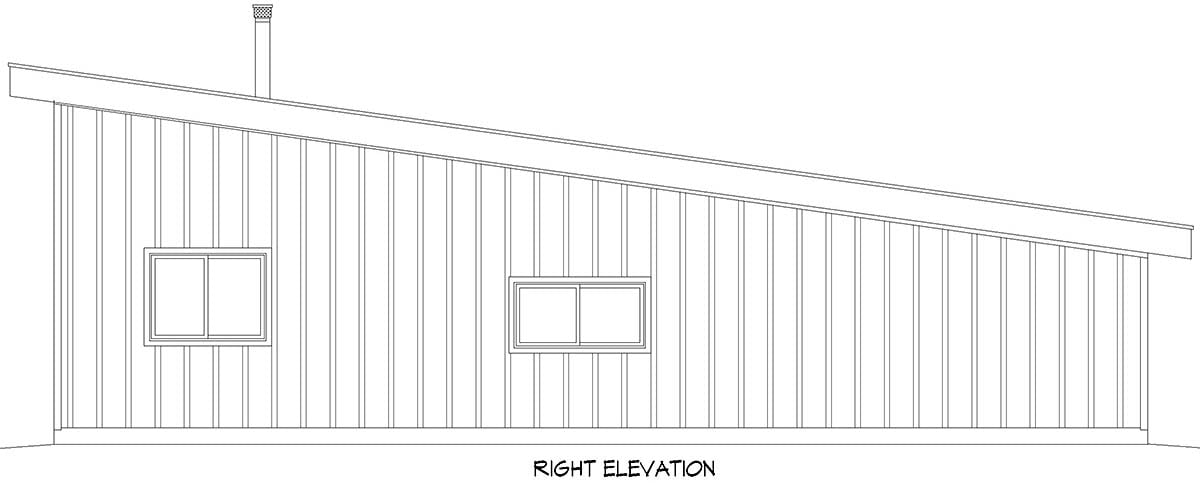

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
