House Plan 41863

• PDF File: $1,450.00
• 5 Sets plus PDF File: $1,800.00
• PDF File Unlimited Build: $2,050.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $2,700.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,250.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $275.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Available Foundation Types:

• Basement : $395.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $295.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $295.00
  May require additional drawing time, please call to confirm before ordering.
• Walkout Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2779 sq ft
Main Living Area:	2031 sq ft
Upper Living Area:	748 sq ft
Unfinished Basement Area:	2042 sq ft
Garage Area:	2100 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $295.00 Slab - * $295.00 Walkout Basement
Exterior Walls:	2x6
House Width:	86'0
House Depth:	70'0
Number of Stories:	2
Bedrooms:	4
Full Baths:	3
Max Ridge Height:	26'10 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	823 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Open Floor Plan
• Pantry
• Storage Space
• Workshop

Barndominium Style House Plan 41863 with 2779 Sq Ft, 4 Beds 3 Baths and a 4 Car Garage

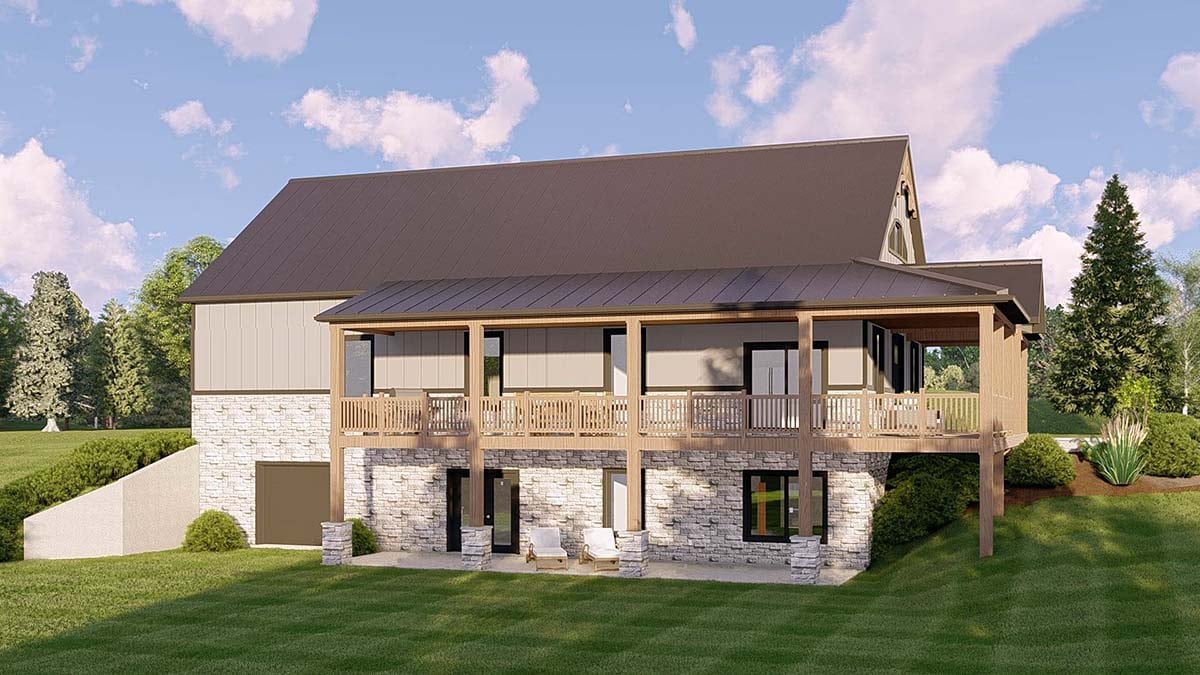

Barndominium House Plan 41863 has a whopping total of 2,779 square feet of living space. Four bedrooms and three bathrooms are included in this 2 story design. Even more impressive, the attached garage/shop area is another 2,100 square feet! As if that's not enough space, the unfinished walkout basement is wide open with 2,042 square feet, and you can always convert that to living space. Don't forget to count the wonderful wrap around covered deck—it weighs in at 823 square feet.

Hillside Barndominium House Plan

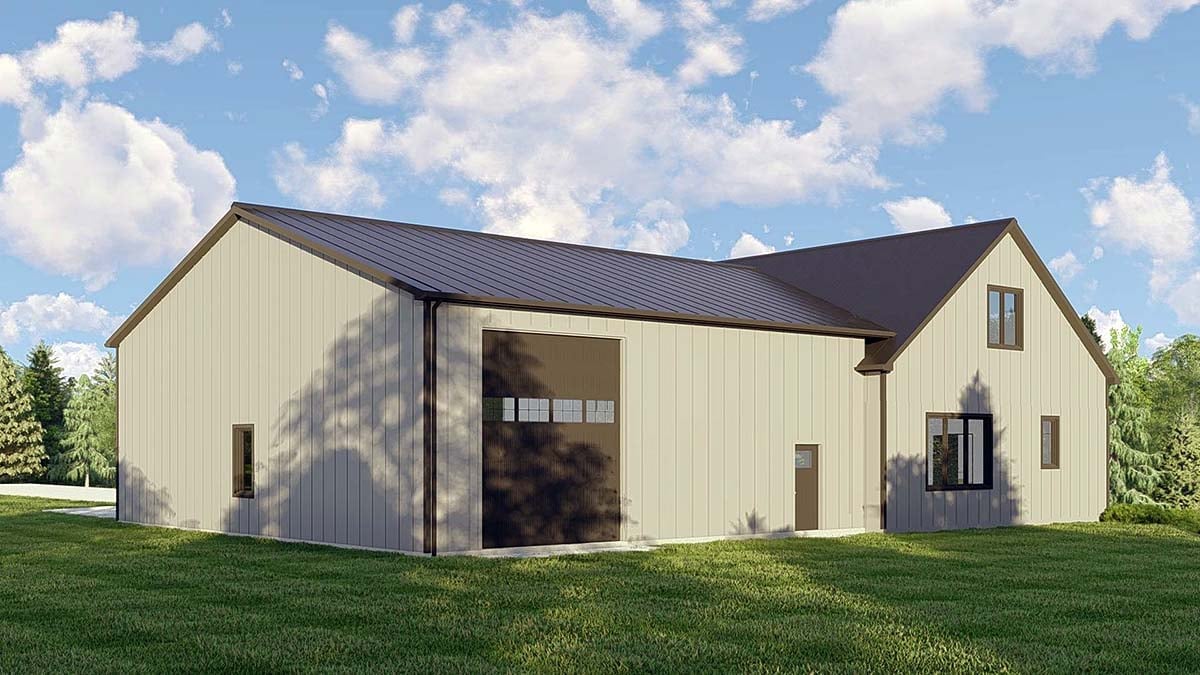

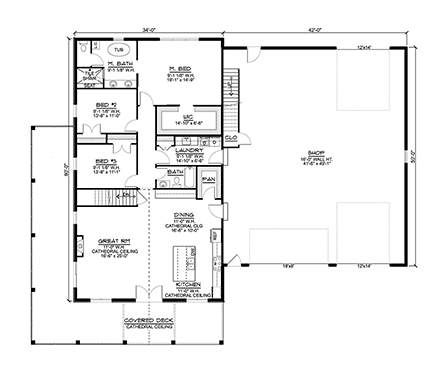

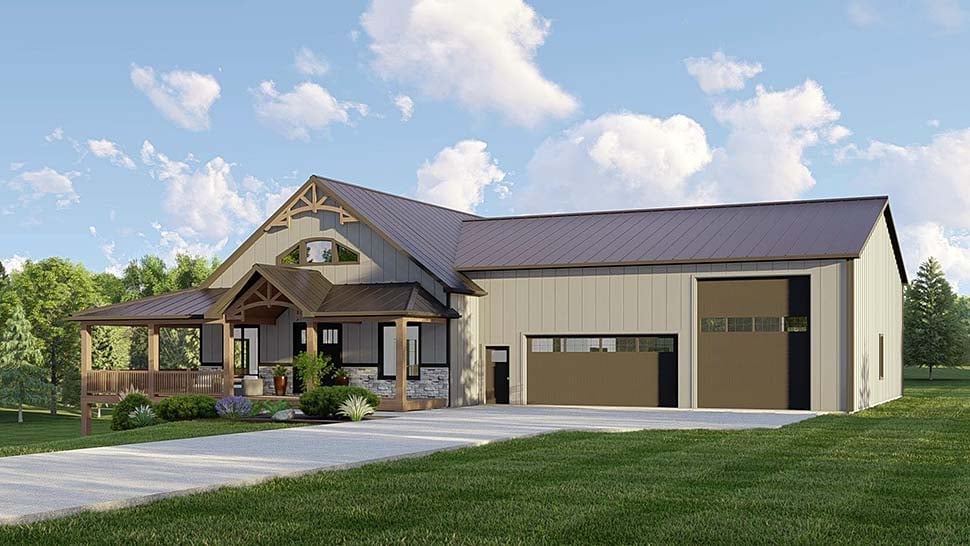

Barndominium House Plan 41863 is designed for families who needs lots of space. Firstly, the garage measures 42 feet wide by 50 feet deep, and it includes extra space for a shop. Utilize the drive-through garage for your motorhome or truck and trailer. The 14' tall ceiling means that you won't be limited when it comes to a tall vehicle. Another 18 x 8 door allows access for your smaller vehicles, and additional area can be used for woodworking projects and storage.

Secondly, open living space serves for great family and guest entertainment. The covered deck entrance has a cathedral ceiling which continues into the home. Walk through the double front door and find the great room on your left. Style your fireplace so that it will become the focal point in this bright living space. Turning to the right, the kitchen is complete with a large island and a walk-in pantry. Additional cabinets offer more storage on the dining room wall.

Great Primary Suite and Guest Room

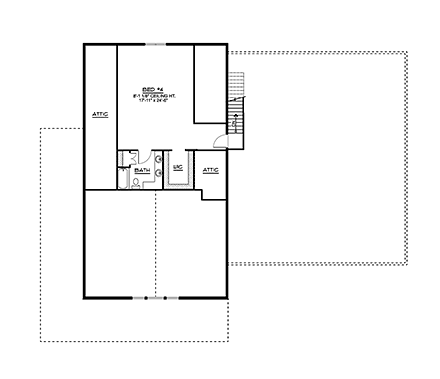

Thirdly, the Bedroom 4 suite takes up the whole upper level of Barndominium House Plan 41863. The bedroom is huge at 17'11 wide by 24'6 deep. This will make an excellent guest room when you have family over for the holidays. At other times, use it for recreation. There is a large walk in closet and full bathroom with linen closet. Lastly on the upper level, we find abundant attic storage.

Two children's bedrooms are located on the main floor close to the primary bedroom. Mom and Dad will appreciate being close to the kids, especially if they are little. The primary bedroom has a massive walk in closet and then a well-designed bathroom. The bathroom includes a tile walk-in shower with seat, private water closet, double vanity, and freestanding tub.

Title page

4 elevations, all details, notes, etc...

Floor plans (1st, 2nd, bsmt, etc...)

Roof plan

Wall sections, sometimes building cross sections

Foundation plan & Foundation details

General notes page

Electrical plans for each floor.

Miscellaneous column, bracket, details, stair sections.

What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans, plumbing and hvac (We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Common Q & A
