| Order Code: 00WEB |
Multi-Family Plan 45365
sq ft
1970beds
4baths
2bays
0width
57'depth
43'
Thumbnails: ON | OFF
Quick Specs
1970 Total Living Area1970 Main Level
4 Bedrooms, 2 Full Baths
56'3" W x 43'0" D
Quick Pricing
PDF File: $1,695.005 Sets: $1,945.00
5 Sets plus PDF File: $2,045.00
CAD File: $2,545.00
Plan Pricing from $1,695.00
Plan Pricing
Truss Roof System (up to 1-2 weeks delay)
Brick Veneer Option (up to 1-2 weeks delay)
Plan Options:
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1970 sq ft |
| Main Living Area: | 1970 sq ft |
| Garage Type: | None |
| Foundation Types: | Crawlspace Slab - * $300.00 |
| Exterior Walls: | 2x4 2x6 - * $400.00 |
| House Width: | 56'3" |
| House Depth: | 43'0" |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Max Ridge Height: | 17'9" from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Stick |
| Porch: | 108 sq ft |
| Deck: | 168 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
Associated Styles:
Plan Description
Bungalow Ranch House Plan with 1,970 Sq Ft, 4 Bed, 2 Bath

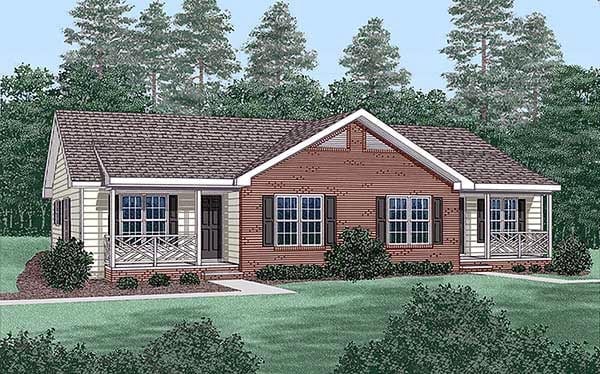

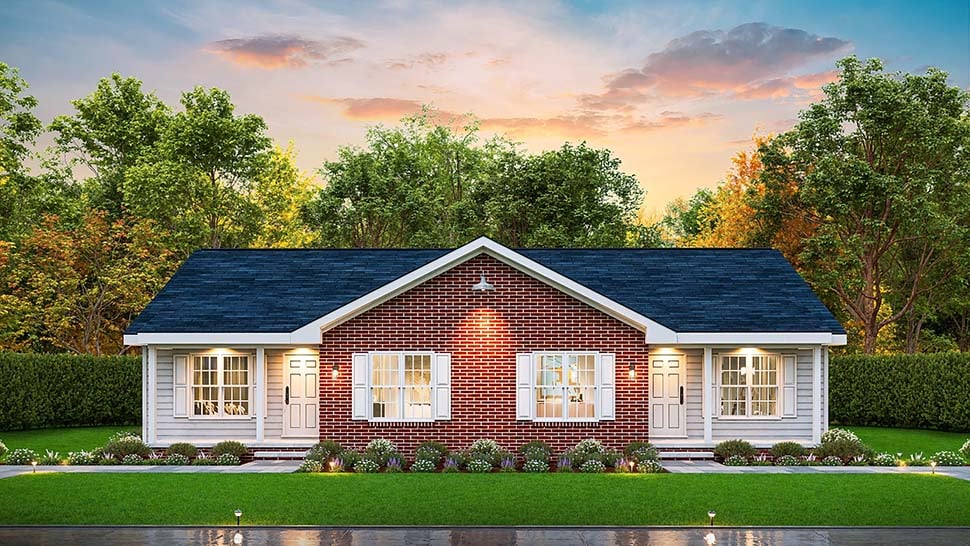

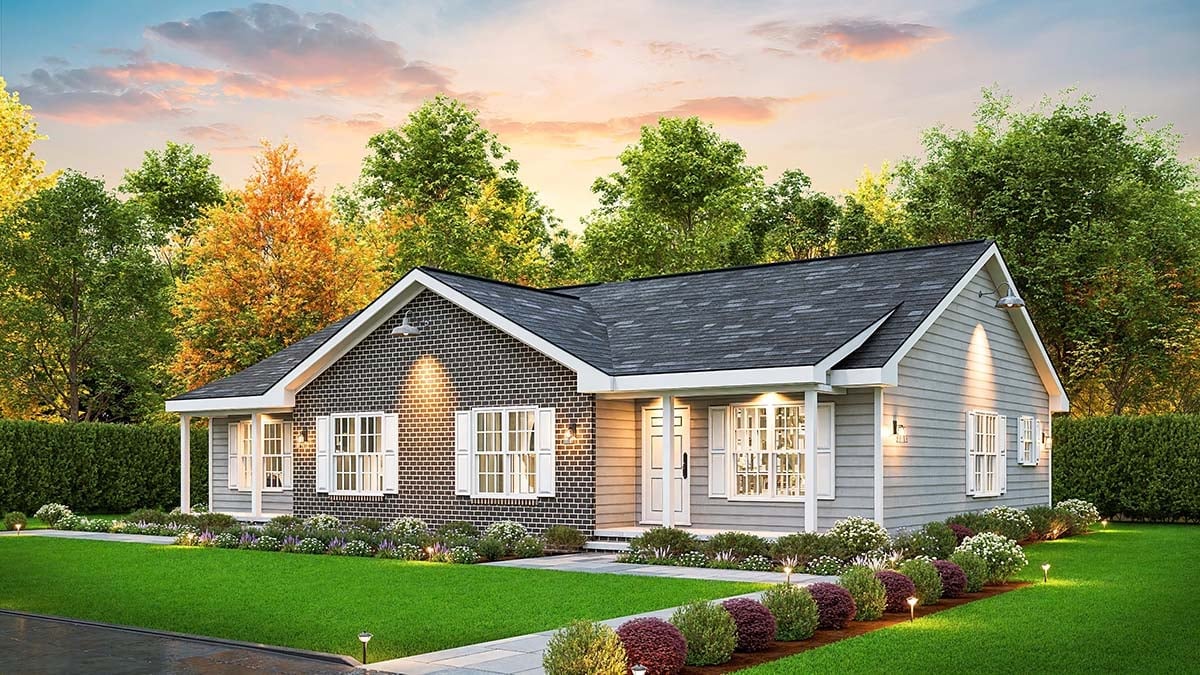

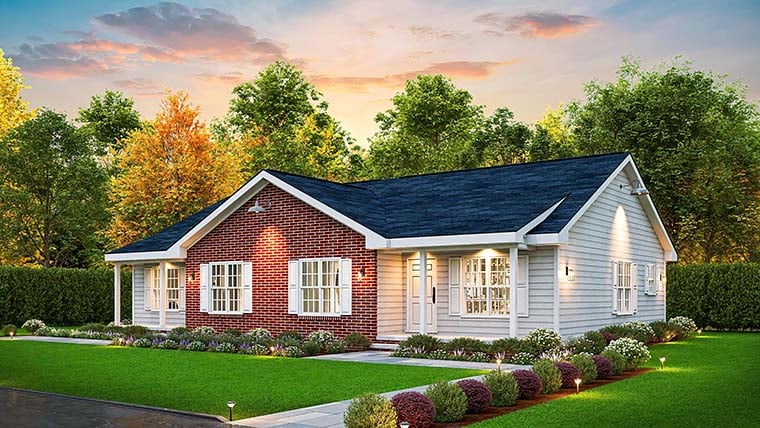

Experience timeless charm and practical living with this Bungalow Ranch house plan, offering a total of 1,970 square feet across a single story. Designed to meet the needs of modern families or savvy investors, this multi-family duplex plan features four bedrooms and two full bathrooms, perfectly arranged to maximize privacy and comfortable living. The thoughtful layout is ideal for those seeking an affordable new build, an investment property, or a flexible home that accommodates extended family or assisted living needs.From the curb, the classic lines of the Bungalow and Ranch architectural styles create inviting street appeal. With a house width of 56'3" and a depth of 43', the facade is complemented by a 108 sq ft covered porch—perfect for relaxing outdoors and welcoming guests. The spacious rear deck, measuring 168 sq ft, expands your outdoor living space for entertaining, grilling, or unwinding in the open air.

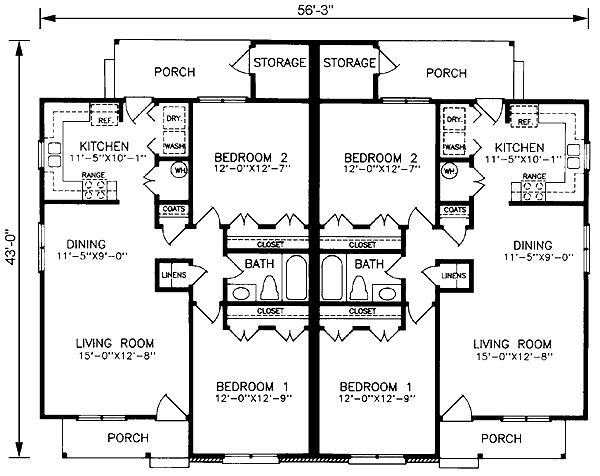

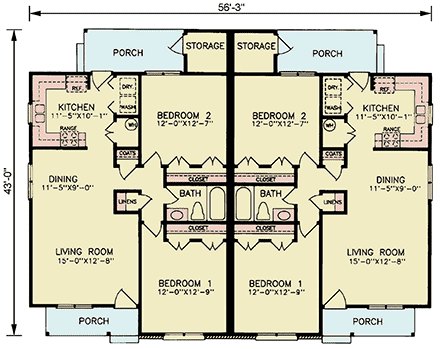

Inside, each side-by-side unit offers a comfortable open-plan main living area with 8' ceilings and functional flow between the kitchen, dining, and family rooms. The one-story layout ensures easy accessibility for residents of all ages, making it ideal for families or seniors. Each unit includes two bedrooms and one full bath, providing separate, self-contained living spaces with ample privacy for occupants.
The master bedroom is conveniently located on the first floor of each unit, offering ease of access and a peaceful sanctuary. Secondary bedrooms are equally well-sized, ideal for children, guests, or as flexible office or hobby space.
Additional features include stick-framed roofing, optional brick veneer, and the choice of slab or crawlspace foundations to suit your specific building requirements. With no garage, the design maximizes living space and keeps construction costs affordable.
This multi-family house plan is perfect for investors, multi-generational families, or anyone seeking a versatile and efficient duplex option. Enjoy the blend of classic style, functional design, and investment potential—all in a single, thoughtfully crafted home.
What's Included?
Plans include complete working drawings.

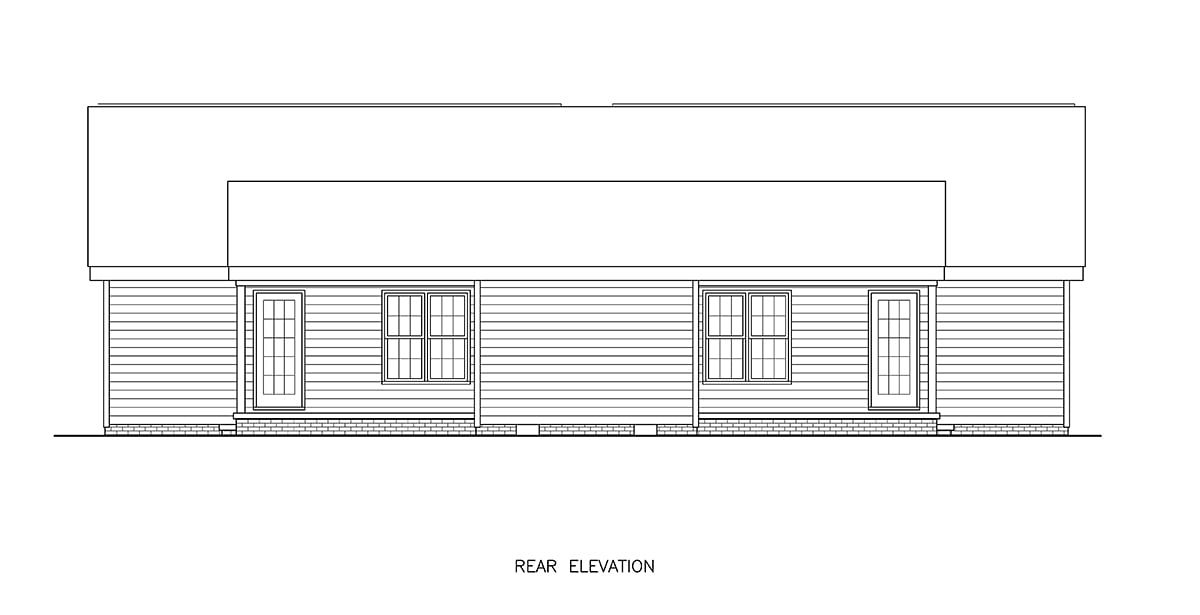

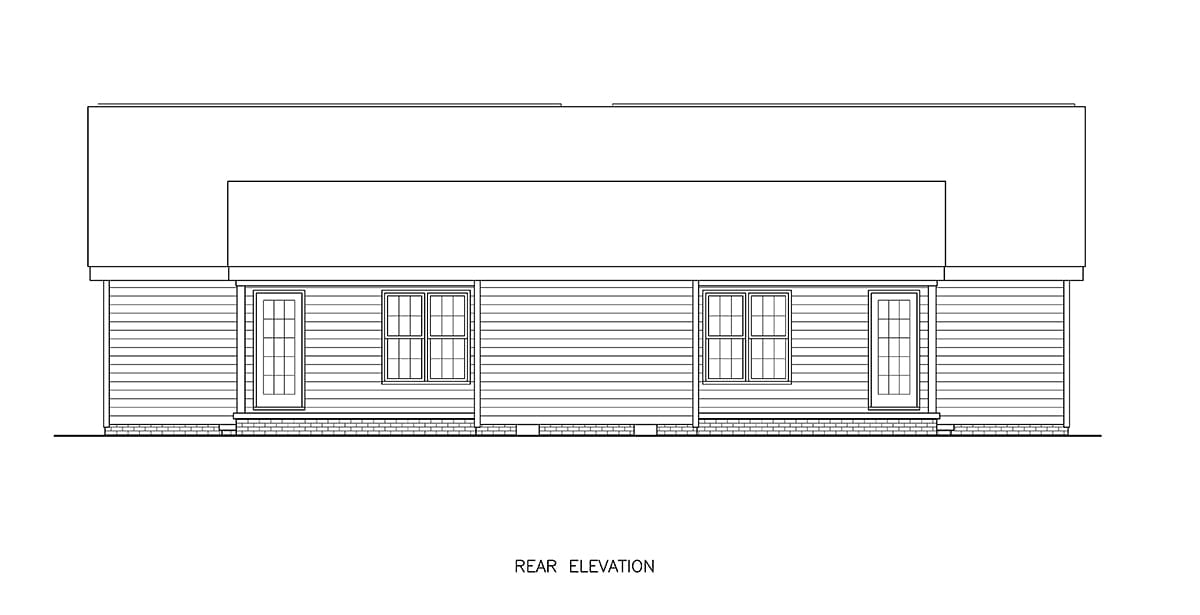

all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled
floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled
floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
