Multi-Family Plan 45445
sq ft
1654beds
4baths
2bays
0width
62'depth
40'
Thumbnails: ON | OFF
Quick Specs
1654 Total Living Area1654 Main Level
4 Bedrooms, 2 Full Baths
62'0 W x 39'8 D
Quick Pricing
PDF File: $1,695.005 Sets: $1,945.00
5 Sets plus PDF File: $2,045.00
CAD File: $2,545.00
Plan Pricing from $1,695.00
Plan Pricing
Plan Options:
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1654 sq ft |
| Main Living Area: | 1654 sq ft |
| Garage Type: | None |
| Foundation Types: | Crawlspace Slab - * $300.00 |
| Exterior Walls: | 2x4 2x6 - * $400.00 |
| House Width: | 62'0 |
| House Depth: | 39'8 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Max Ridge Height: | 13'0 from Front Door Floor Level |
| Primary Roof Pitch: | 4:12 |
| Roof Framing: | Stick |
| Porch: | 150 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
Associated Styles:
Plan Description
Ranch Duplex House Plan 45445 with 1,654 Sq Ft, 2 Bedrooms and 1 Bath Per Unit – Affordable One-Story Living

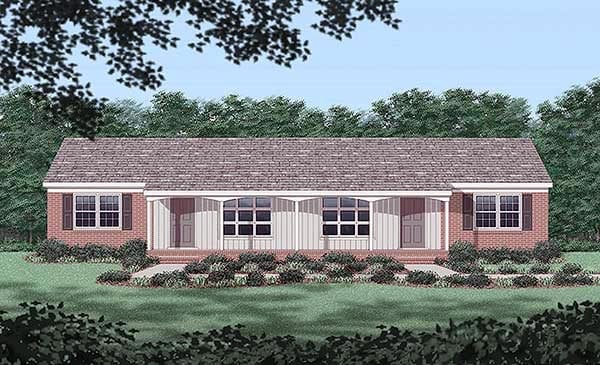

Ranch Duplex House Plan 45445 offers 1,654 square feet of total living space in two efficient, single-story residences. Each unit provides approximately 827 square feet with 2 bedrooms and 1 full bathroom, creating a combined total of 4 bedrooms and 2 bathrooms. Designed for economical multifamily construction, this traditional Ranch duplex features open-concept gathering spaces, welcoming front porch accommodations, and practical everyday conveniences. Its compact design makes it appealing for rental housing, owner-occupied duplexes, and residential development projects.The exterior reflects the timeless simplicity of classic Ranch architecture. A modest roof pitch, straightforward building lines, and an optional brick veneer finish create attractive residential character. The welcoming front porch adds curb appeal and provides a comfortable outdoor destination for relaxing or greeting visitors.
Inside each residence, the open-concept great room connects naturally with the kitchen and dining area. This efficient arrangement maximizes usable living space while creating an inviting atmosphere for relaxing, entertaining, and everyday household activities. Comfortable eight-foot ceilings contribute to the home's familiar residential proportions.
The kitchen offers a practical workspace with convenient access to the adjoining dining area. Its efficient configuration supports meal preparation while maintaining an open connection with the principal gathering spaces. This thoughtful relationship makes comfortable everyday living possible without requiring excessive square footage.
Each unit includes two bedrooms, providing flexible accommodations for couples, small families, roommates, or residents requiring a home office. A conveniently located full bathroom serves the residence, while the single-story arrangement eliminates interior stairs and supports easy household circulation.
A dedicated laundry area adds practical convenience to everyday routines. The efficient floor plan makes thoughtful use of available space, creating comfortable accommodations without unnecessary hallways or complicated interior arrangements.
The compact footprint and uncomplicated roof design can help simplify construction planning and future exterior maintenance. Crawlspace and slab foundation options provide flexibility for different building sites, while optional brick veneer allows homeowners and builders to personalize the exterior appearance.
With two independent residences, four total bedrooms, welcoming porch space, and comfortable open living areas, House Plan 45445 combines traditional Ranch appeal with practical multifamily functionality. This economical duplex offers a sensible choice for builders and property owners seeking efficient residential accommodations.
Better Living by Good Design.
What's Included?
Plans include complete working drawings.
all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled

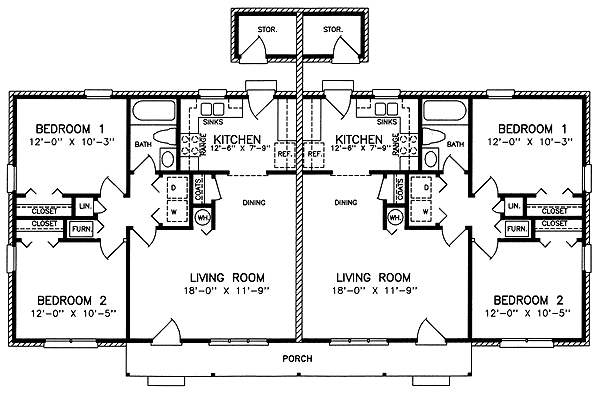

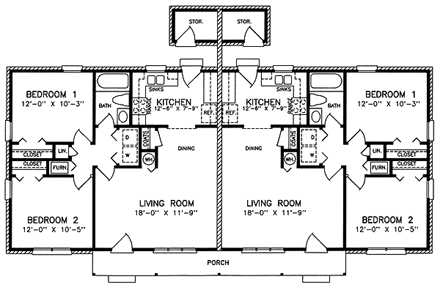

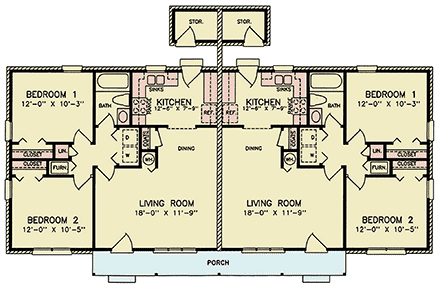

floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled
floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
