Click Any Image For Gallery

Add to cart

Plan Pricing from $1,675.00

Plan Pricing

PDF File: $1,675.00
5 Sets: $1,750.00
5 Sets plus PDF File: $1,825.00
CAD File: $1,975.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $368.75
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $25.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Garage Area:	2833 sq ft
Garage Type:	Detached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	42'6
House Depth:	41'11
Number of Stories:	2
Bedrooms:	1
Half Baths:	1
Max Ridge Height:	22'4 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Stick
Main Ceiling Height:	12'0
Upper Ceiling Height:	6'0

Plan Description

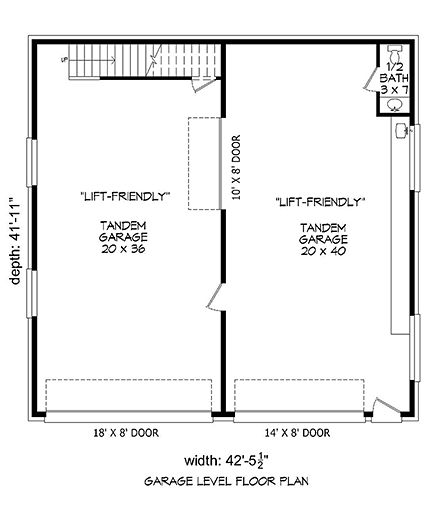

Large Double Tandem Garage, Lift Friendly with Loft

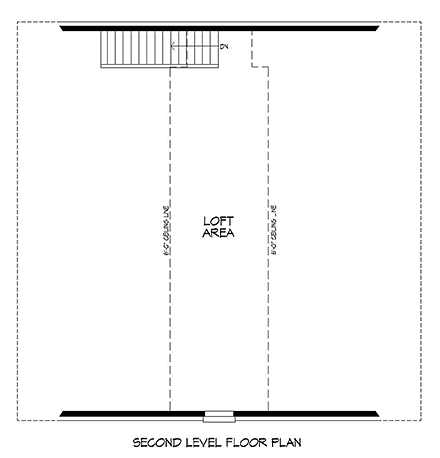

Large Garage with 12 foot ceilings and lift friendly bays. Large work bench and loft for storage.

Special Features:

Bonus Room
Workshop

What's Included?

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
