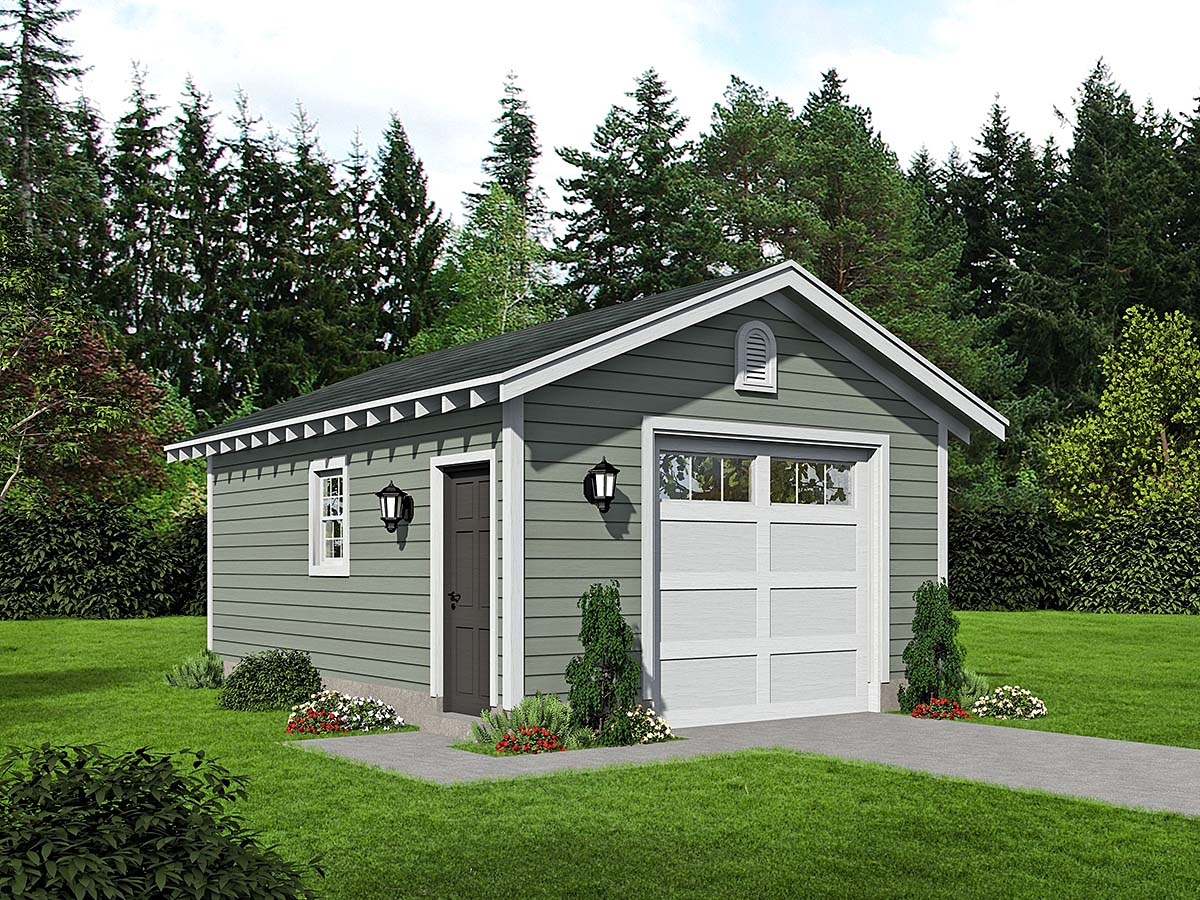

1 Car Garage Plan 52154

• PDF File: $725.00
• 5 Sets: $800.00
• 5 Sets plus PDF File: $850.00
• CAD File: $1,025.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $343.75
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $25.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $50.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	384 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $50.00
House Width:	16'0
House Depth:	24'0
Number of Stories:	1
Max Ridge Height:	12'9 from Front Door Floor Level
Primary Roof Pitch:	5:12
Roof Framing:	Stick
Main Ceiling Height:	9'

* May require additional drawing time.

Plans include

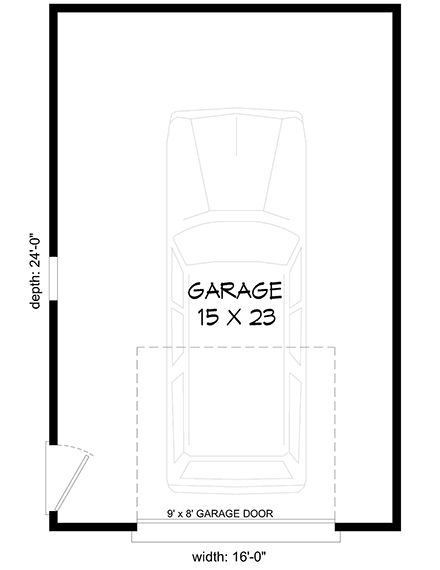

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
