House Plan 52930
Mediterranean Style with 4 Bed, 6 Bath, 3 Car Garage | Plan 52930
sq ft
3382beds
4baths
4.5bays
3width
62'depth
104'
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3382 sq ft |
| Main Living Area: | 3382 sq ft |
| Garage Area: | 845 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 - * $437.50 2x6 - * $437.50 2x8 - * $437.50 Concrete |
| House Width: | 61'8 |
| House Depth: | 103'8 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Half Baths: | 2 |
| Max Ridge Height: | 28'0 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Truss |
| Porch: | 683 sq ft |
| Formal Dining Room: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 12'0 |
Special Features:
Plan Description
Tour our popular 4 bedroom Mediterranean Style House Plan which is handicap accessible and includes vaulted ceilings, outdoor kitchen, covered lanai, library and much more!

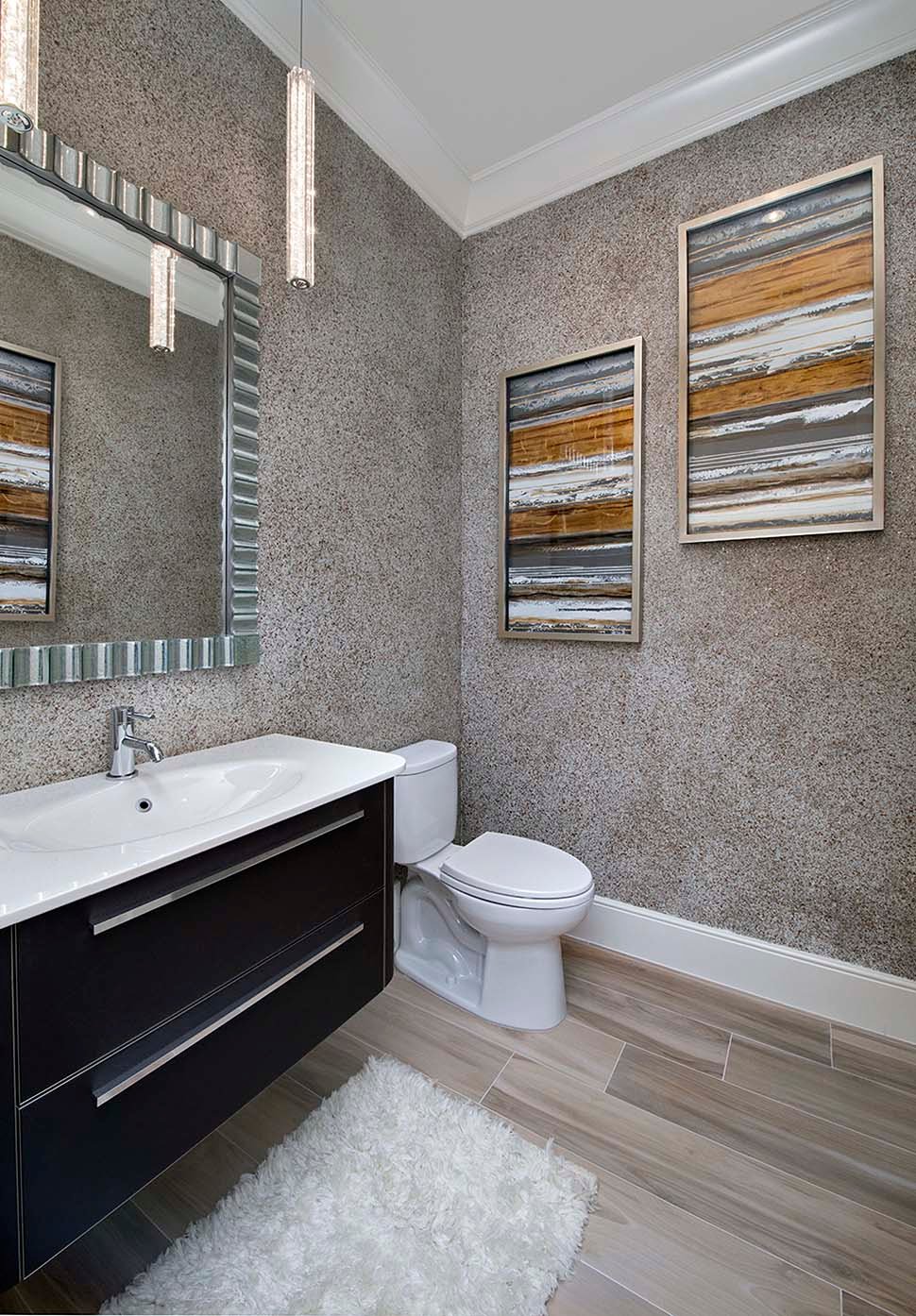

Mediterranean Style, Coastal Style, and Florida Style can be applied to this beautiful 3382 square foot architectural design. Four bedrooms are arranged with a split floorplan layout. Each smaller bedroom has its own 3/4 bathroom. One powder room is provided for guests in the hallway. Outside is a pool bath.

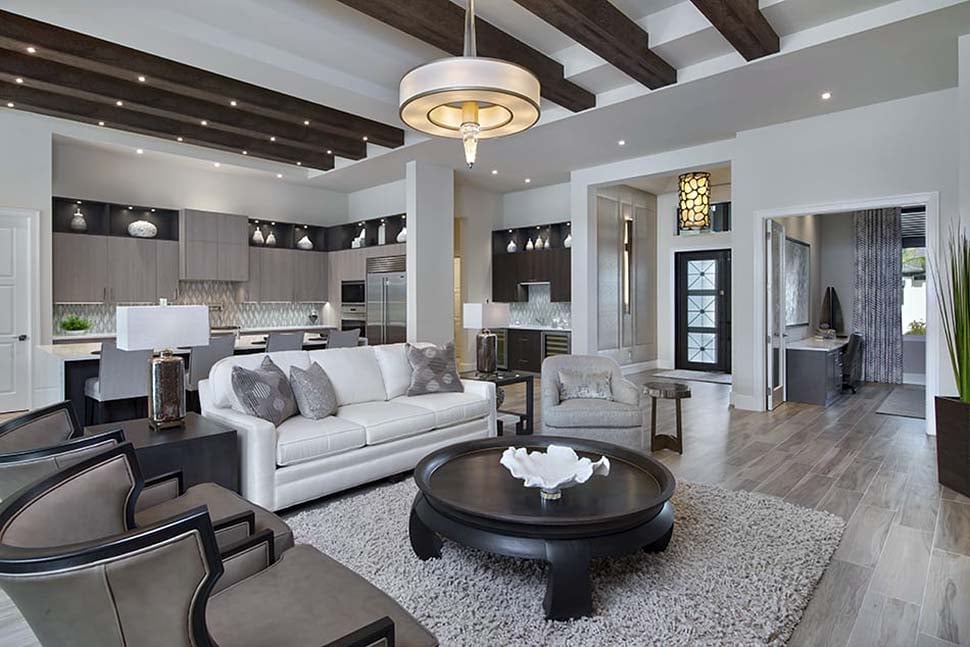

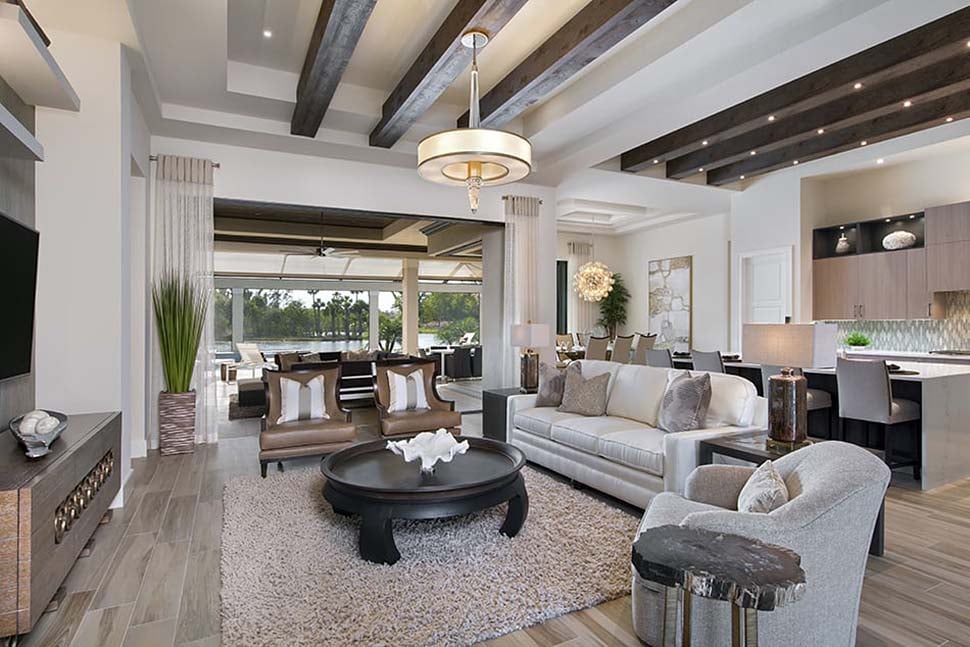

Open concept living space is central to the house. Beams and special ceiling treatments add interest to the tall ceilings.

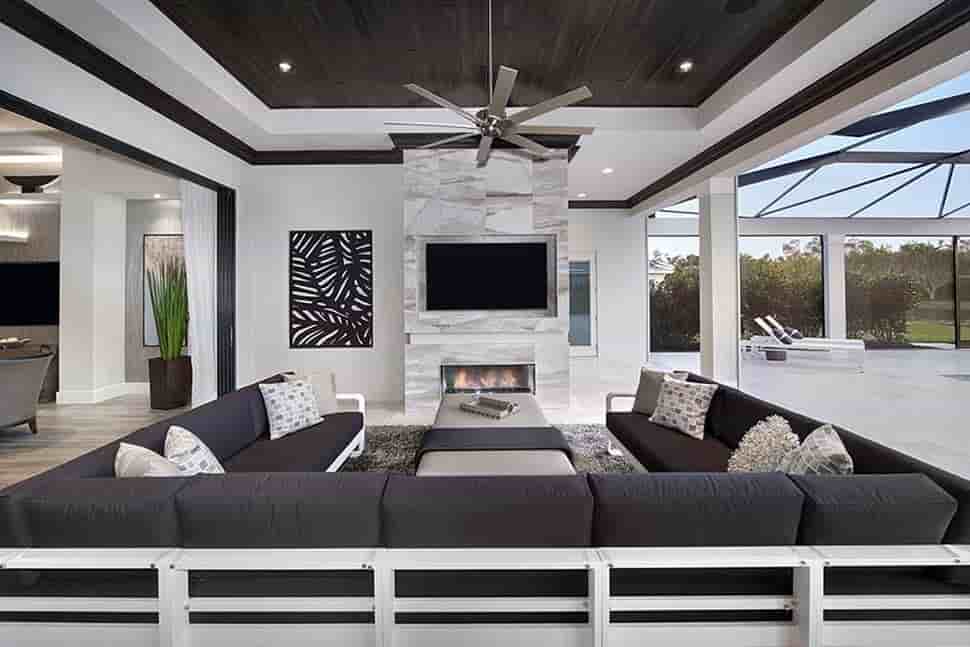

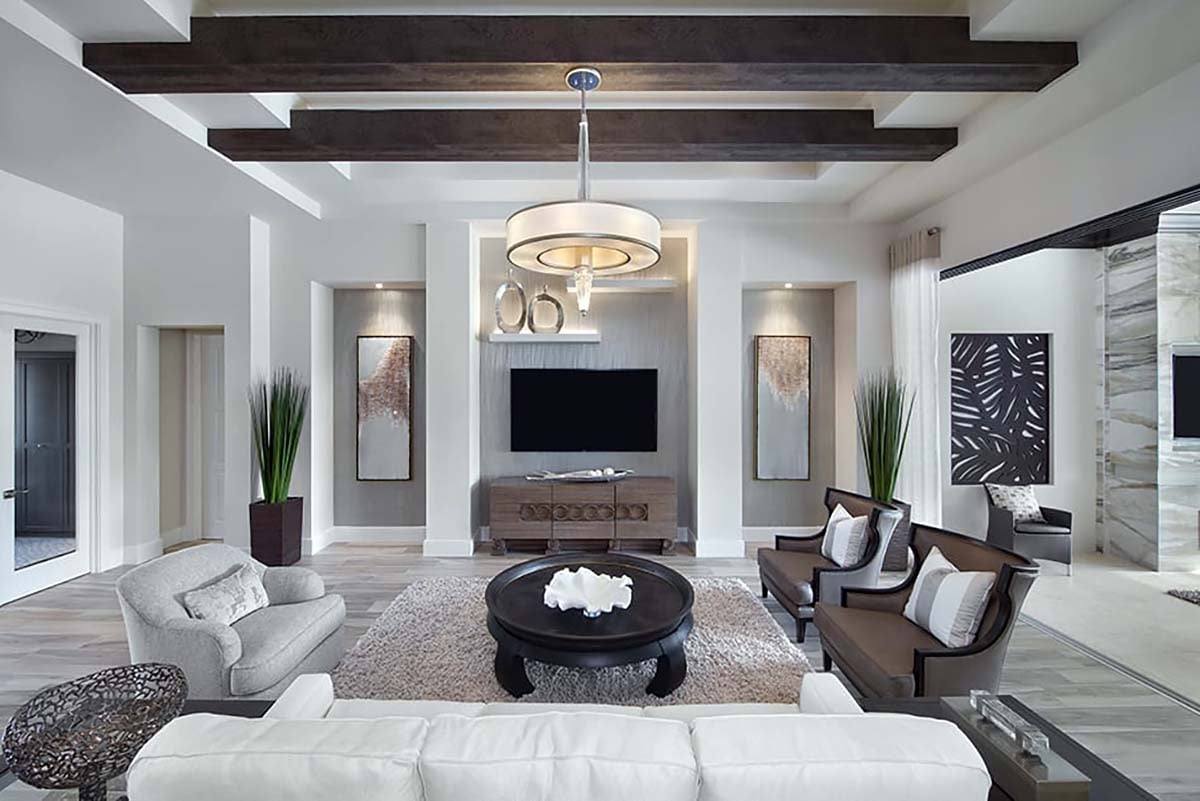

Passing from the foyer to the great room, you will love the coastal interior design of the tiled fireplace. A u-shaped couch encourages conversation for friends and family.

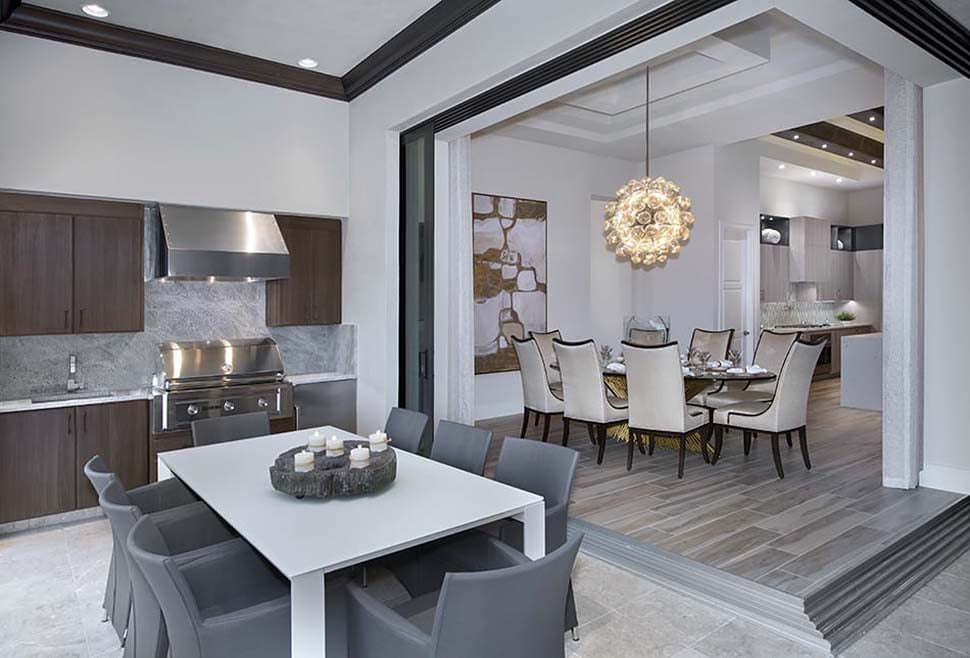

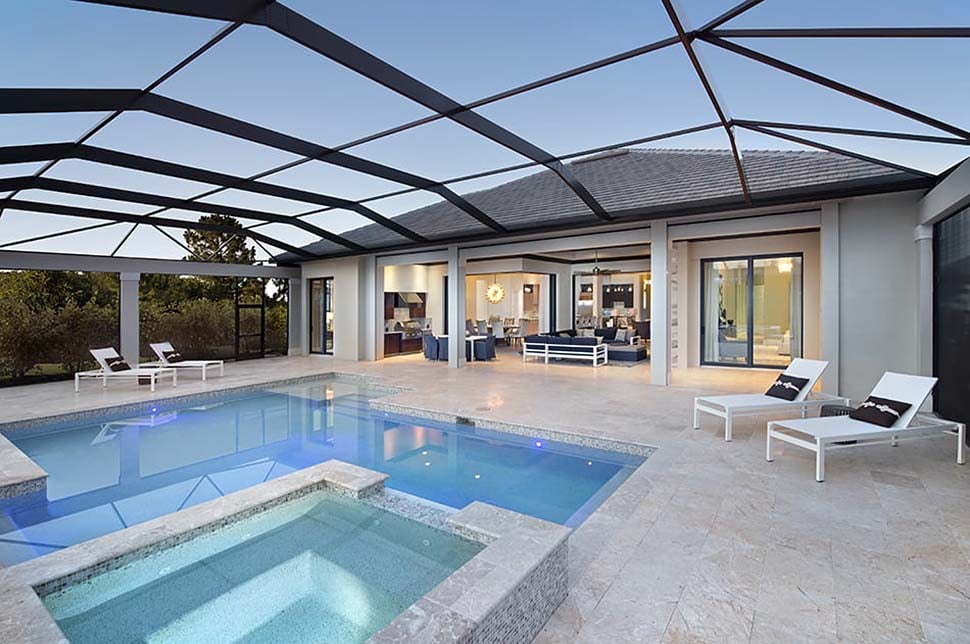

Expansive windows across the back of the house offer views of the outdoor living space. Create an area for seating and dining under the covered lanai and screened lanai. Your outdoor fireplace is optional along with the kitchen.
Gaze beyond the outdoor living space and imagine a large swimming pool or a view of the ocean.

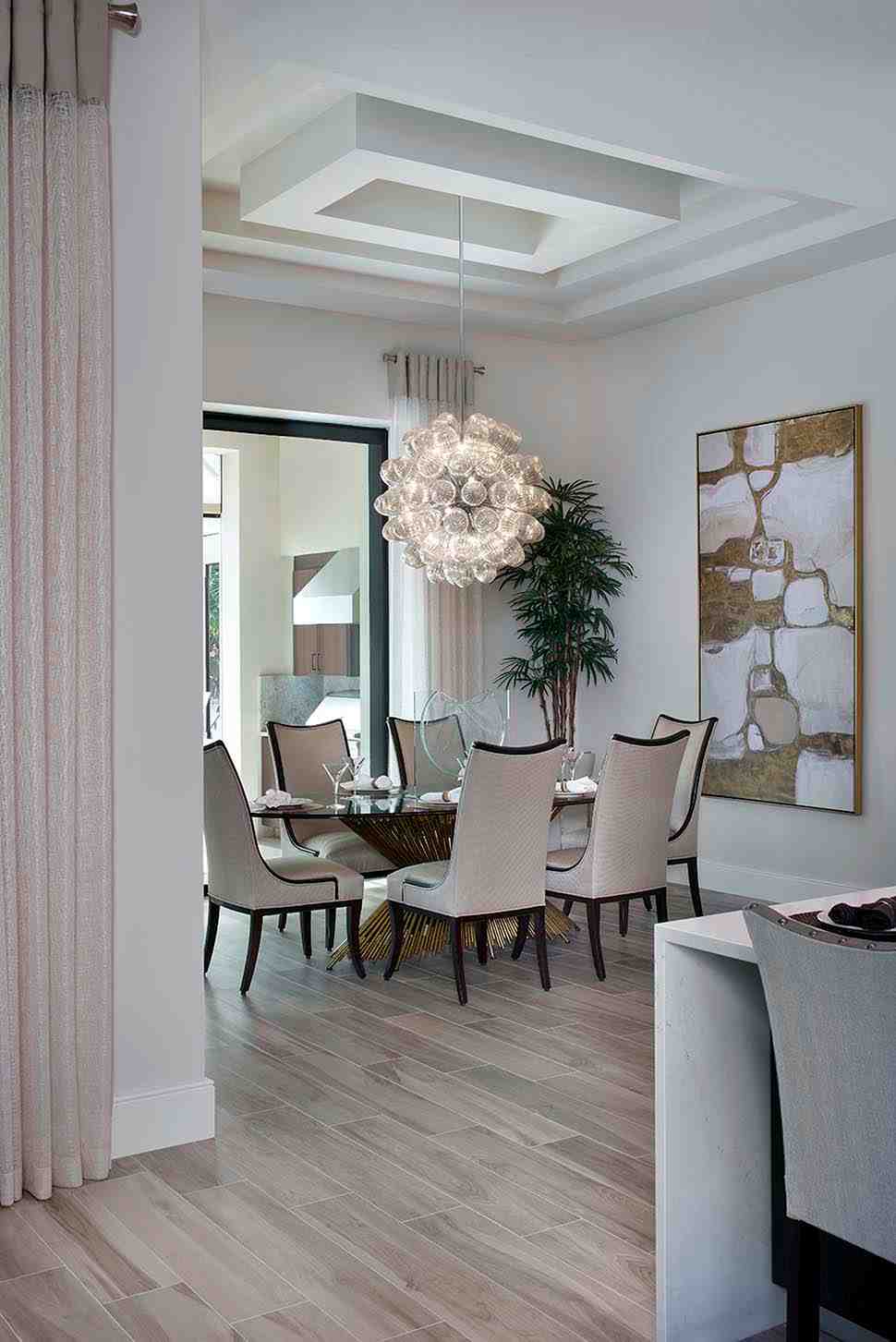

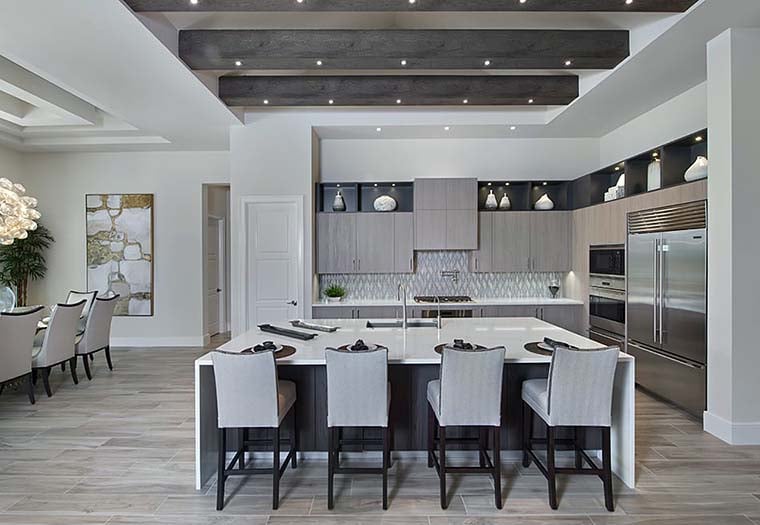

You can seat 4 people at the kitchen island. For larger gatherings, move over to the dining room which mirrors the outdoor dining space. You will never run out of necessities for meal preparation due to a large walk-in pantry.

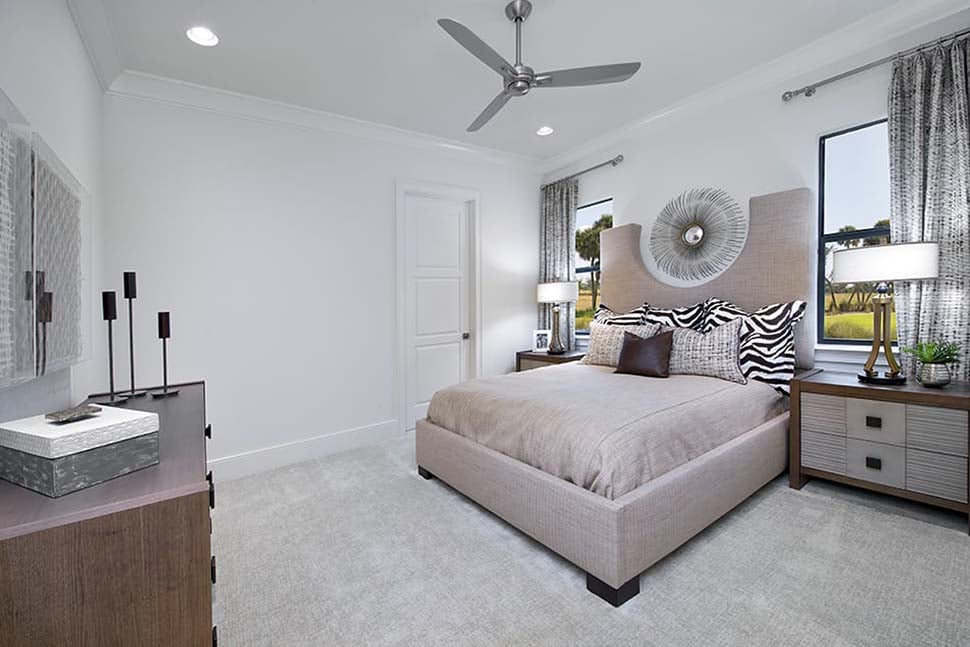

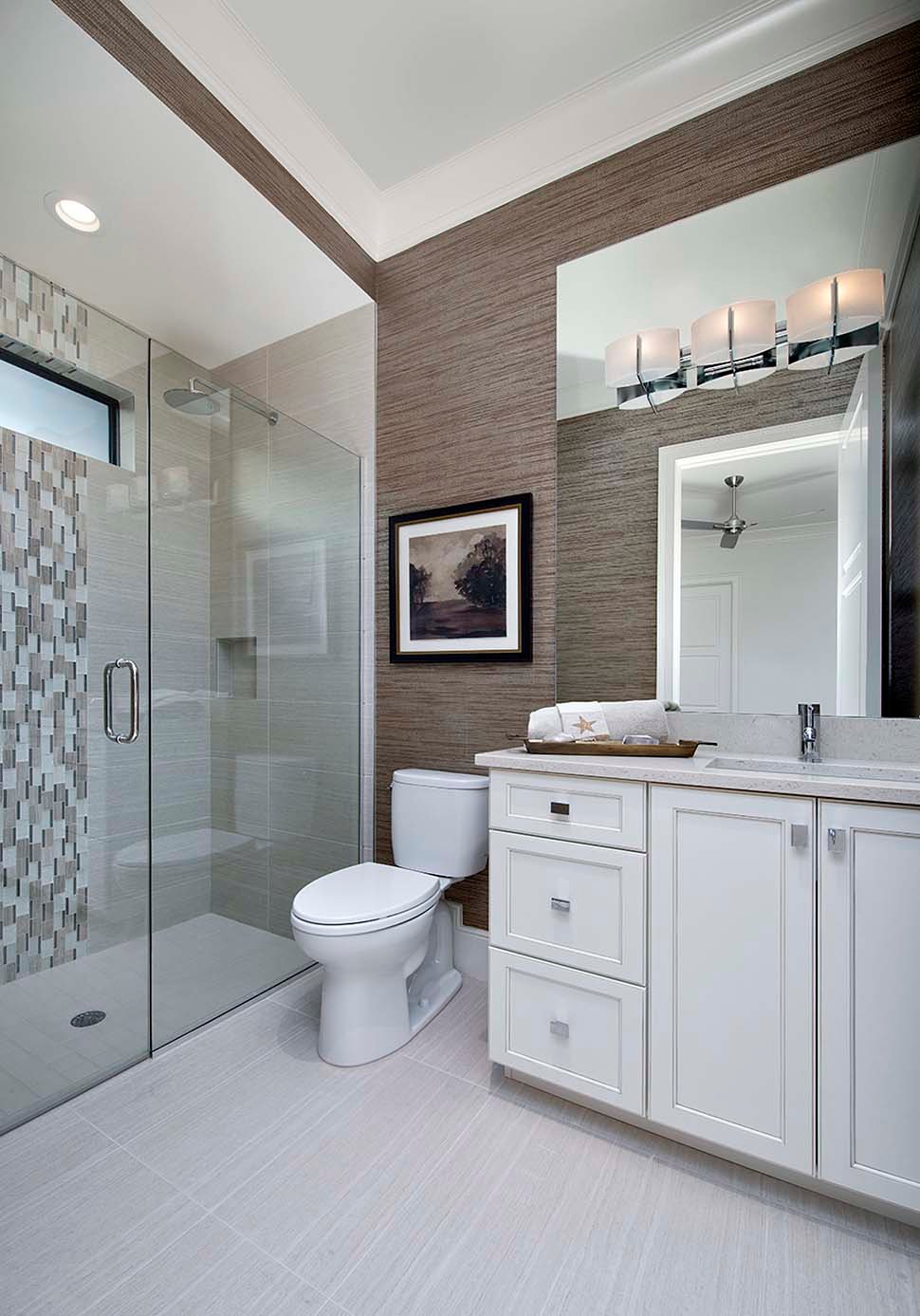

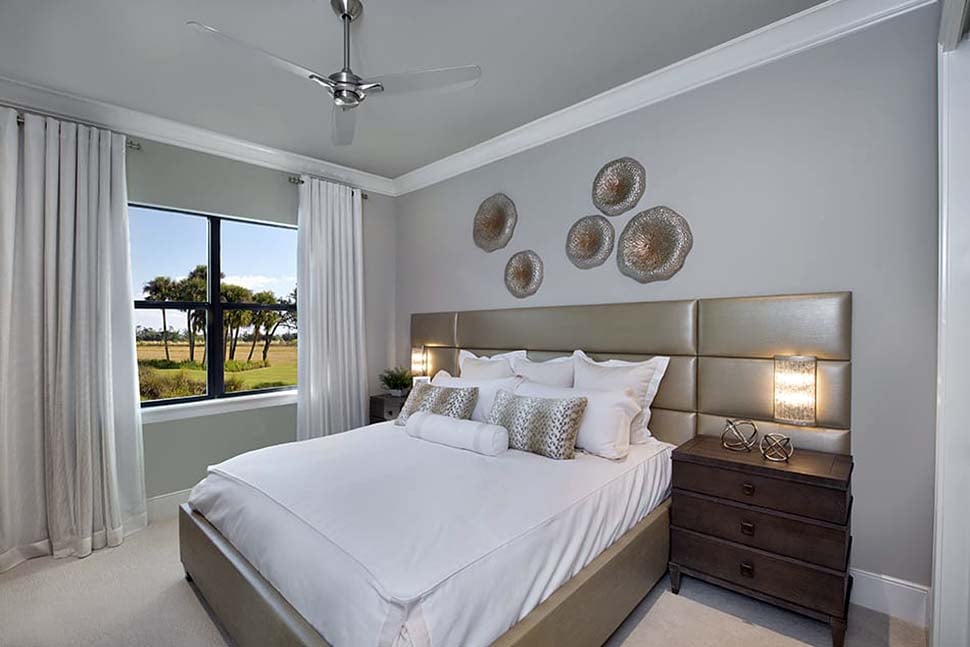

Bedroom 4 doubles as a guest room because it's a little more private at the back of the house. The two front bedrooms will work for the kids, and they will appreciate having their own bathrooms.

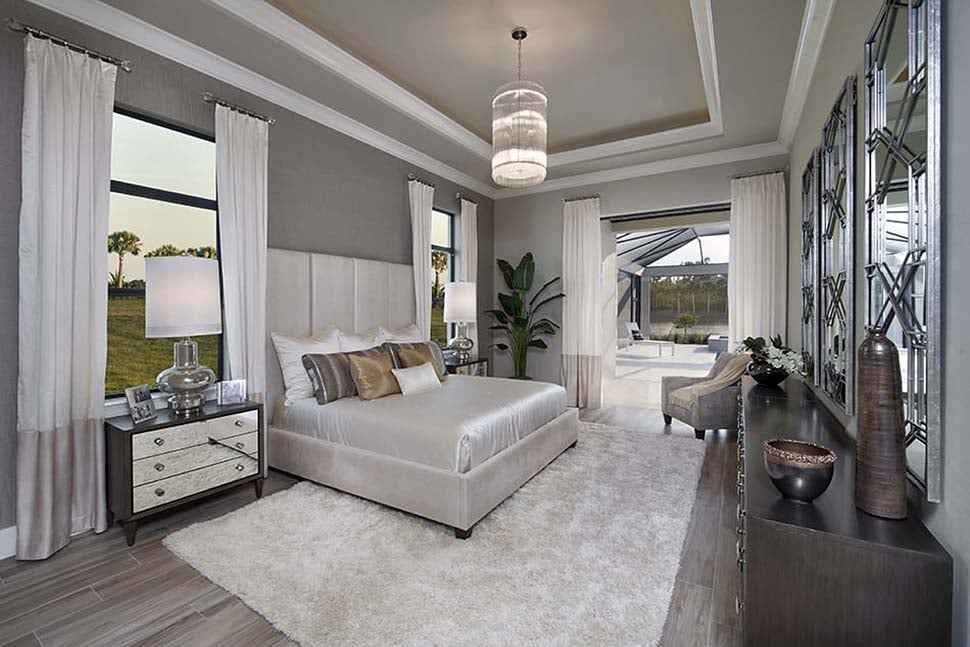

The master bedroom measures 13'8" x 21', so there is enough space for a sitting area. Glass doors provide quick access to the lanai and lots of natural light for the room. No need to clutter up the space with dressers because you have double walk-in closets!

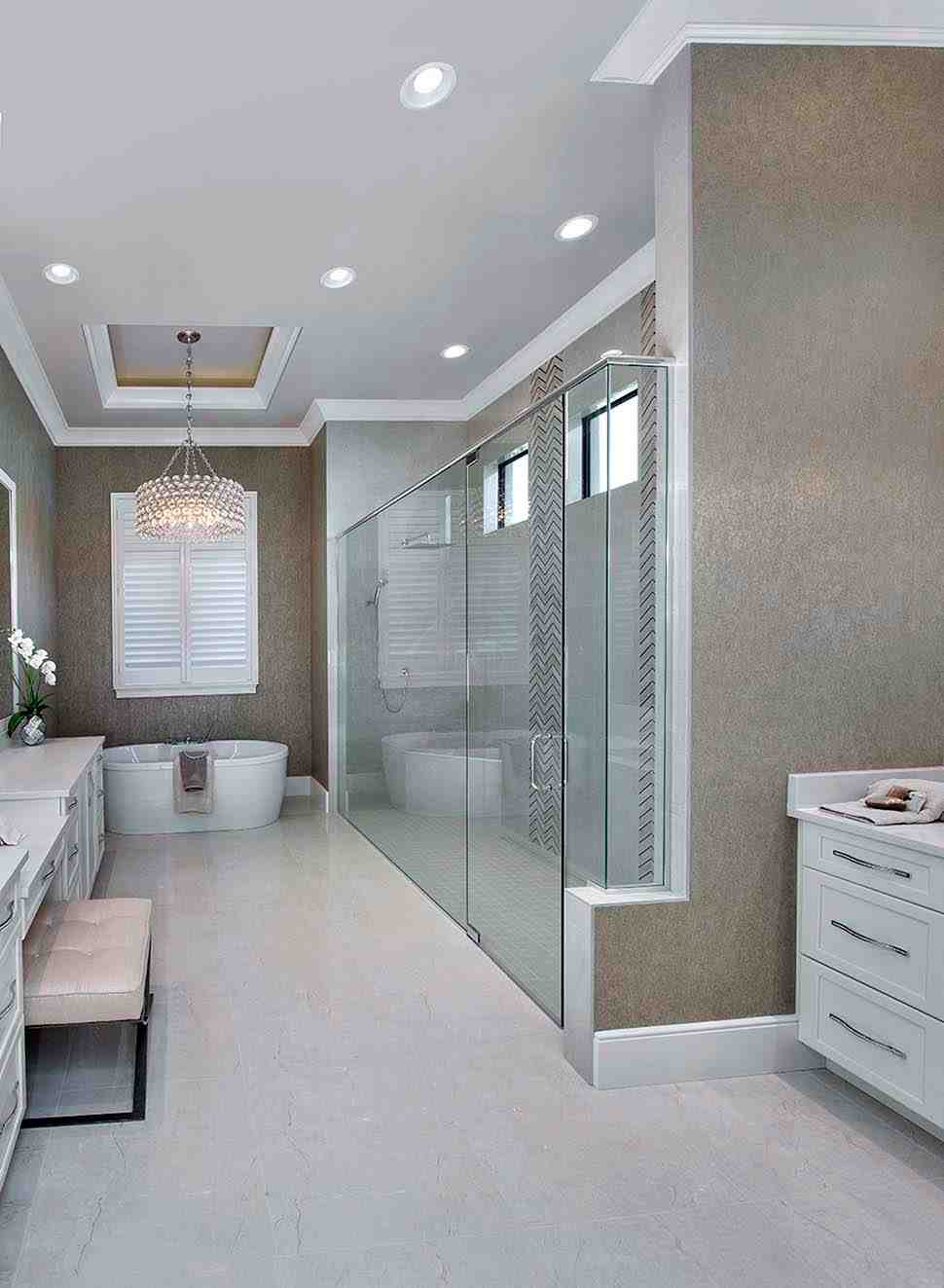

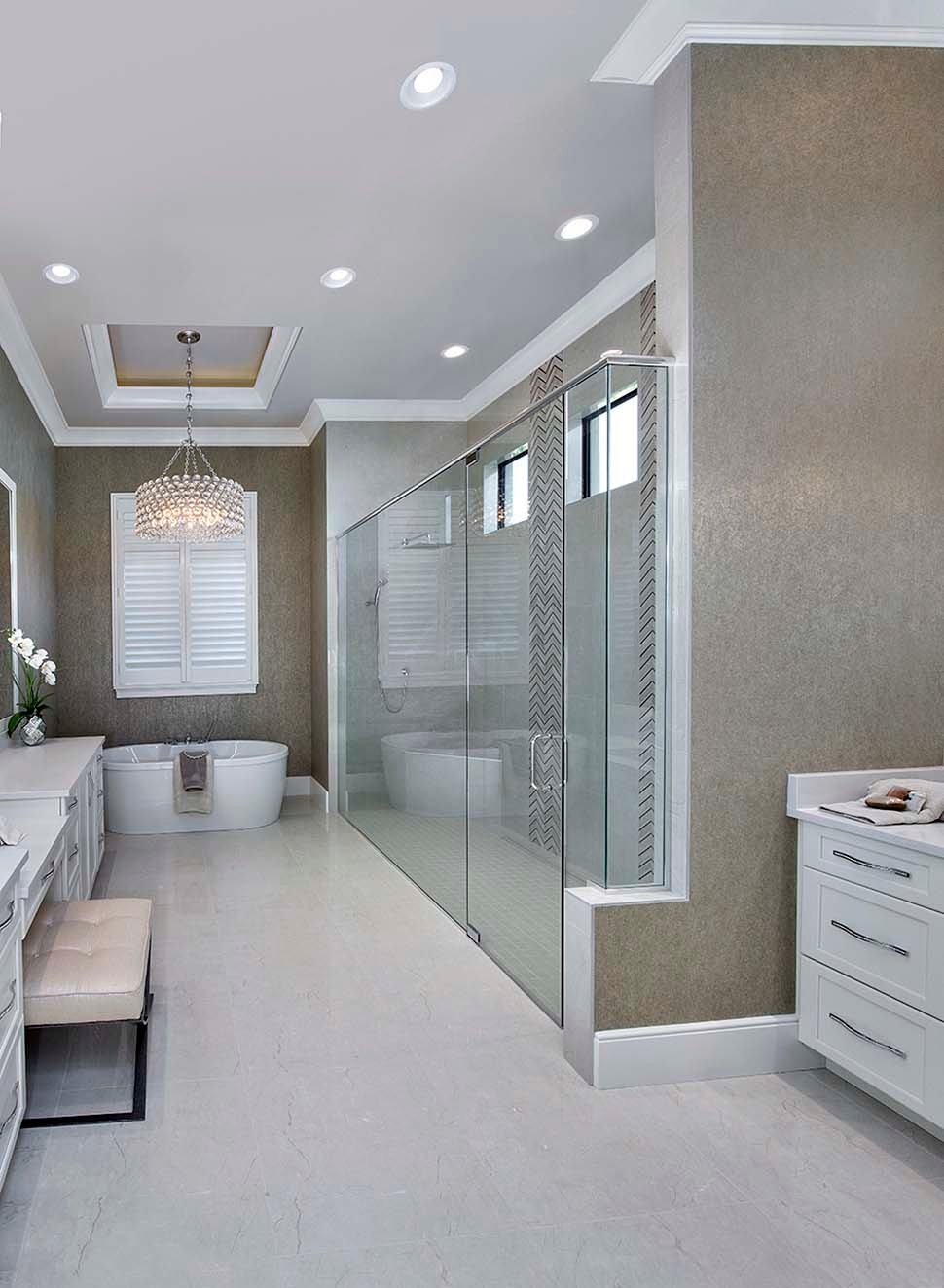

The master ensuite is luxurious with a long counter, two sinks, large shower, free-standing tub and beautiful finishes.
Other features included in this one-story coastal style design floor plan: a study/library, optional wet bar, a spacious laundry room with work counters and utility sink, and an oversized, three car garage.
What's Included?
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators
Floor Plans:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Sizes
Electrical Layouts:
*Building Section Markers
*Electrical Outlets, Fixtures and Switching
Slab Plan:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Rough-in Plumbing Location (if applicable)
*Mechanical Equipment Locations (if applicable)
*Electrical Locations (if applicable)
Roof Design Plan:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers
Building Sections:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated
Typical Wall Sections:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness
Miscellaneous Notes and Details:
*Miscellaneous General Notes
*Stairway Details (if applicable)
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Thanks for the inquiry. The house plan can be built in zip code 33904. Enjoy your evening.
A: Hello, The plans show the locations of the A/C condensers and AHU but don’t show supply/return vents or ducting. The rear closet is 8’8” x 6’6” and the front closet is irregular but is roughly 8’8” x 6’10” minus the linen closet. If one larger closet is needed and the other smaller is ok the wall between the two closets can easily be shifted one way or the other to accomplish this. Thanks.
A: Hello…dimensions are below…please let me know if you have additional questions. Thanks for your inquiry. Master Bath: Room size is 17’-4”x11’-8”; shower is 10’-0”x3’-8” Bath 2: Room size is 5’-6”x9’-4”; shower is 5’-6”x3’-0” Bath 3: Room size is 5’-4”x9’-4”; shower is 5’-4”x3’-0” Bath 4: Room size is 9’-4”x6’-8”; shower is 3’-0”x6’-8” Powder: 5’-6”x6’-4” Pool Bath: 8’-4”x3’-4”
A: How large is the kitchen island in your plan? 9’8” x 5’ Can you tell me what are the dimensions of the master closets 6’10 x 8’8” and 6’6” x 8’8”?
A: Yes, thanks.
A: Good afternoon. The ac air handler is located in a recess in the garage ceiling. The air conditioning units are outside on A/C pads on the left side of the garage. The tankless water heater is located adjacent to the service door also on the left side of the garage. Please let me know if you have additional questions.
A: Yes this house can be built in Jacksonville, FL. Thank you for your inquiry.
A: No, this is a one pour, monolithic slab foundation. Please call for a modification quote or see if your builder can make that change in the field.
A: This house plan is designed with block exterior walls. We designed this as a model for a local builder so it cannot be built in Lee or Collier County. We can, however, provide you with the builder’s info to discuss further with them. Please let me know if you have other questions.
A: Thanks for your inquiry. Since we work closely with builders in Lee and Collier County, we put this restriction on all of our plans as a safeguard. So, when a customer is interested in these locations, it prompts a phone call to our office so we can confirm whether the restriction applies or not. I hope this information is helpful.
A: Pantry dimensions: 6’4” x 5’4” Laundry dimensions: 12’6”x 7’ The pool shown on the rendering is conceptual only. The size of the pool deck would depend on the lot size and setback requirements.
A: Yes...there are 2. One in the master bathroom water closet and one in the laundry room behind the door.
A: No we do not have photos of this house plan built.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.

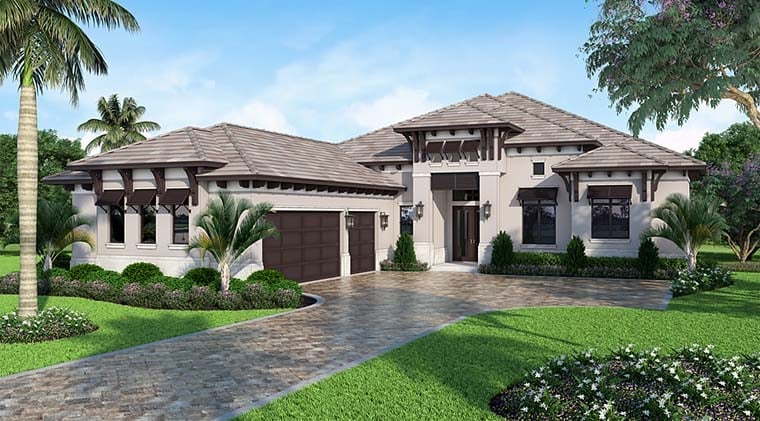

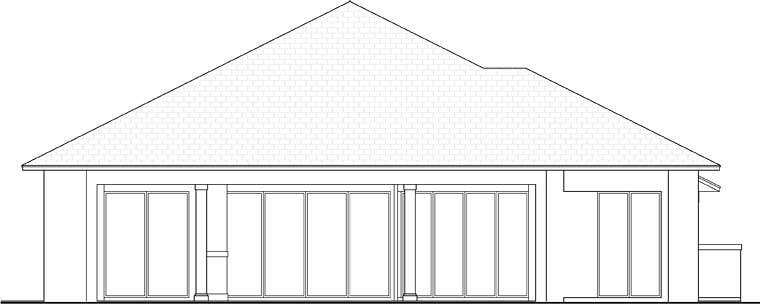

Elevation

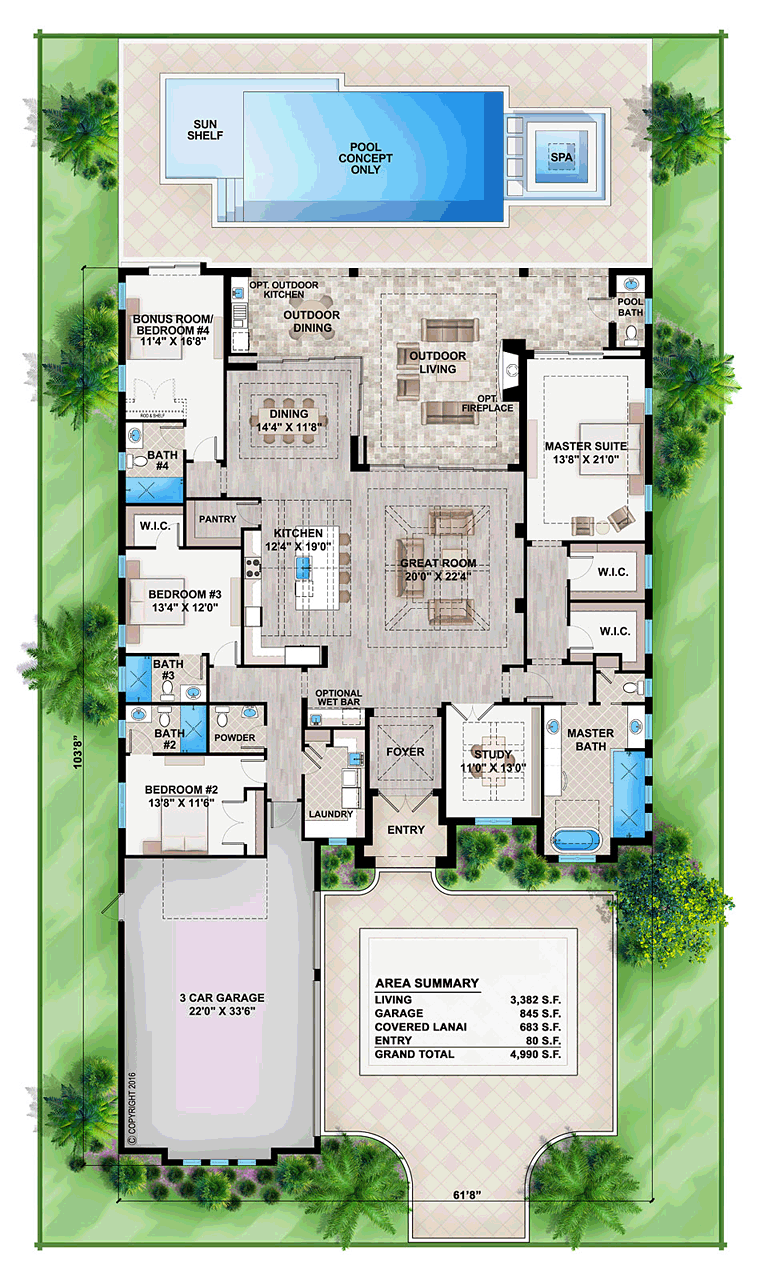

Level One
