House Plan 52966
New Contemporary House Plan | A Modern Home Design | Florida Style at 3083 sq ft | Plan 52966
sq ft
3083beds
3baths
3.5bays
2width
66'depth
101'Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3083 sq ft |
| Lower Living Area: | 3083 sq ft |
| Garage Area: | 495 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Stem Wall Slab |
| Exterior Walls: | 2x4 - * $437.50 2x6 - * $437.50 2x8 - * $437.50 Concrete |
| House Width: | 65'2 |
| House Depth: | 100'2 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 17'4 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
| Porch: | 402 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 11'0 |
Special Features:
Plan Description
New Contemporary House Plan | A Modern Home Design | Florida Style at 3083 sq ft
This 1-story modern house plan features 3 bedrooms 3.5 bathrooms and 2 car garage in a 3083 sq ft Contemporary design. Its design includes a slab foundation, concrete block walls and a flat roof. Other amenities include a great room, kitchen with double islands and an outdoor living space. The master bedroom suite includes a walk-in closet, dual sinks, freestanding tub and a shower. This house plan is 65’2" wide, 100’2" deep and 17’4" high. Outdoor area has a summer kitchen and covered LanaiWhat's Included?
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators
Floor Plans:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Sizes
Electrical Layouts:
*Building Section Markers
*Electrical Outlets, Fixtures and Switching
Slab Plan:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Rough-in Plumbing Location (if applicable)
*Mechanical Equipment Locations (if applicable)
*Electrical Locations (if applicable)
Roof Design Plan:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers
Building Sections:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated
Typical Wall Sections:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness
Miscellaneous Notes and Details:
*Miscellaneous General Notes
*Stairway Details (if applicable)
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: I'm sorry, no, we do not sell study sets. Please let me know if there are other questions. Enjoy your day.
A: Good morning. We put this disclaimer on all of our plans to protect any agreements we may have with local builders and developers so thank you for checking. This house plan can be built in Lee and Collier counties. Thanks for your inquiry. Enjoy your day.
A: Good afternoon. Here are the dimensions for the master bath: The total length is 18’ (front to rear) and the total width is 16’ (side to side) The shower is 6’-2” x 4’-0” The tub space is 6’-0” x 4’-4” The water closet is 5’-6” x 4’-0” The vanity is 8’-0” long The closet space is 18’-0” x 5’-0”
A: Our plans include all 4 elevations and a typical wall section. I hope this answers your question. Enjoy your weekend.
A: Thanks for your inquiry. It’s a flat deck roof with ¼” roof pitch. Note on plan for roof finish is attached, the material selected can be substituted with yours or your builders preference with an equal or better material. Please let me know if you have other questions. Enjoy your day.
A: I personally try to avoid flat decks if possible and would rather see a shallow 4:12 pitch if that works for the client and what they want for their front elevation. Leaks can be more of an issue with them and if electrical, plumbing or HVAC run through the shallow flat trusses or framing and there is an issue with them you may need to remove some of the ceiling to access the problem where a pitched roof allows accessible spaces in the attic. That said some people prefer a modern look with flat roofs and choose to go that rout and if all is done right there should not be any issues. Flat decks installed by a builder and roofing contractor experienced in flat decks will most likely not have issues and will hold up fine, but the safer rout in my opinion is a pitched roof. Thank you.
A: Hello We do not include the structural aspect in the plans due to the fact that each site should have it’s own site specific engineering consider all site, weather, local requirements and other factors. A structural drawing based on our drawings should be provided by a certified structural engineer licensed in the area where the home will be built. We exclude any structural aspects from our plans so there is no confusion or conflict between our plans and the engineering. We include 1 – typical wall section and 1 – cut through building section. Thank you.
A: This roof is a flat deck, we recommend a Built Up Roofing (tar and membrane) or PVC Membrane systems per manufacturer specs.
A: This house have 11’; 12’ and 13’ ceilings, interior walls are same, 11’;12’ and 13’ high. And regarding roof soffits they are different sizes, but most of house is 12”
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.

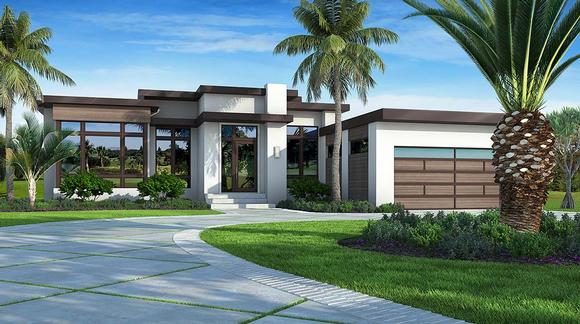

Elevation

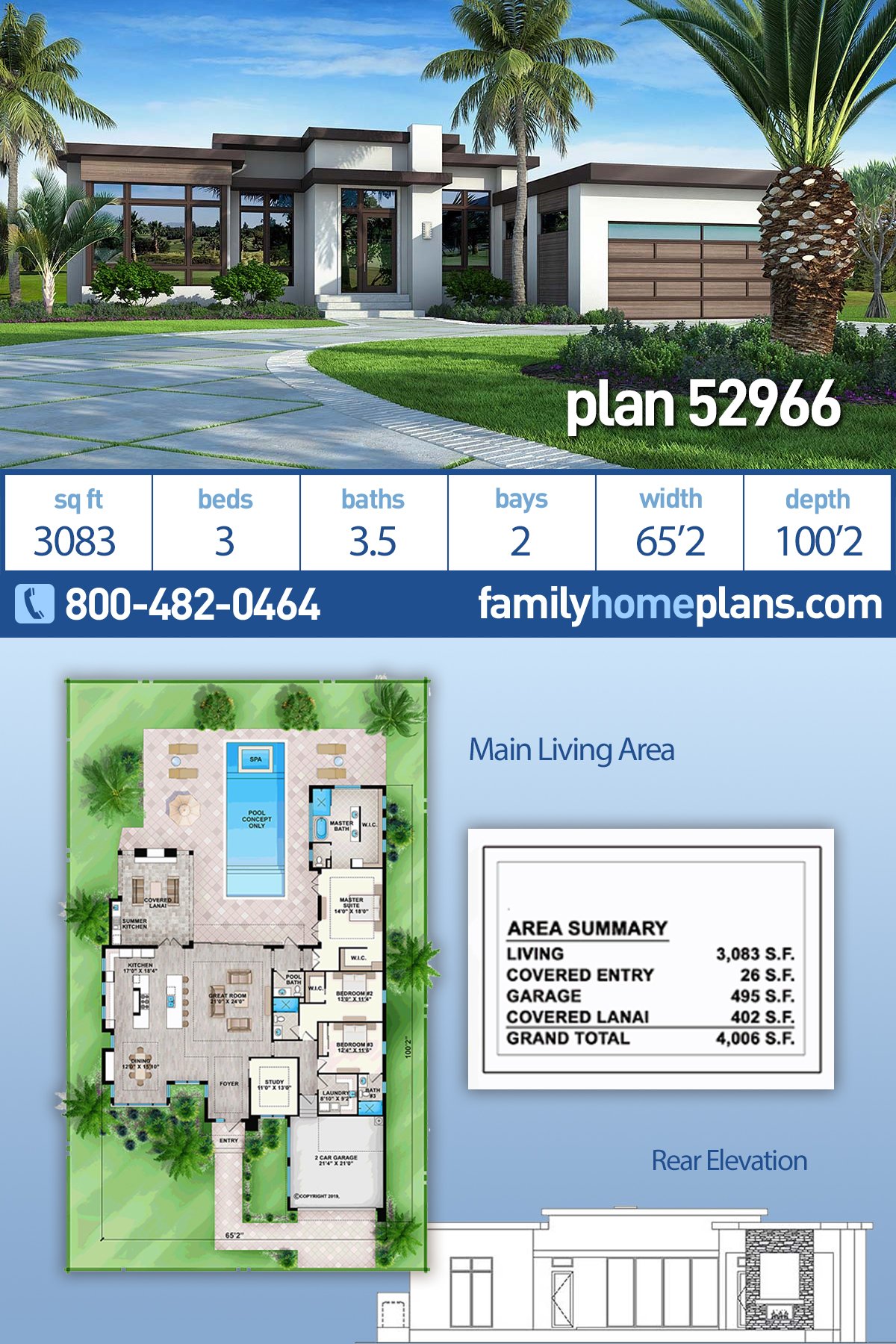

Level One
