House Plan 55718
One-Story Style, 1769 Sq Ft, 4 Bed, 3 Bath, 2 Car | Plan 55718
sq ft
1769beds
4baths
2.5bays
2width
40'depth
60'Click Any Image For Gallery
Plan Pricing from $1,150.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1769 sq ft |
| Main Living Area: | 1769 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | Concrete |
| House Width: | 40' |
| House Depth: | 60' |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Primary Roof Pitch: | 0 |
| Roof Load: | 55 psf |
| Roof Framing: | Truss |
| Porch: | 66 sq ft |
| 1st Floor Master: | Yes |
Plan Description

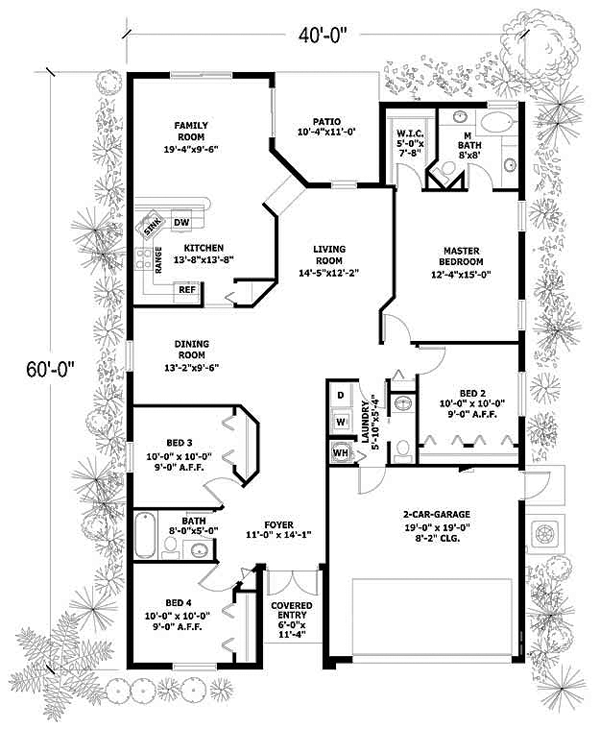

2239 sq. ft. total under roof Covered Front Entry Open Foyer Dining Room Living Room Kitchen with snack bar open to Family Room with access to Rear Patio Master Bedroom with walkin closet Master Bath with whirlpool tub and split vanities Secondary bedrooms with 9 ft ceilings.
