House Plan 55786
Mediterranean Style, 5642 Sq Ft, 5 Bed, 6 Bath, 3 Car | Plan 55786
sq ft
5642beds
5baths
6bays
3width
77'depth
107'
Click Any Image For Gallery
Plan Pricing from $1,800.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 5642 sq ft |
| Main Living Area: | 2882 sq ft |
| Upper Living Area: | 2760 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | Concrete |
| House Width: | 77' |
| House Depth: | 107' |
| Number of Stories: | 2 |
| Bedrooms: | 5 |
| Full Baths: | 6 |
| Primary Roof Pitch: | 0 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 694 sq ft |
| Formal Dining Room: | Yes |
Plan Description
Mediterranean Style, 5642 Sq Ft, 5 Bed, 6 Bath, 3 Car
Italian, Mediterranean Style House Plan 55786 with 5642 Sq Ft, 5 Bed, 6 Bath, 3 Car GarageWhat's Included?

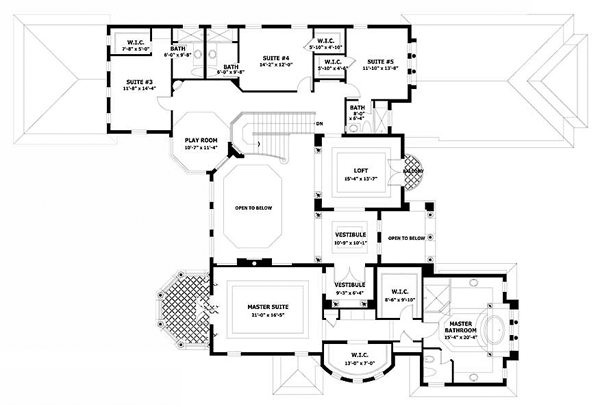

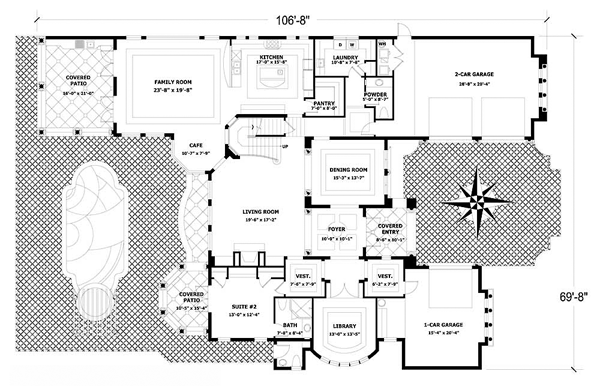

Floor Plan
