Multi-Family Plan 73451
Traditional Style, 2515 Sq Ft, 4 Bed, 4 Bath, 4 Car | Plan 73451
sq ft
2515beds
4baths
4bays
4width
68'depth
55'
Click Any Image For Gallery
Plan Pricing
Additional Notes
Main Floor: Unit A: 1263 Unit B: 1252Bedrooms: 2 ea. unit
Bathroom: full 2 ea. unit
Garage Stalls: 2 ea. unit
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2515 sq ft |
| Main Living Area: | 2515 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 4 |
| Foundation Types: | Basement Crawlspace - * $395.00 Slab - * $395.00 |
| Exterior Walls: | 2x6 |
| House Width: | 68 |
| House Depth: | 55 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 47 psf |
| Roof Framing: | Truss |
| Porch: | 114 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9 |
Plan Description

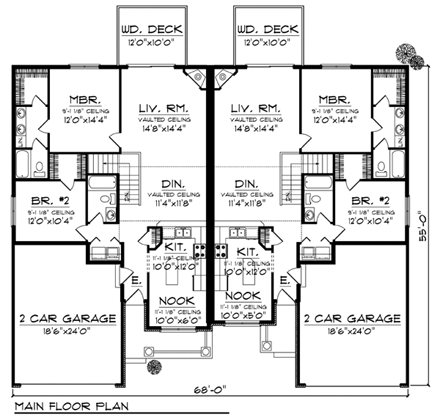

This traditional ranch duplex was designed with two identical units and a front façade with a curb appeal that would be welcomed in most any neighborhood. As you enter the unit, you will find a kitchen/nook area with a breakfast bar that overlooks the main dining area. A vaulted ceiling ties the living and dining rooms together and provides volume for the main living area. The master bedroom suite features a walk-in closet and dual sinks, while the second bedroom also has a walk-in closet and the guest bath right outside the door. Additional amenities include a main floor laundry, wood deck and two-car garage.
What's Included?
Foundation and Floor Plans at 1/4" = 1'0" scale.
Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.
Building Sections and Details as required to construct the individual design.
Interior Elevations of Cabinets at 1/4" = 1'0" scale.
Roof Plans
Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.
General Specifications design notes.
Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Previous Q & A
A: I’m sorry, we do not have a present image of the basement since it’s unfinished. It is the same footprint as the main floor.
A: Its 22’-0”.
A: No there is no brick rowlock on the side or rear elevations. It is all siding.
A: It currently does not, the kitchen and nook have an 11’ flat ceiling.
A: All of our plans are designed with trusses. Please let me know if you have any other questions.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
