House Plan 76330
Craftsman Style, 1770 Sq Ft, 3 Bed, 3 Bath, 2 Car | Plan 76330
sq ft
1770beds
3baths
2.5bays
2width
60'depth
38'
Click Any Image For Gallery
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1770 sq ft |
| Main Living Area: | 1205 sq ft |
| Upper Living Area: | 565 sq ft |
| Unfinished Basement Area: | 1205 sq ft |
| Garage Area: | 549 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace - * $425.00 Slab - * $425.00 Stem Wall Slab - * $425.00 |
| Exterior Walls: | 2x6 |
| House Width: | 59'4 |
| House Depth: | 37'4 |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 27'7 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Load: | 55 psf |
| Roof Framing: | Truss |
| Porch: | 32 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Plan Description
This rustic-looking chalet derives its charm from the use of stone, wood and timber accents in the exterior finish. This, plus a roofline reminiscent of a mountainous horizon make this an ideal vacation property or scenic estate house. In addition to the handsome exterior, one is pleasantly surprised to discover an interior that is very efficient and extremely liveable. The enclosed foyer can be accessed through either the main entrance or the garage. Beyond the foyer, the living room provides many visual treats – a cathedral ceiling, a partial view of the mezzanine railing on the second floor, and finally, one is drawn to a generous hearth where all may gather. The great room adjoins another social hub, a great sized kitchen, complete with island for work or visiting. An informal dining area with banquette seating has ample room for eight and is placed to take advantage of the many windows. Both areas share easy access to a huge deck. On the main floor, one also finds the convenient master suite, including walk-in closet and master bath which is able to accommodate a soaker tub, separate shower, and double vanity. Upstairs, one finds two generous bedrooms, a full bathroom and computer or reading nook on the mezzanine. An unfinished basement, bonus storage space above the garage, and double garage ensure ample space for all of your recreational equipment and family storage.
What's Included?
-4 elevations
-Foundation plan

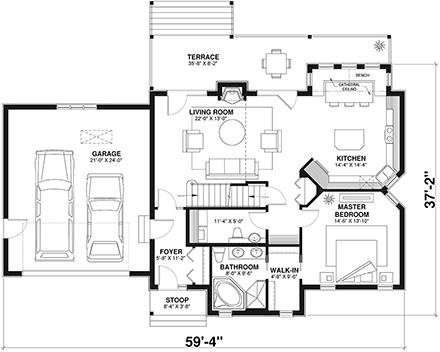

-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section
NOT included:
-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans
What's included in our house plans detail
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
Modifications
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: Good day, The bonus space above the garage is accessed via a latter or pull-down stairs Thanks Jessica
A: The laundry area is on the far wall of the main floor powder room behind folding doors (you can locate it between the entrance foyer closet and the staircase)
Please let me know if you have any other questions or comments.
A: Good day and thank you for taking the time to write
The roof pitch is 10/12 and these are scissor trusses.
Please let me know if I can further assist you.
A: The mechanical plans for plumbing and heating are not available as these installations are left to the local professionals, who would be your best source of information pertaining to your home.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
