House Plan 80519
Cabin Style, 1037 Sq Ft, 2 Bed, 2 Bath | Plan 80519
sq ft
1037beds
2baths
2bays
0width
32'depth
46'
Click Any Image For Gallery
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1037 sq ft |
| Main Living Area: | 768 sq ft |
| Upper Living Area: | 269 sq ft |
| Unfinished Basement Area: | 768 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Basement Crawlspace Stem Wall Slab Walkout Basement |
| Exterior Walls: | 2x6 |
| House Width: | 31'6 |
| House Depth: | 45'6 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 2 |
| Max Ridge Height: | 26'0 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Stick |
| Porch: | 288 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
Special Features:
Plan Description
Contemporary House Plan with Walk-Out Basement
Contemporary House Plan 80519 has 1,040 square feet of living space. The master suite is privately located on the top level, and one more bedroom is on the main floor. Plus, you have a potential 3rd bedroom when you choose to finish the walkout basement. Walkout basements add value to your home by providing an outdoor living space that's separate from the rest of the house. They're also perfect for entertaining guests because they allow you to step outside without having to leave the comfort of your home.
Contemporary House Plan With Window Wall

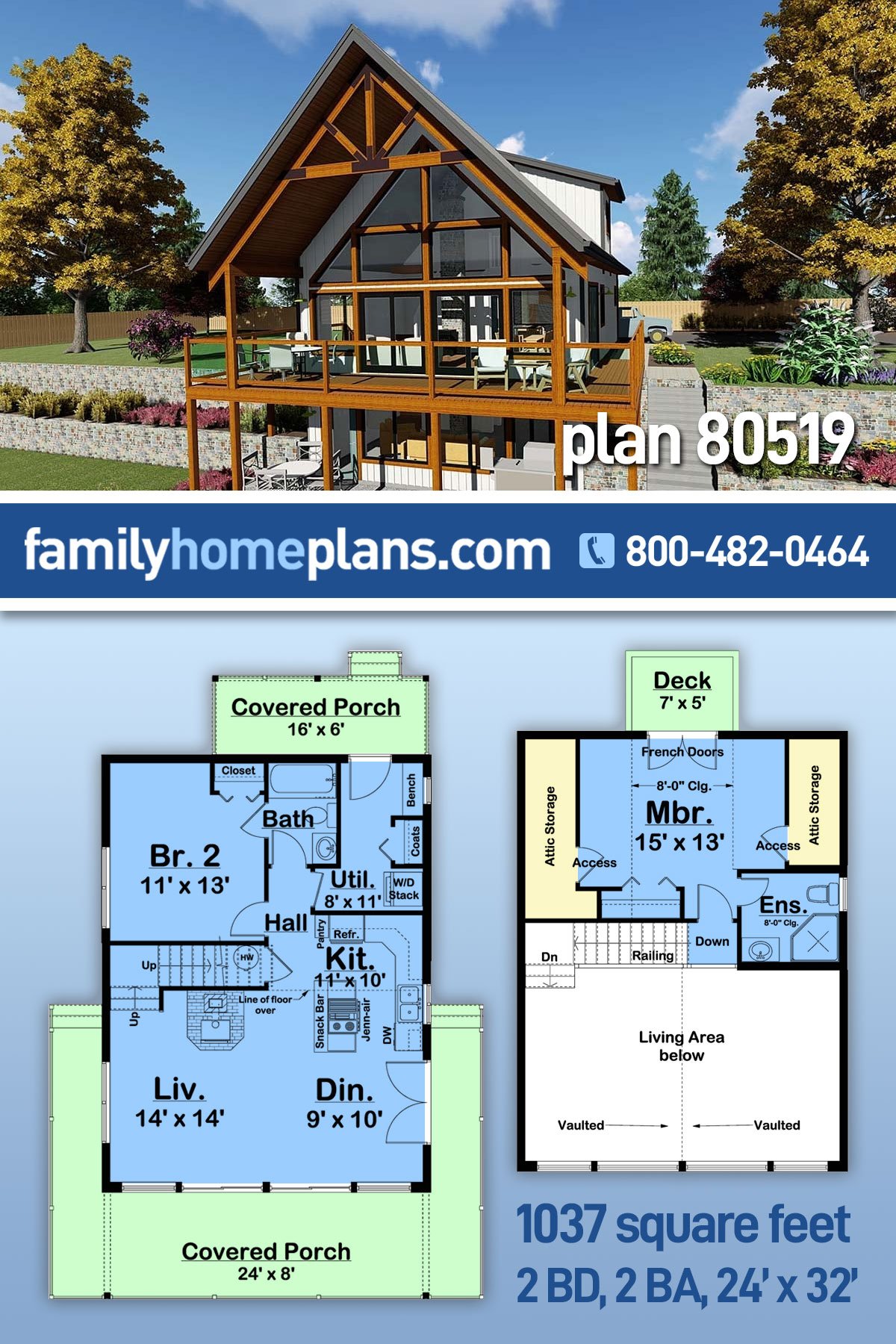

This A-frame style home plan features a window wall that overlooks an expansive covered porch. Sunlight floods the interior because the window wall is two stories tall. Orient this home so that you can enjoy a picturesque view from your open living space. Dining room and living room span the front of the home. Exit to the deck through the French doors. Open two sets of sliding glass doors to allow fresh air inside your home. The covered porch measures 24' wide by 8' deep, and it's the perfect place to grill and dine outside. Furthermore, the porch wraps around two sides of the home, so you can always move your chair to the shady side on a hot summer day.
The kitchen has a large island with snack bar. Guests will perch on a barstool and chat while you finish up meal preparation. Continue down the hallway, and there is a utility room including a stacked washer and dryer, coat closet, and bench seating. The back door leads to another covered porch which measures 16' wide by 6' deep. When family enters through this door, they can leave boots and bags in these convenient storage areas. Built-in organization is a favorite for busy families, and it keeps the clutter down in the rest of the home.
2-3 Bedroom A-Frame House Plan
Contemporary House Plan 80519 has a large master suite in the loft. Mom and Dad will love having the top floor all to themselves. When they open the bedroom door, they have a wonderful view through the tall windows on the house. The landing and staircase is completely open to the living area below. However, there is plenty of privacy inside the master suite. The bedroom measures 15' wide by 13' deep, and French doors open to a little deck. The couple will never forget nights spent sitting on this deck and gazing at the stars! Lots of storage is available from this bedroom when you count the attic space on each side.
Bedroom 2 is on the main floor, and it includes a door for quick access to the guest bathroom. Proceed downstairs to reach the walkout basement level. Labelled as "future" space, this means you can leave the basement unfinished during construction and then finish it later when your budget allows. Either way, the basement adds value to your property. It can be made into a game room or used for storage. Bedroom 3 and another bathroom is outlined in the back.
What's Included?
Exterior Elevation
Detailed Floor Plans
Foundation Plan
Stair Details
Location of Electrical, Plumbing and Heating Fixtures
Cover Sheet
Full Cross Section showing ceiling height and wall details
Roof Plan
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: The structure is designed to support loads of 40 lbs psf live load & 15 lbs psf dead load, but there are components that require design and review by a local structural engineer i.e. engineered parallel chord scissor trusses, engineered beams and engineered front gable end truss. The plan thus requires review by a local structural engineer.
A: Yes for the walkout basement, in ground basement or crawlspace. No for The Slab foundation
A: The plan specifies the roof to be Engineered Trusses so NO suggested snow load is noted. The Truss company will supply the Snow load for the specific location of the actual build which can be different even within a city, if the house is built up a mountain or down in a valley.
A: We just show the sizes, the windows you choose are sourced locally by you or your contractor.
A: Main level is 768 Upper 272 Total 1040 If you choose the basement foundation that area is 768 more Thank you
