House Plan 80617
Traditional Style, 2052 Sq Ft, 4 Bed, 3 Bath, 2 Car | Plan 80617
sq ft
2052beds
4baths
2.5bays
2width
53'depth
55'
Click Any Image For Gallery
Plan Pricing from $1,100.00
Plan Pricing
Designer sends a PDF via email to each customer that orders a 5 or 8 set package.
Plan Options:
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2052 sq ft |
| Main Living Area: | 1366 sq ft |
| Upper Living Area: | 686 sq ft |

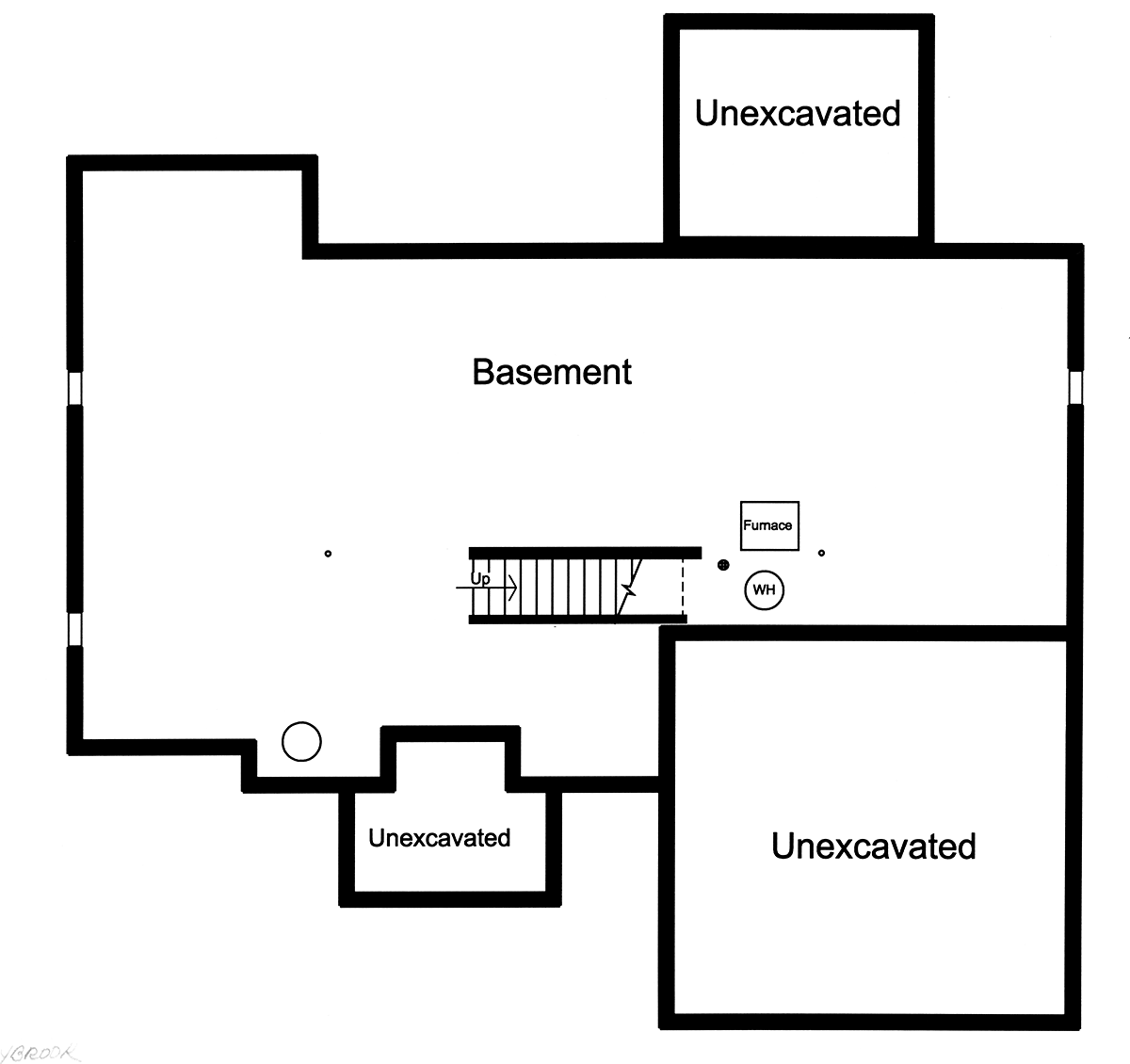

| Unfinished Basement Area: | 1366 sq ft |
| Garage Area: | 430 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace - * $300.00 |
| Exterior Walls: | 2x4 |
| House Width: | 53'0 |
| House Depth: | 55'0 |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 24'6 from Front Door Floor Level |
| Primary Roof Pitch: | 9:12 |
| Roof Load: | 47 psf |
| Roof Framing: | Truss |
| Porch: | 257 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
| Vaulted Ceiling: | Yes |
| Tray Ceiling: | Yes |
Special Features:
Plan Description
European Style Cottage House Plan

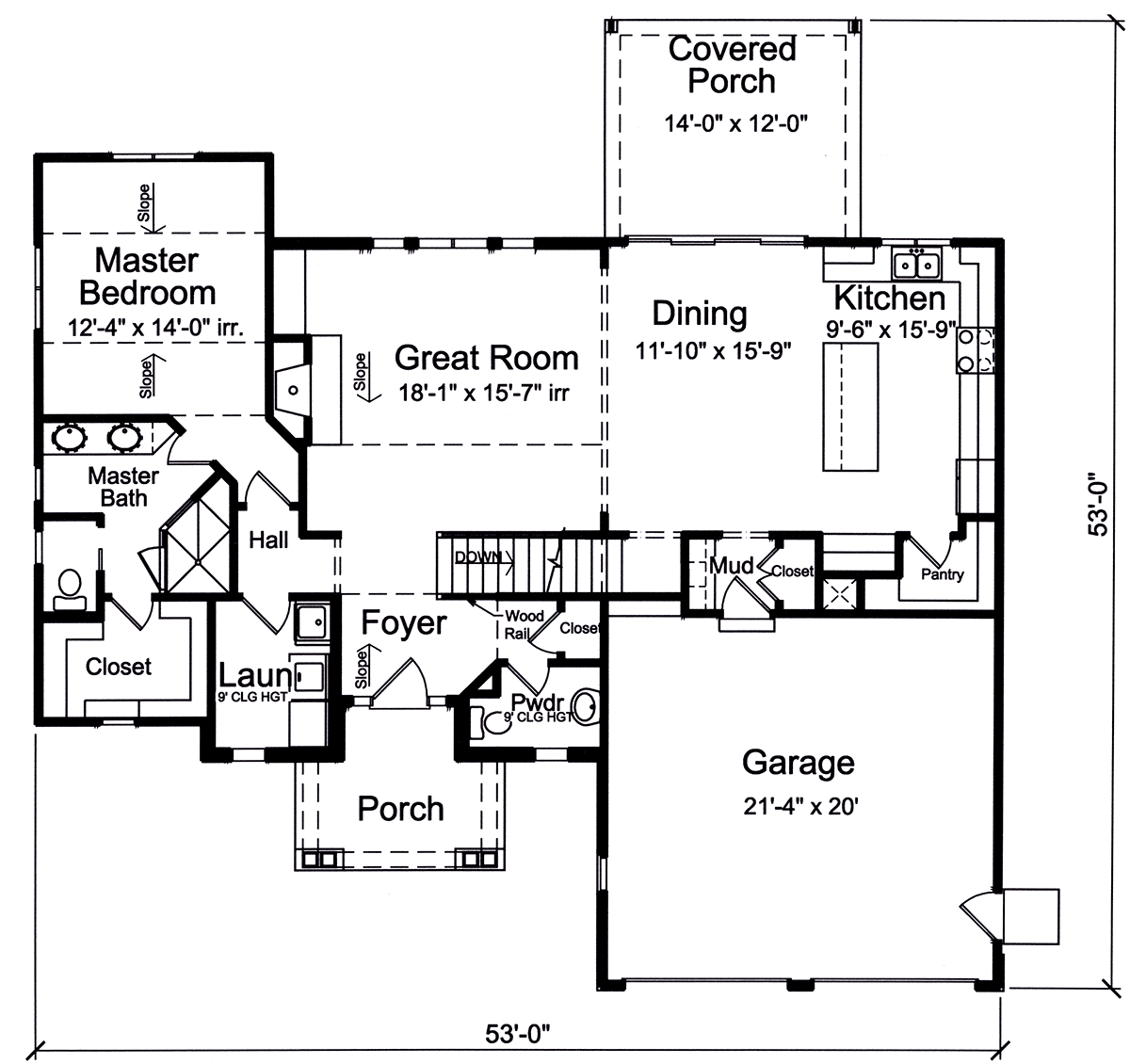

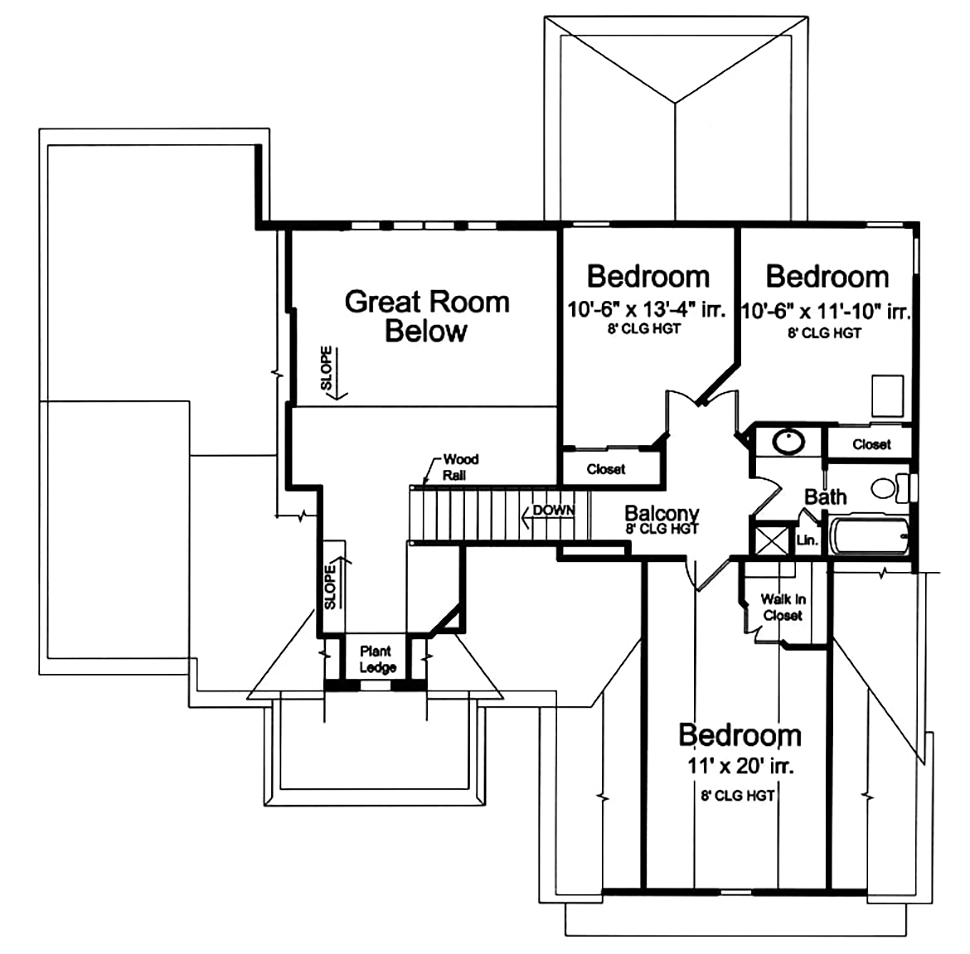

This home with a First Floor Master Bedroom Suite showcases a European Cottage look. Stone and vertical Siding decorate the exterior while the Great Room, Dining Area and Kitchen offer the much desired open floor plan, views to the rear yard and access to a Covered Porch. The Great Room enjoys the warmth of a gas fireplace and the island with seating defines the Kitchen. A walk-in pantry aids in kitchen storage and a mud room at the garage helps maintain order. The location of the Laundry Room is intended to offer convenience to the Master Bedroom. The Master retreat enjoys a double bowl vanity, shower enclosure, commode room and walk-in closet.Three additional second floor bedrooms complete the finished living space and a full unfinished basement adds storage or expanded living space.
What's Included?

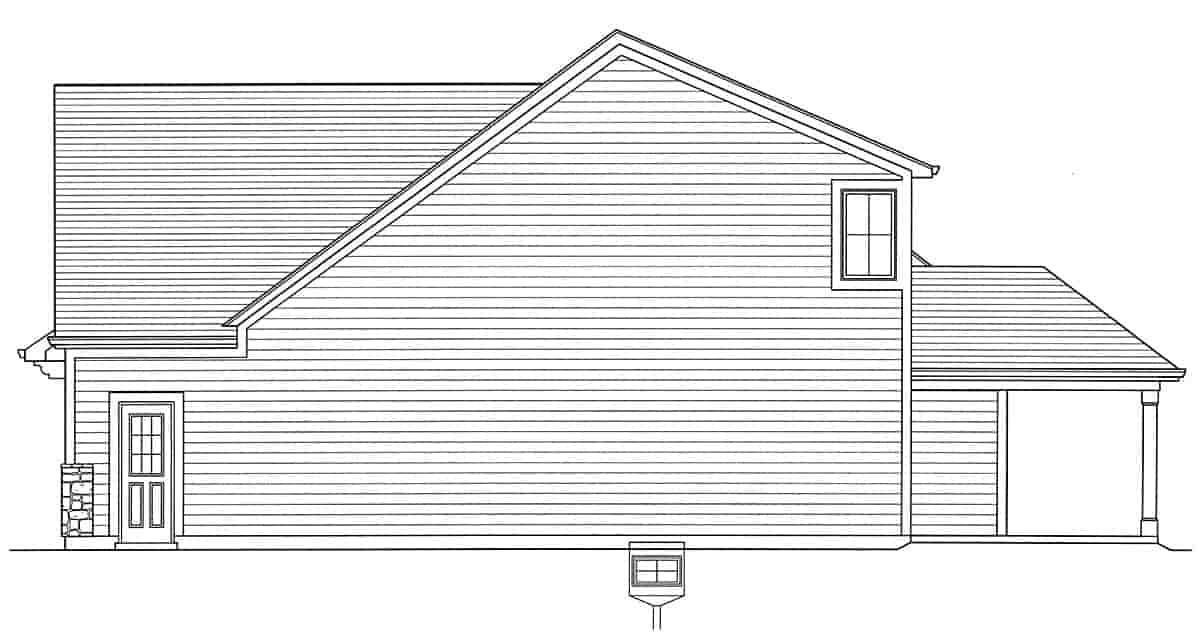

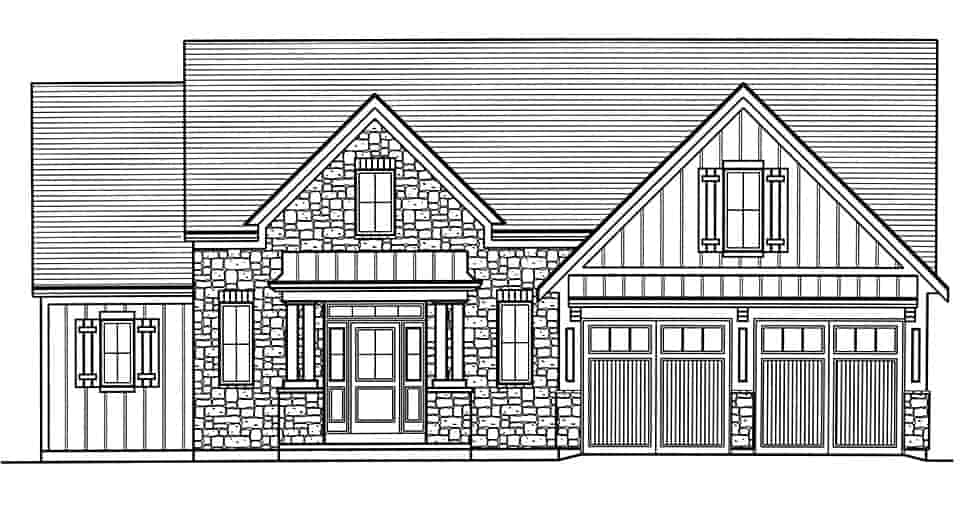

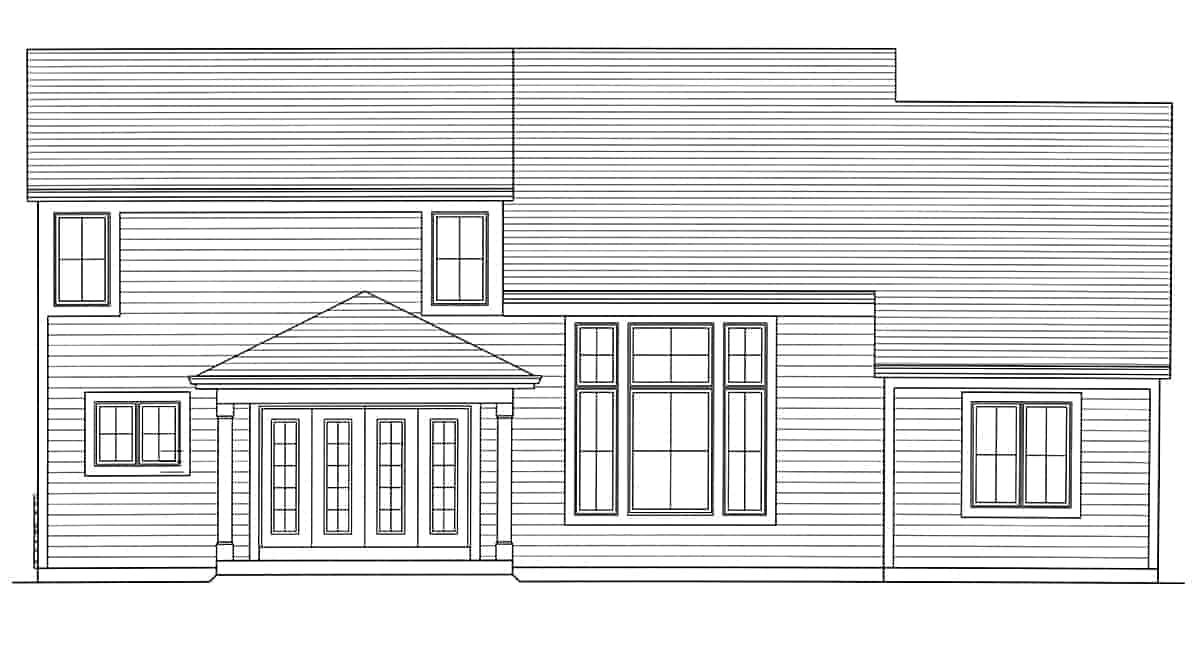

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details: Foundation reinforcing detail show size of footing and foundation wall, size and spacing of rebar. Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights. Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available. Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing. Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point. Fireplace detail shows how the fireplace is to be built. Wall section show typical framing detail of house. Most exterior walls are 2x4s; except where wall height requires 2x6s.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details: Foundation reinforcing detail show size of footing and foundation wall, size and spacing of rebar. Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights. Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available. Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing. Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point. Fireplace detail shows how the fireplace is to be built. Wall section show typical framing detail of house. Most exterior walls are 2x4s; except where wall height requires 2x6s.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
