Quick Specs
522 Total Living Area522 Upper Level
1 Bedrooms, 1 Full Baths
3 Car Garage
42'0 W x 27'0 D
Quick Pricing
PDF File: $795.005 Sets plus PDF File: $945.00
Plan Pricing from $795.00
Plan Pricing
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 522 sq ft |
| Upper Living Area: | 522 sq ft |
| Garage Area: | 1063 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 42'0 |
| House Depth: | 27'0 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 26'0 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Porch: | 61 sq ft |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9' |
Special Features:
Associated Styles:
Plan Description
Craftsman Garage Apartment Plan 80809 with 522 Sq Ft, 1 Bedroom, 3-Car Garage and Covered Porch
Country Craftsman Farmhouse Garage Apartment Plan 80809 offers 522 square feet of comfortable upper-level living space above an impressive 1,063-square-foot, 3-car garage. Featuring 1 bedroom, 1 full bathroom, a complete kitchen, and a convenient laundry area, this versatile design combines the charm of traditional Farmhouse architecture with the practicality of a private secondary residence. It is an excellent choice for guest accommodations, multigenerational living, or an Accessory Dwelling Unit (ADU) where local regulations permit.The exterior showcases an attractive combination of Country, Craftsman, and Farmhouse influences. Vertical siding, a steep 12:12 roof pitch, and traditional architectural details create distinctive curb appeal. A welcoming 61-square-foot covered front porch adds character while providing a comfortable outdoor space for morning coffee, reading, or relaxing in the fresh air.
The upper-level apartment is designed to make efficient use of its 522 square feet. An open floor plan connects the kitchen, living area, and entertaining space, creating a comfortable setting for everyday activities. Nine-foot ceilings contribute to the spacious atmosphere, helping the compact interior feel bright and inviting.
The kitchen provides a convenient location for preparing meals while maintaining an open connection to the main living area. This thoughtful arrangement makes the apartment suitable for independent daily living, allowing residents to cook, dine, and relax within a comfortable, efficiently organized space.
The private bedroom offers a peaceful retreat separated from the main gathering area, while the full bathroom provides essential everyday conveniences. A dedicated second-floor laundry area adds functionality, allowing residents or overnight guests to maintain their routines without accessing another building.
Below the apartment, the oversized 1,063-square-foot garage provides enclosed parking for three vehicles. Its generous dimensions also create valuable opportunities for storing lawn equipment, recreational gear, tools, and seasonal belongings. Nine-foot ceilings on the garage level contribute to the building's practical utility.
The slab foundation offers a straightforward construction approach, while the compact residential footprint makes this plan appealing for homeowners who want to expand their property's usefulness. The separate living quarters may accommodate visiting relatives, adult family members, or a potential rental arrangement, subject to local zoning, permitting, and occupancy requirements.
With its classic Craftsman Farmhouse appearance, spacious 3-car garage, independent apartment, and inviting covered porch, Plan 80809 provides an attractive combination of parking, storage, and comfortable residential accommodations. Our talented team can assist with modifications to personalize the design for your property.
Better Living by Good Design.
What's Included?
View Sample Plan
Sample Plan may not actually be Plan 80809. It is just an example of this designer's contruction documents.
Cover Sheet – May include index, front view of home, definitions, etc.Foundation Plan – Typically includes dimensioned foundation plan with footing details.

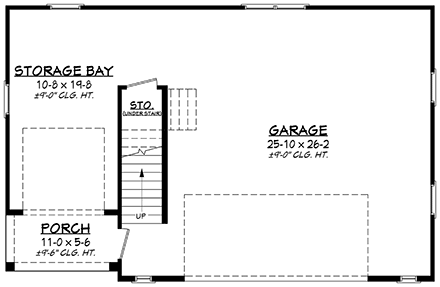

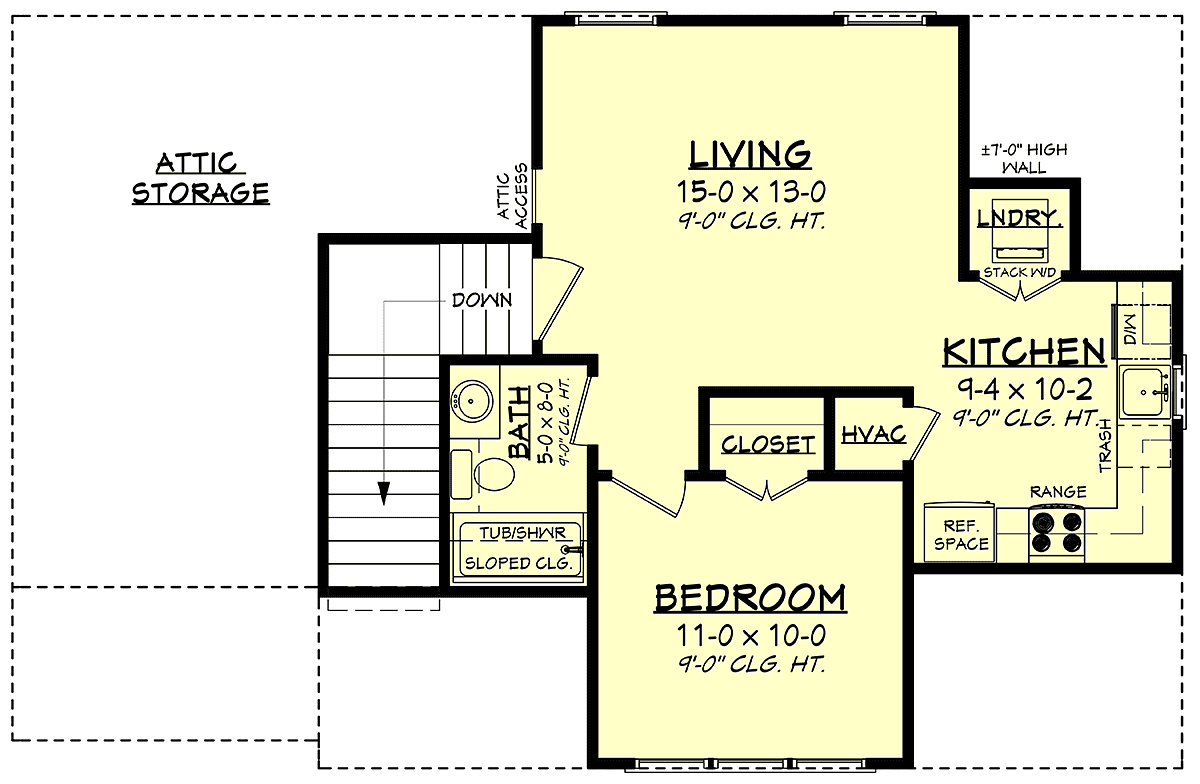

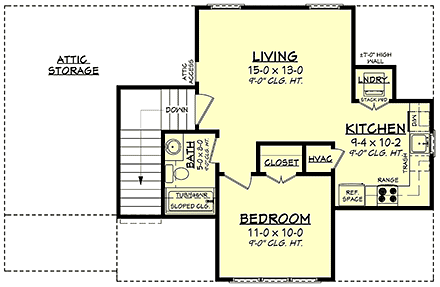

Dimensioned Floor Plan – Electrical may be shown.

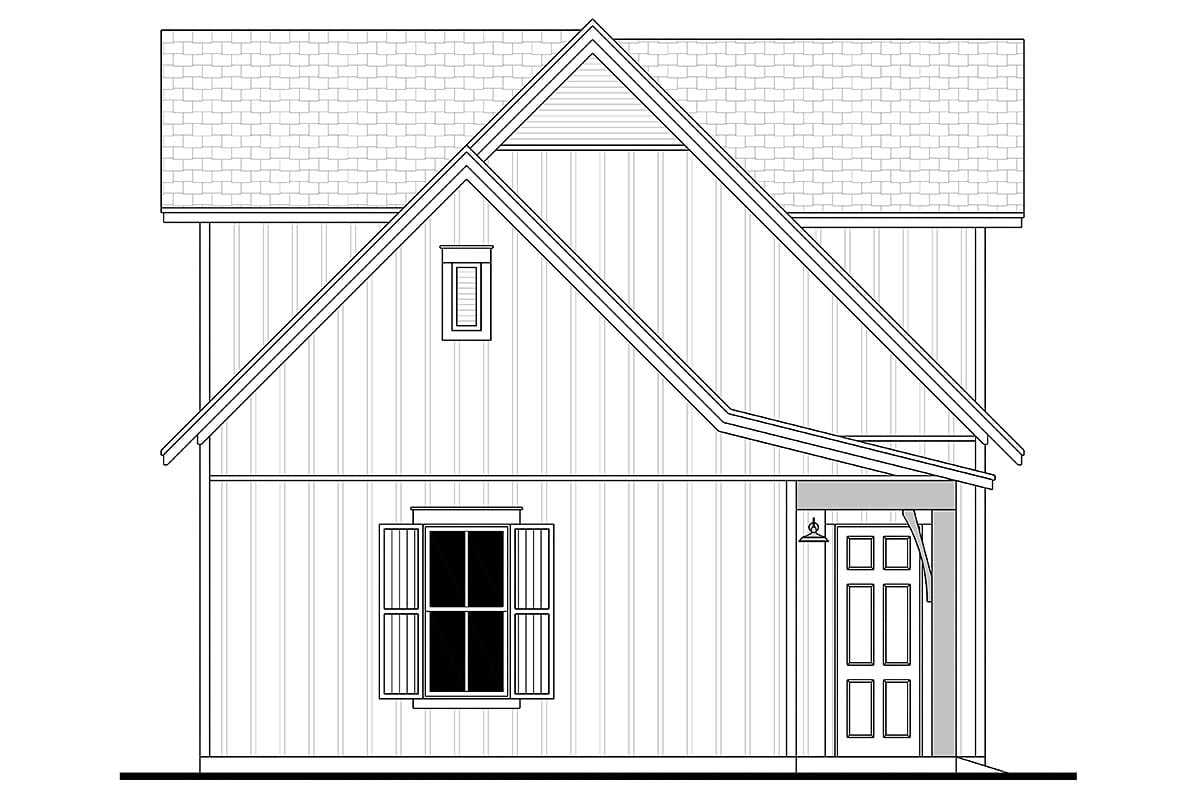

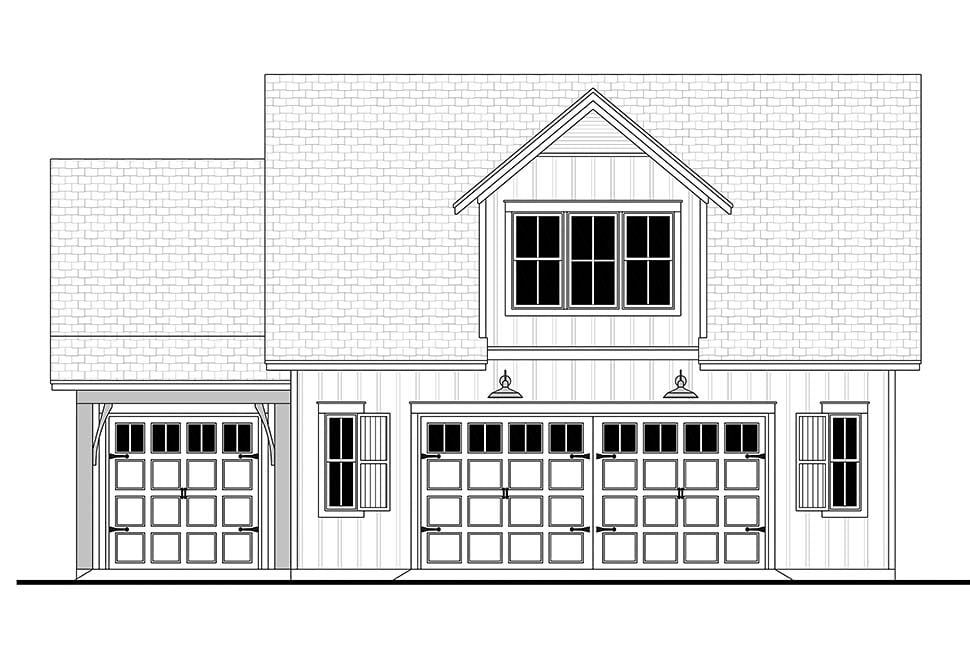

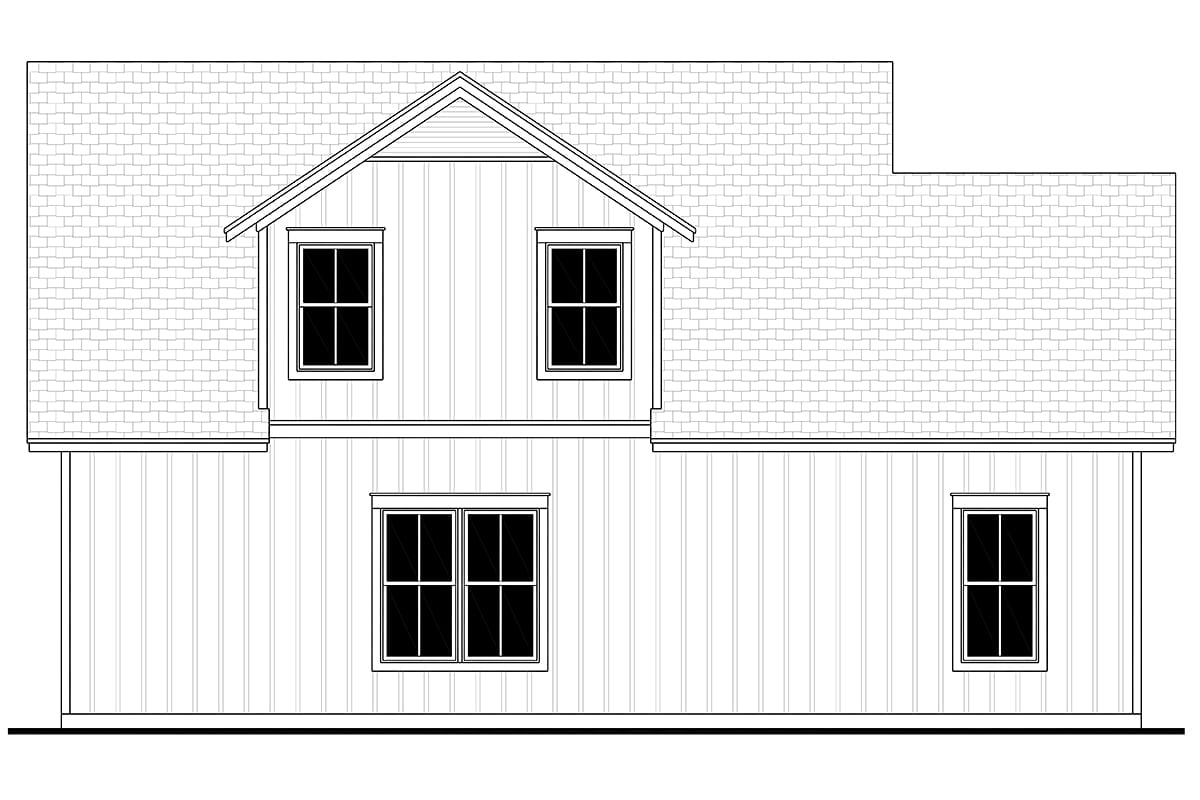

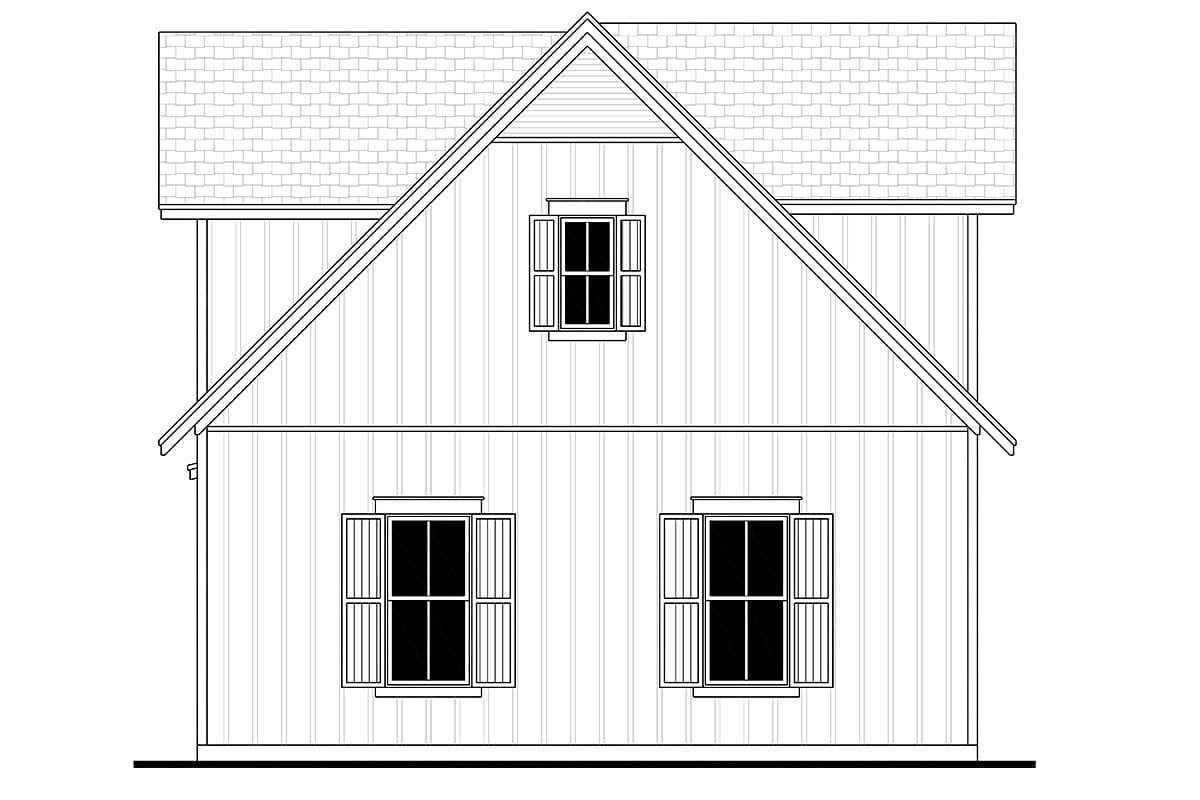

Exterior Views – Four exterior views of the residence with other miscellaneous details.
