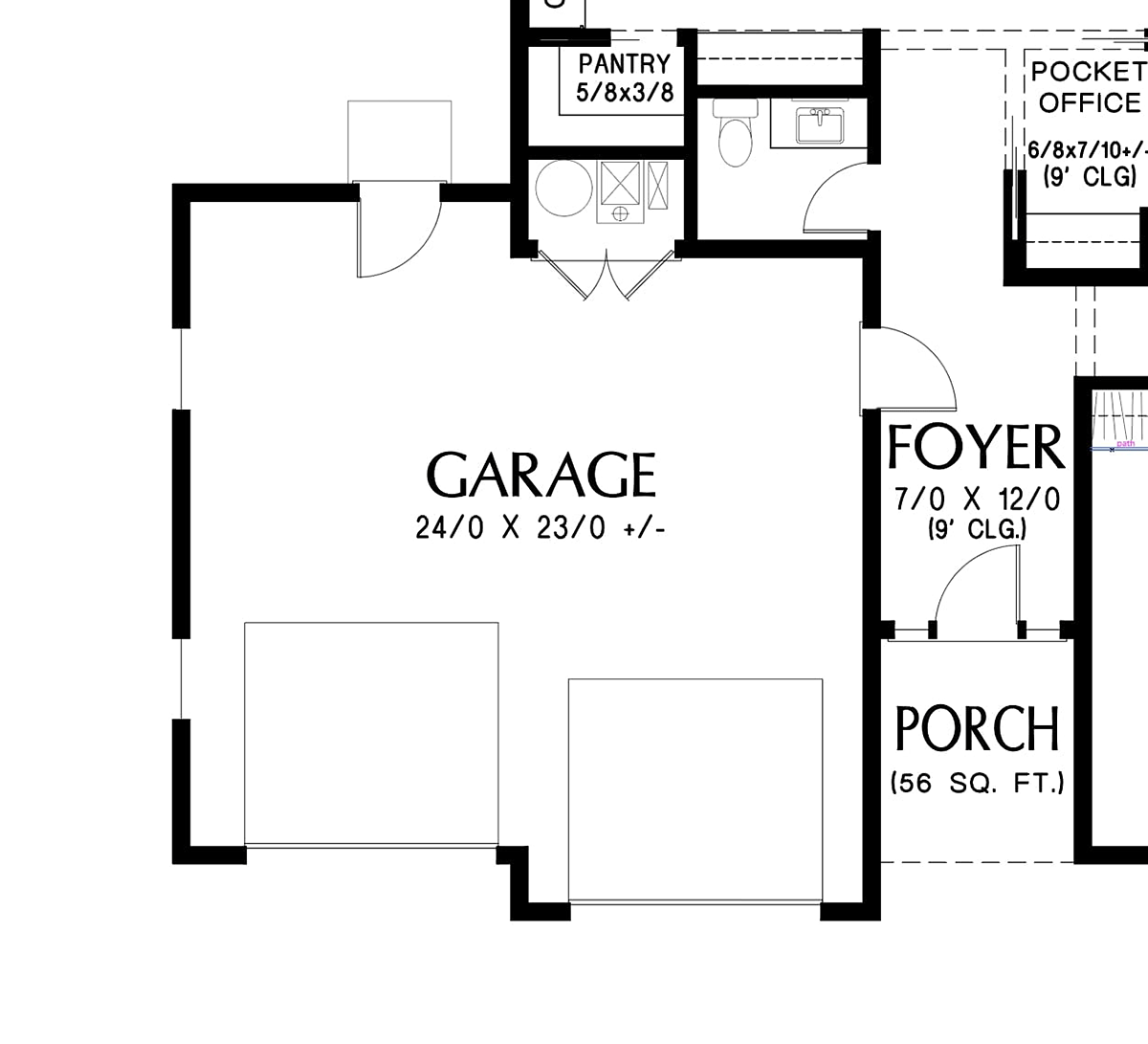

Second bay makes a 587 sf. garage. Width of home becomes 62 ft.
Plan Options:
Two Car Garage Option: $262.50
Available Foundation Types:
Basement
: $508.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Basement - * $508.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab
Exterior Walls:
2x6
House Width:
50'0
House Depth:
58'0
Number of Stories:
1
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Max Ridge Height:
24'3 from Front Door Floor Level
Primary Roof Pitch:
7:12
Roof Framing:
Truss
Porch:
496 sq ft
FirePlace:
Yes
Main Ceiling Height:
9'
* May require additional drawing time.
Special Features:
Coat Closet
Entertaining Space
Front Porch
Office
Open Floor Plan
Pantry
Rear Porch
Storage Space
Plan Description
New Ranch House Plan With Pocket Office
From the curbside view, New Ranch House Plan 83543 has the simple style of the classic ranch home. However, when you walk inside, you will find a unique and updated floor plan. The amenities will appeal to various homeowners because the design has so much variety. Enjoy open living space when you want to be social, or close the office doors when you want some privacy. Hang out by the fireplace inside, or commune with nature on the giant back porch. In total, this plan offers 1,971 square feet of living space, 3 bedrooms, 3.5 bathrooms, and a 1 car garage.
New Ranch House Plan With Lots of Windows
New Ranch House Plan 83543 appears with a no-nonsense, vintage ranch front elevation. We love the neutral white color of the exterior walls. They complement the dark wood-grain pattern of the garage door. Choose black window frames and then install brass hardware on the front door to add shine. Look up to the charming dormer with window above the front porch. You will notice that the garage opens into the foyer, and then two hallways branch off of it. One long hallway leads to the bedrooms, and the other hallway goes to the living space.
Natural light beckons you into the living space because of several large glass doors which are topped with upper windows. The living space is massive at 35.5 feet wide by 16 feet deep. On one side we have a fireplace which is surrounded by built-in shelves. Display your latest family vacation photos on these shelves and lounge in a comfy leather sofa. Place a large dining table between the living space and the kitchen to break it up. The kitchen is simple, but it has everything you want. For example, there's a big island and windows surrounding the stove. Plus, we have a walk-in pantry measuring 5'8 wide by 3'8 deep.
Every Bedroom Has a Private Bathroom
This home has a rare perk: each bedroom boasts a private bathroom. Bedrooms 2 and 3 are matching in size, and their bathrooms include walk-in showers. Go back to the primary bedroom and find a unique design. For example, you open the door and pass by two pocket doors to get to the main bedroom. On one side of this walkway is the walk-in closet, and on the other side is the spacious bathroom. The bathroom has a double sink with lots of counter space, tile walk-in shower, and private toilet room. Mom and Dad will also love that the main bedroom has a door leading out to the huge covered back porch!
Don't miss the other functional details in New Ranch House Plan 83543:
Pocket office with sliding corner "door walls." If you leave the sliding doors open, it leaves the walkway very open. Close them to achieve a quiet work space when needed.
Half bathroom in close proximity to the office and living space.
One car garage with dedicated room for mechanicals.
Laundry room off the hallway and two linen closets off the hallway.
Option to purchase the 2 car garage version of this plan.
Option to purchase the basement version of this plan.
What's Included?
Exterior Elevations
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s)

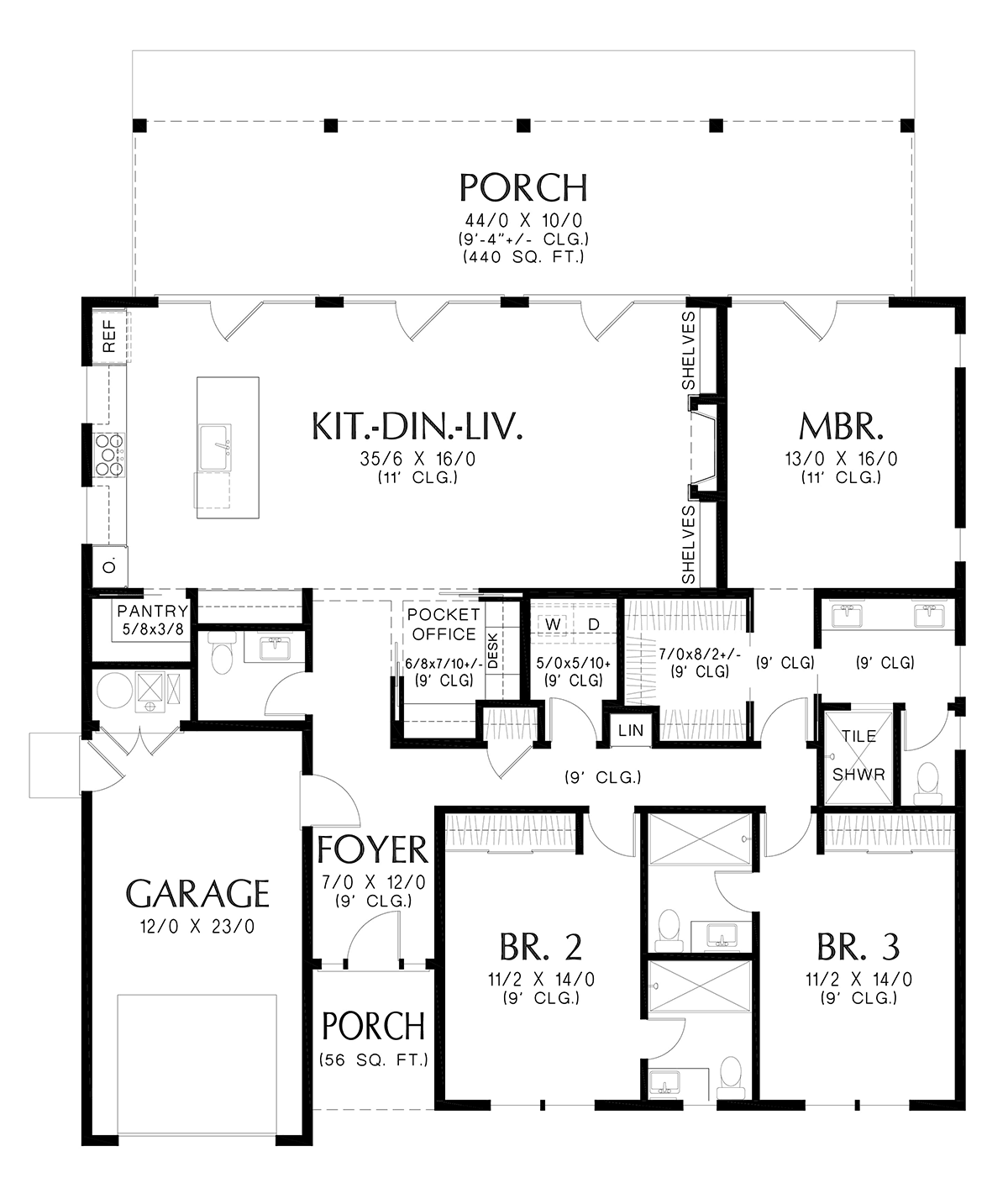

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
