House Plan 84946

• PDF File: $1,499.00
• 5 Sets plus PDF File: $1,749.00
• PDF File Unlimited Build: $2,498.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $2,098.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,097.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $299.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $59.00

Available Foundation Types:

• Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $299.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee
• Walkout Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1982 sq ft
Main Living Area:	1982 sq ft
Garage Area:	1576 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $299.00 Slab Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x6
House Width:	114'4
House Depth:	43'4
Number of Stories:	1
Bedrooms:	4
Full Baths:	2
Max Ridge Height:	18'7 from Front Door Floor Level
Primary Roof Pitch:	2:12
Roof Framing:	Unknown
Porch:	195 sq ft
FirePlace:	Yes
Main Ceiling Height:	12'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space

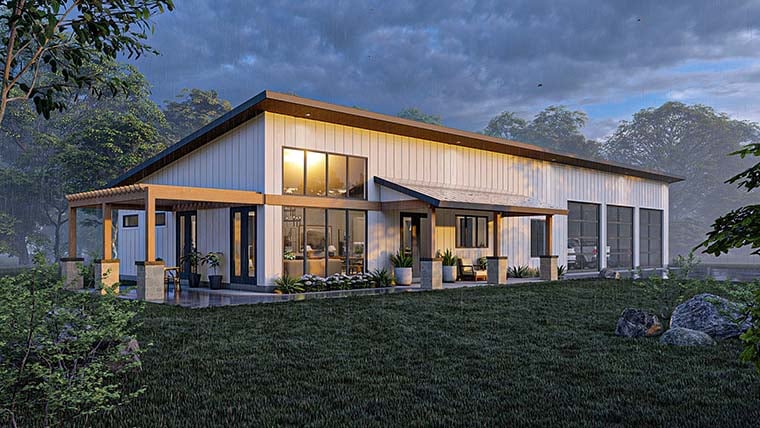

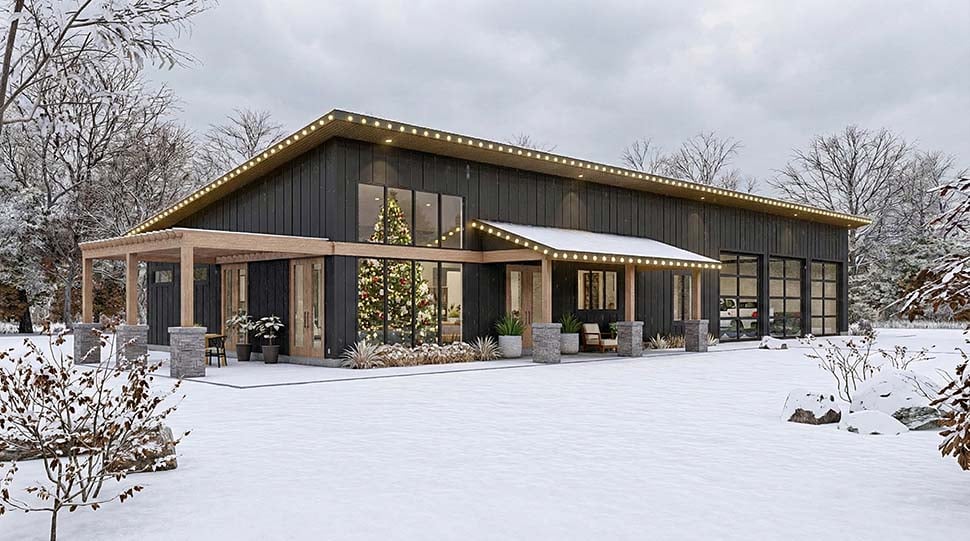

Modern Style Barndominium House Plan

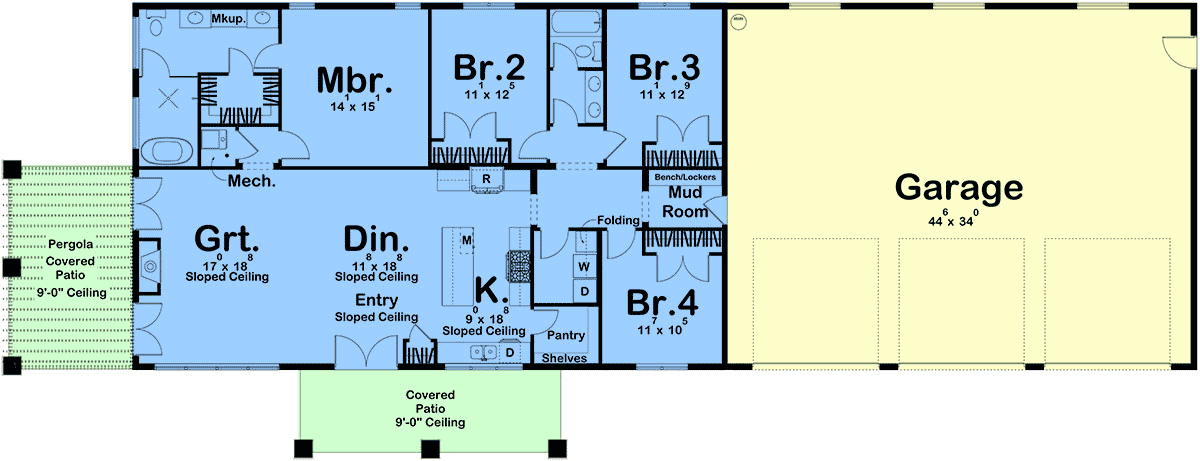

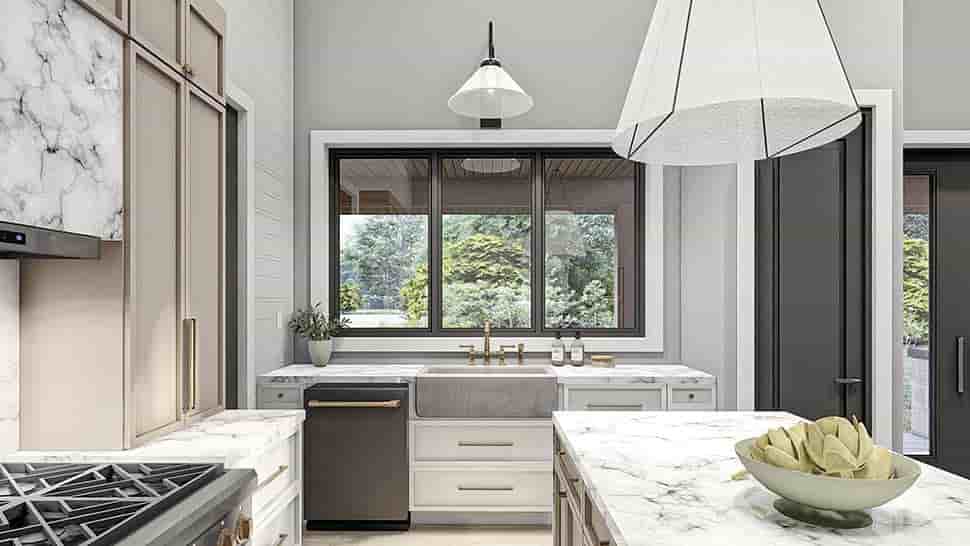

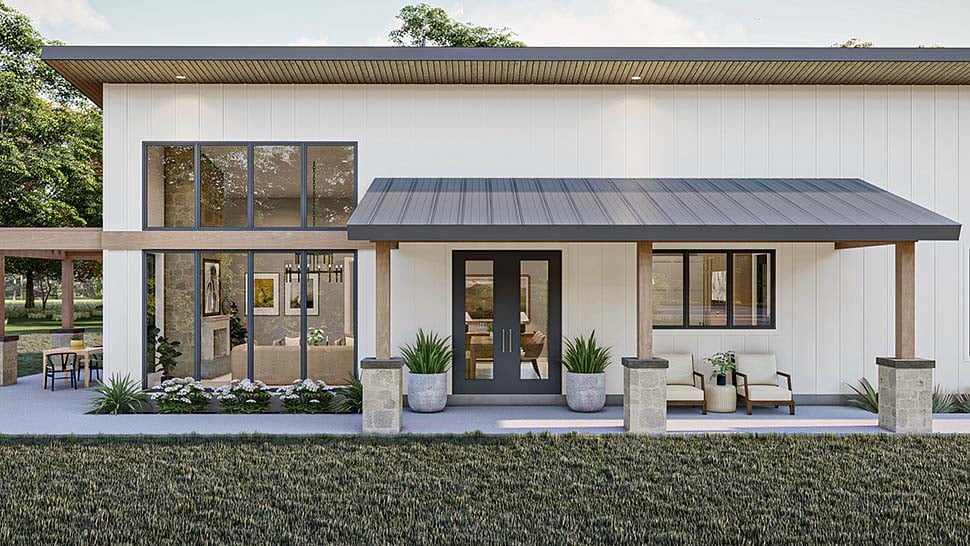

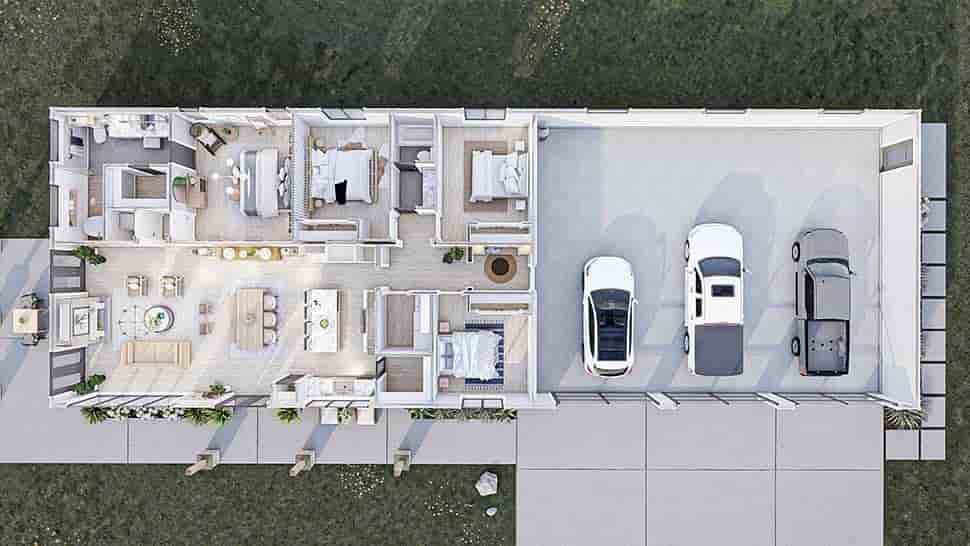

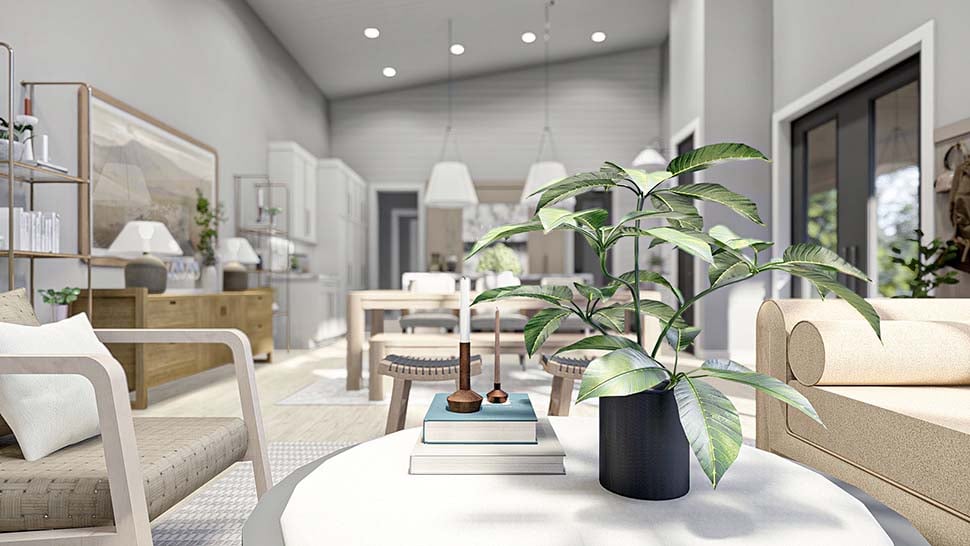

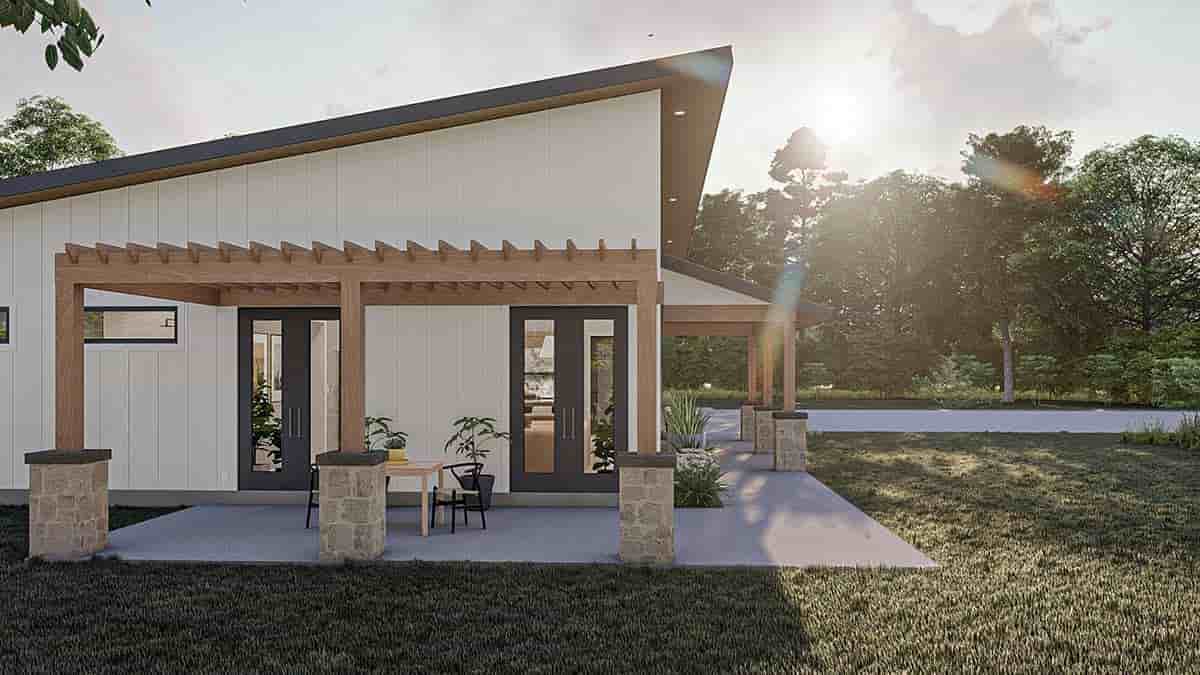

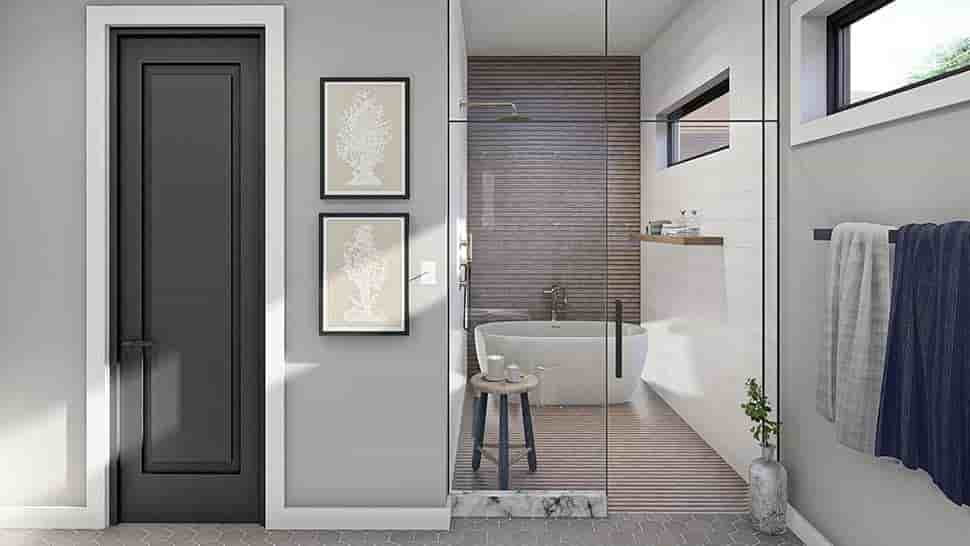

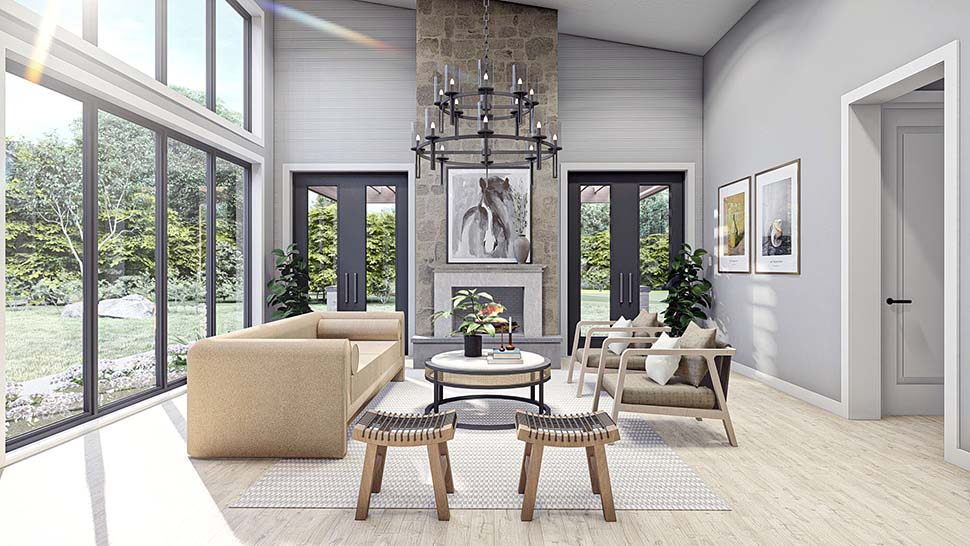

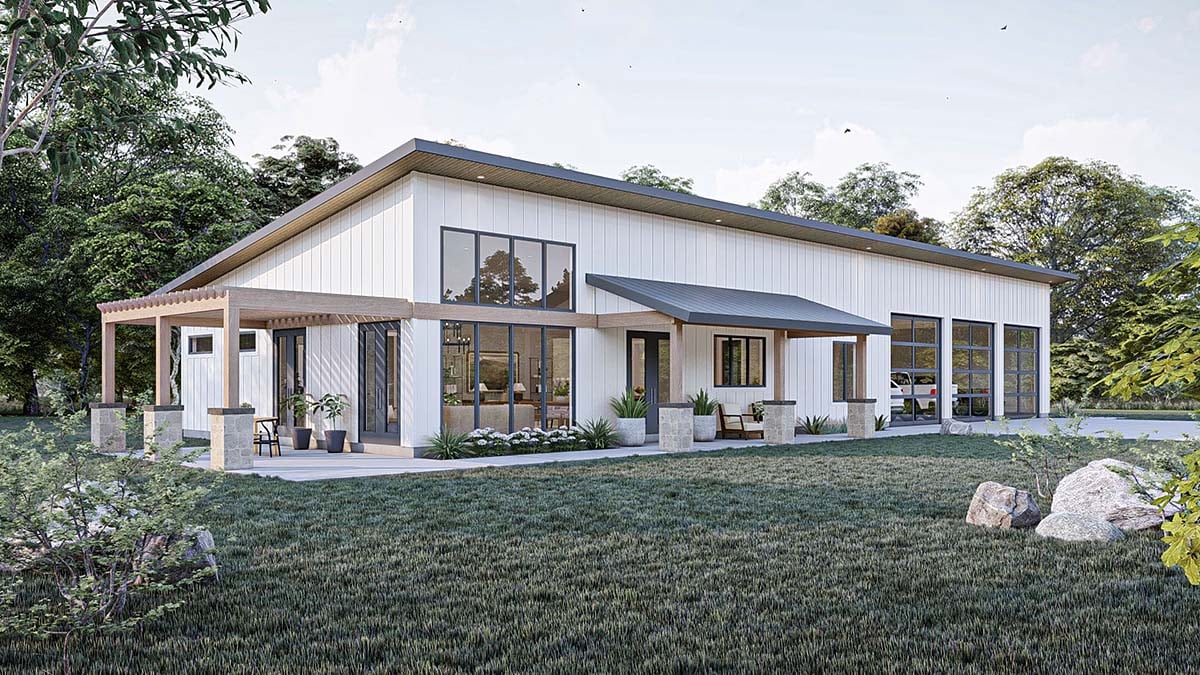

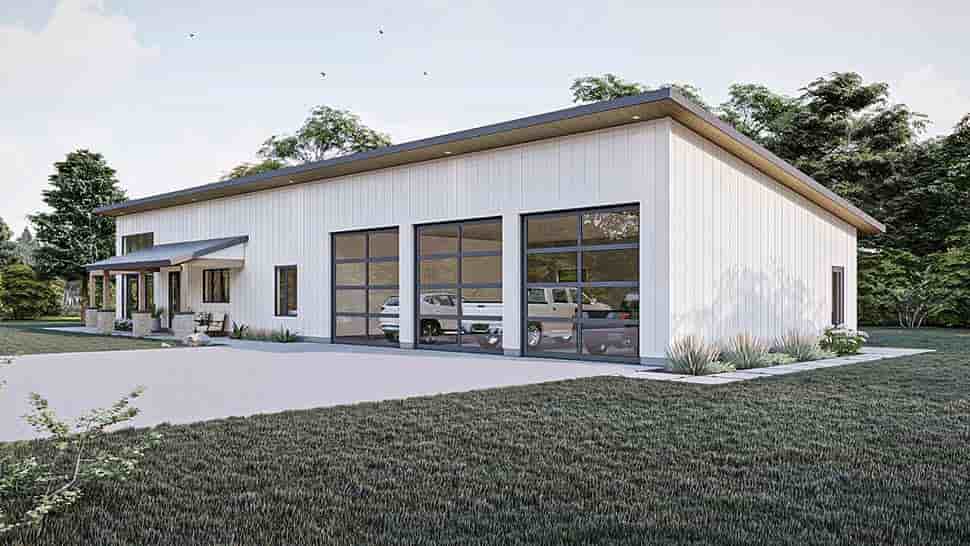

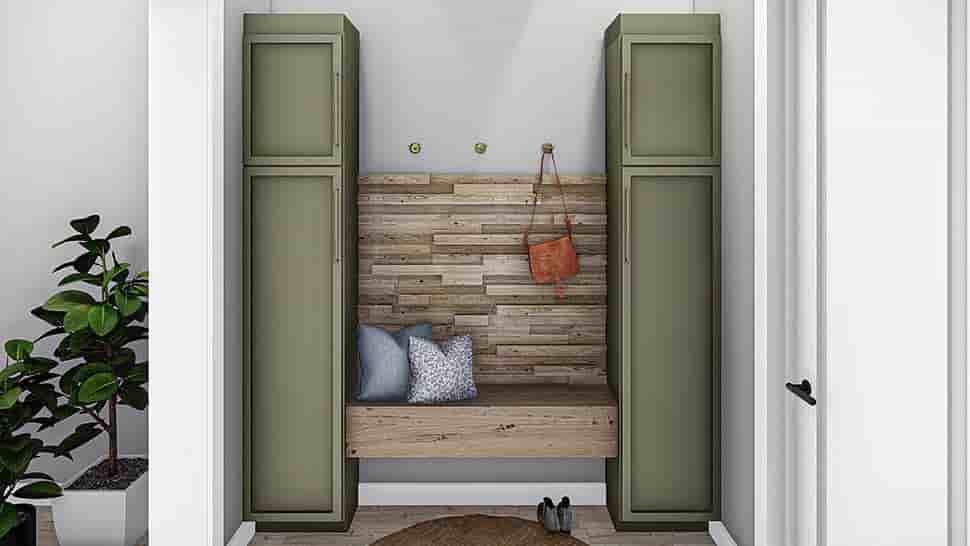

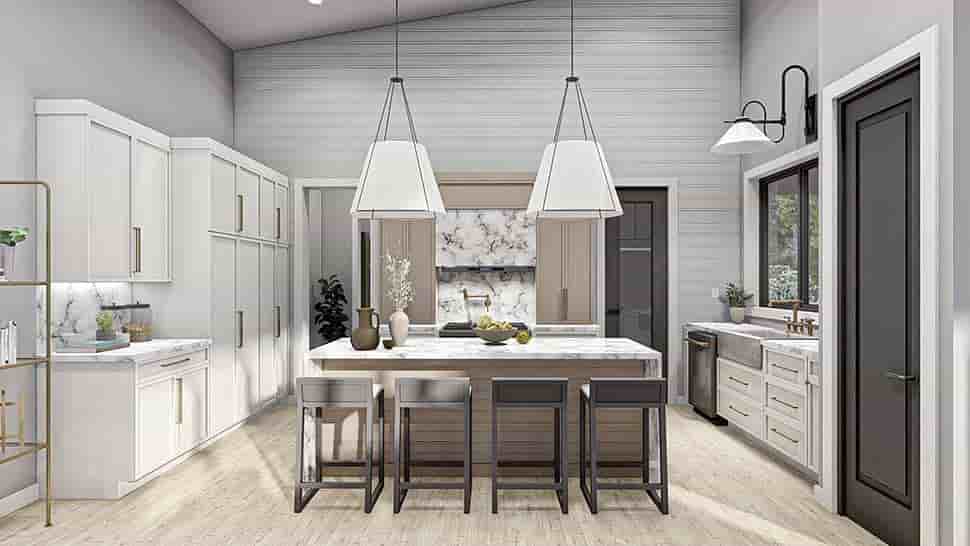

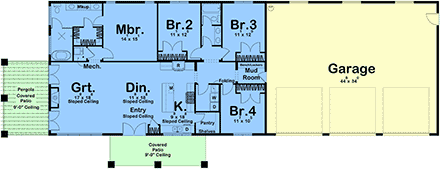

This modern barndominium has a touch that makes the home not only feel luxurious, but also comfortable. As soon as you step in through the oversized 3-car garage, you are greeted by a beautiful mudroom. Stepping in further you will find the kitchen, dining, and great room. The kitchen features a walk-in pantry and a large island looking into the open great room. The great room has a tall fireplace with French doors on either side. This plan has 4 bedrooms with plenty of room for guests. The master bedroom includes a large double vanity bathroom with a separate shower room. Step outside onto the covered patio and under the gorgeous pergola, perfect for adding lights to create the perfect mood for your evenings. This barndominium is unlike any other, and a perfect space for all things entertaining.

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible. Detached garage plans may not include an electrical plan. Please call to verify.

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans
