Plan Pricing from $550.00

Plan Pricing

PDF File: $550.00
5 Sets: $450.00
Reproducible Set: $400.00
CAD File: $550.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $100.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $25.00

Additional Notes

Garage door is 16 feet wide and door height is 13 feet

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Bonus Area:	1200 sq ft
Garage Area:	1920 sq ft
Garage Type:	Detached
Garage Bays:	6
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	40'
House Depth:	48'
Number of Stories:	2
Max Ridge Height:	25'5 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	40 psf
Roof Framing:	Truss
Main Ceiling Height:	14'

What's Included?

Our Plans include:
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project

Joist size, beam size, connections and hardware are shown. Materials list is not.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What are the sizes on the overhead doors?

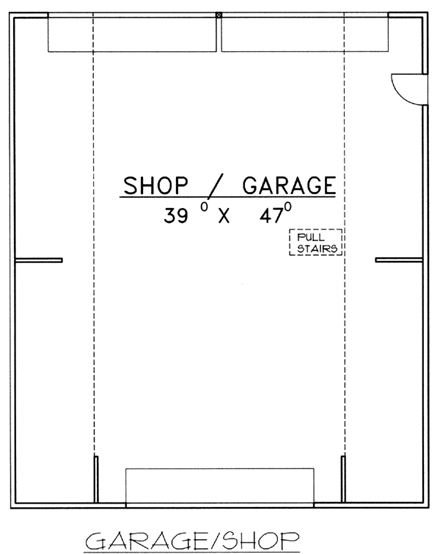

A: Hello, The overhead doors on the front elevation are 16'x13', the door on the rear elevation is 18'x13'. Thank you

Q: How tall is the attic storage space in this building? Can a fixed stairway be added instead of the pull down stairs to access the storage area?

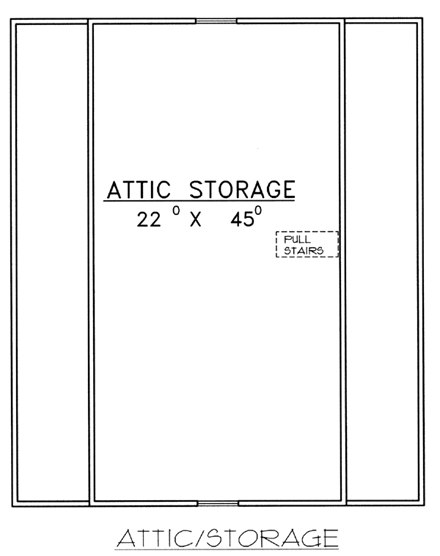

A: Hello, The side walls of the attic are 5'-2" and the ceiling vaults to 8'. A fixed stairway can be added, please fill out a modification request form for a quote on this change. Thank you!

Q: Would you happen to have a material list for this plan so I can figure out the cost of the building itself? Unless you have a rough estimate then that would be great. I would also like to know the length of the studs for the garage and the ceiling hight of the second floor at the peak and side walls.

A: Sorry, no materials list. 13' studs... engineered attic trusses 8'-0" peak in the attic, 5'-2" side walls Thank you!

Q: what are the 4 short "walls" pictured on the drawings?

A: designed to be shear walls to prevent the building from twisting.

Q: Are there any interior structural bearing locations or do the roof/attic trusses clear-span to the exterior walls?

A: No interior post... we just span it with the trusses.

Q: Couple questions about this plan. First, what type of slab foundation is it (monolithic or stem wall/raised)? Second, what is the roof live load (snow load) PSF? Thanks!

A: Stem wall foundation & dead load is 10 psf live load is 40 psf.
