4 Car Garage Plan 87277

Elevation First Level Plan
Quick Specs
4 Car Garage
44' W x 40' D
Quick Pricing
PDF File: $1,100.00
5 Sets: $1,000.00
CAD File: $1,100.00
Add to cart
Plan Pricing from $1,100.00
Plan Pricing
  • PDF File: $1,100.00
  • 5 Sets: $1,000.00
  • Reproducible Set: $900.00
  • CAD File: $1,100.00
    Single Build License issued on CAD File orders.
    • Need A Materials List?
    It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
  • Right Reading Reverse: $100.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00
Additional Notes
The roof pitches are 12/4 The ceiling height on both side bays is 10' The center garage door is 14'

Available Foundation Types:

  • Slab : No Additional Fee

Available Exterior Wall Types:

  • 2x6: No Additional Fee
Prices subject to approval prior to fulfillment.

Add to cart
Specifications
Garage Area: 1760 sq ft
Garage Type: Detached
Garage Bays: 4
Foundation Types: Slab
Exterior Walls: 2x6
House Width: 44'
House Depth: 40'
Number of Stories: 1
Max Ridge Height: 23'5 from Front Door Floor Level
Primary Roof Pitch: 0
Roof Framing: Truss
Upper Ceiling Height: 20'8
Plan Description

4 Car Garage

Garage Plan 87277 with 4 Car Garage
What's Included?
Our Plans include:
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project

Joist size, beam size, connections and hardware are shown. Materials list is not.
Modifications
Want to make changes to a house plan at Family Home Plans?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

What will it cost to build your new home?
Let us help you find out!

  • Family Home Plans has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
  • No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

$29.95 per plan

** Available for U.S. and Canada
Home-Cost

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

  • INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
  • RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
  • INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
  • REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
  • PEACE OF MIND: Take the financial guesswork out of building your dream home.
  • DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
  • EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
    • FamilyHomePlans.com Home Cost Estimate
    View Sample Report
    View Feature List

    Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

    • Accurate cost database of 43,000 zip codes (US & Canada)
    • Print cost reports or export to Excel®
    • General Contractor or Owner-Builder contracting
    • Estimate 1, 1½, 2 and 3-story home designs
    • Slab, crawlspace, basement or walkout basement
    • Foundation depth / excavation costs based on zip code
    • Cost impact of bonus rooms and open-to-below space
    • Pitched roof or flat roof homes
    • Drive-under and attached garages
    • Garage living – accessory dwelling unit (ADU) homes
    • Duplex multi-family homes
    • Barndominium / Farmdominium homes
    • RV grages and Barndos with oversized overhead doors
    • Costs adjust based on ceiling height of home or garage
    • Exterior wall options: wood, metal stud, block
    • Roofing options: asphalt, metal, wood, tile, slate
    • Siding options: vinyl, cement fiber, stucco, brick, metal
    • Appliances range from economy to commercial grade
    • Multiple kitchen & bath counter / cabinet selections
    • Countertop options range from laminate to stone
    • HVAC, fireplace, plumbing and electrical systems
    • Fire suppression / sprinkler system
    • Elevators





Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What are the roof pitches? And the outside where the porch wall comes down over the man door, what height is that? What height is the large garage door?

A: Hello, The roof pitches are 12/4 The ceiling height on both side bays is 10' The center garage door is 14' Thank you!

Q: What types of beams are you using to support the trusses? What sort of beam would be needed if I extended the garage to 50' Wide X 42'-44' Deep? Can one of the columns be removed? so there would be 1 central column per side of the central bay? (talked with Abe in customer service).

A: Glu-lam beams. Yes we can go to a double post in the middle with a slightly larger glu-lam beam. Please fill out a modification request form if you would like a quote for those changes.

Q: Are your plans IRC code?

A: Yes

Q: What are the widths of each section?

A: Interior widths are 13'-11" on the two side bays and 15'-6" in the center. Total interior dimensions are 43'-4"W X 39'-4"D. Exterior walls are 2X4.

Q: what are the door sizes?

A: The two side garage doors are 10'W X 8' H and the middle bay's door is 12'W X 14'H.

Q: Hello, Whats the distance from the main bay header to the middle plate? Im wondering if their is enough room for a storage area?

A: 6'-8" from the top of the garage door to the plate...

Q: Hello, what size are each of the three bays? What is the wall height of the two outer bays?

A: 14', 15', 14' inside
10'-8" plate right & left.... 20'-8" plate middle

Q: What is the snow raitings and will this meet state coder for Utah?

A: Snow is at 50 lbs per sq' and yes this plan is designed to the IRC 2009..

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.

Add To cart  Save Plan Ask A Question Share This Plan Designer's Plans

6 Viewed Plans

Get Discount Code

Call 800-482-0464

Elevation

Elevation

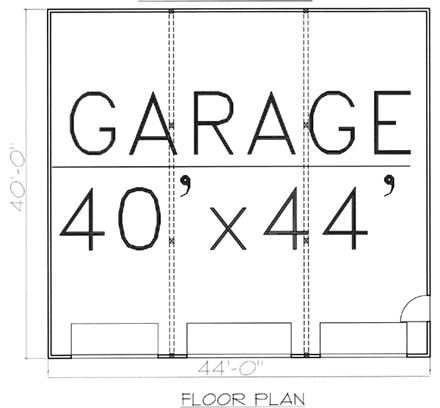

Level One
