4 Car Garage Plan 87869

• PDF File: $355.00
• 5 Sets: $395.00
• 8 Sets: $425.00
• Reproducible Set: $395.00
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List Included With Plan Order
• Additional Sets: $30.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	1120 sq ft
Garage Type:	Detached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	28'
House Depth:	40'
Number of Stories:	1
Max Ridge Height:	20' from Front Door Floor Level
Primary Roof Pitch:	4:12
Roof Load:	30 psf
Roof Framing:	Truss

Foundation: This shows the layout of the basement, crawl space, or slab foundation.

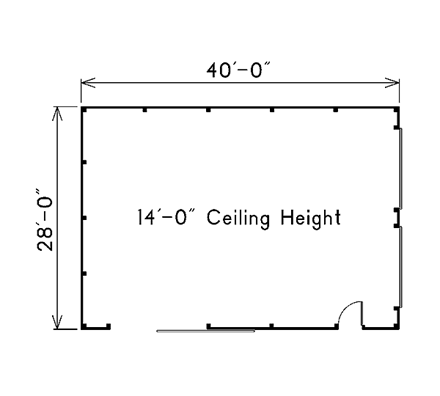

Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..

Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.

Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.

Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.

Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
