Garage-Living Apartment Plan 100119 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 974 Total Living Area
  • 99 Main Level
  • 875 Upper Level
  • 1 Bedrooms
  • 1 Full Bath(s)
  • 2 Car Garage
  • 24'0 Wide x 44'5 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $995.00
  • CAD File Unlimited Build: $1,995.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $245.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

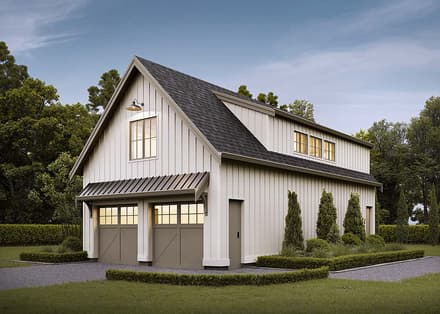

Garage-Living Plan 100119 | Order Code: 00WEB | Elevation

Reverse Plan


Garage-Living Plan 100119 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage-Living Plan 100119 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Garage-Living Plan 100119 | Order Code: 00WEB | Alternate Level Two

Reverse Plan


Garage-Living Plan 100119 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 974
  • Main Living Area: 99
  • Upper Living Area: 875
  • Garage Area: 967
  • Garage Type: Drive Under
  • Garage Bays: 2
  • House Width: 24'0
  • House Depth: 44'5
  • Number of Stories: 2
  • Bedrooms: 1
  • Full Baths: 1
  • Max Ridge Height: 25'10 from Front Door Floor Level
  • Primary Roof Pitch: 12:12
  • Roof Framing: Truss
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $995.00
  • CAD File Unlimited Build: $1,995.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $245.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

Special Features:

  • Entertaining Space
  • Open Floor Plan
  • Storage Space

Architectural Styles

Craftsman, Farmhouse, Traditional

Traditional Style Garage-Living Plan 100119 with 974 Sq Ft, 1 Bed, 1 Bath, 2 Car Garage

Narrow Lot Garage Apartment Plan With Options is a long and narrow footprint at 24' wide by 45' deep. The options come in with the upper level which can be simply used for wide open storage or finished to be a comfortable one bedroom apartment with full bath and open living space among the kitchen, living room, and dining areas. Not only that, but the occupant has a laundry room too! The ground level admits two vehicles and has tons of space left over in the back for storage or shop space.
