House Plan 40027 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 1501 Total Living Area
  • 1501 Main Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 2 Car Garage
  • 52'8 Wide x 59'10 Deep
Available Foundation Types:
  • Basement - * $375.00
  • Crawlspace - * $375.00
  • Slab

Plan Pricing

  • PDF File: $1,310.00
  • 5 Sets plus PDF File: $1,800.00
  • CAD File: $2,280.00
  • Right Reading Reverse: $300.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

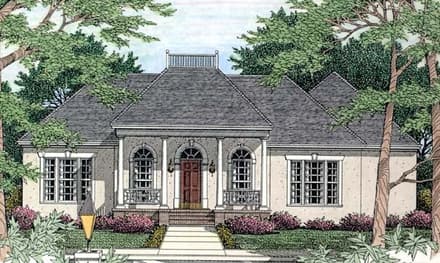

House Plan 40027 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 40027 | Order Code: 00WEB | First Floor Plan

Reverse Plan


House Plan 40027 | Order Code: 00WEB | Alternate Level One

Reverse Plan


House Plan 40027 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 1501
  • Main Living Area: 1501
  • Unfinished Basement Area: 1501
  • Garage Area: 482
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 52'8
  • House Depth: 59'10
  • Number of Stories: 1
  • Bedrooms: 3
  • Full Baths: 2
  • Max Ridge Height: 21' from Front Door Floor Level
  • Primary Roof Pitch: 10:12
  • Roof Load: 45 psf
  • Roof Framing: Stick
  • Porch: 227 sq ft
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 9'

Available Foundation Types:

  • Basement - $375.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace - $375.00
  • Slab

Plan Pricing

  • PDF File: $1,310.00
  • 5 Sets plus PDF File: $1,800.00
  • CAD File: $2,280.00
  • Right Reading Reverse: $300.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Stucco Exterior

* prices shown w/o any discounts applied

This classical, raised porch intrigues with architectural columns, wrought iron railing and arched windows. Upon entering the foyer, columns distinctively separate the foyer and living room. The vaulted living room looks onto the skylit porch and courtyard. The kitchen and dining room complete the right side of the home. The curved bar opens these rooms into the living area. The master suite features a bow window centered between two large windows which provide view to the courtyard. The private master bath includes a walk-in closet, garden tub, separate shower, dual lavatories and a linen closet. Two additional bedrooms share a full bath. The middle bedroom can be used for a home office.
