Garage Plan 41314 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2 Car Garage
  • 40'0 Wide x 32'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $960.00
  • 1 Set: $380.00
  • 5 Sets plus PDF File: $620.00
  • CAD File: $1,065.00
  • CAD File Unlimited Build: $1,170.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00
* prices shown w/o any discounts applied

Garage Plan 41314 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 41314 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage Plan 41314 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Garage Plan 41314 | Order Code: 00WEB | Rear Elevation

Specifications

  • Bonus Area: 419
  • Garage Area: 832
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 40'0
  • House Depth: 32'0
  • Number of Stories: 2
  • Max Ridge Height: 20'9 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Load: 25 psf
  • Roof Framing: Truss and/or Stick
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $960.00
  • 1 Set: $380.00 **
  • 5 Sets plus PDF File: $620.00
  • CAD File: $1,065.00
  • CAD File Unlimited Build: $1,170.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

* prices shown w/o any discounts applied

Special Features:

  • Deck or Patio

Architectural Styles

Ranch

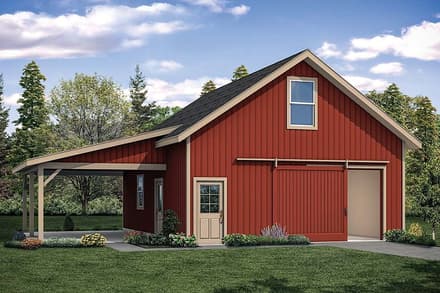

This adorable, yet functional, single car garage features an ample amount of workspace and storage. The covered patio allows for an outdoor workspace that is protected from the elements. Up the stairs at the back of the garage leads to unfinished storage space. If finished, it could be used as an extra workspace or an art studio. The exterior has a contemporary country feel, complete with sliding barn door.
