Garage Plan 43730 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 4 Car Garage
  • 44'0 Wide x 36'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $615.00
  • 1 Set: $240.00
  • 5 Sets plus PDF File: $405.00
  • CAD File: $695.00
  • CAD File Unlimited Build: $770.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $50.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $20.00
* prices shown w/o any discounts applied

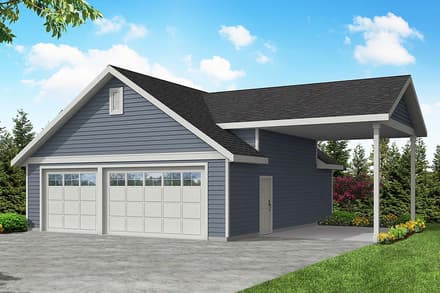

Garage Plan 43730 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 43730 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage Plan 43730 | Order Code: 00WEB | Rear Elevation

Specifications

  • Garage Area: 1080
  • Garage Type: Detached
  • Garage Bays: 4
  • House Width: 44'0
  • House Depth: 36'0
  • Number of Stories: 1
  • Max Ridge Height: 20'1 from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Load: 25 psf
  • Roof Framing: Truss
  • Main Ceiling Height: 9'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $615.00
  • 1 Set: $240.00 **
  • 5 Sets plus PDF File: $405.00
  • CAD File: $695.00
  • CAD File Unlimited Build: $770.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $50.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $20.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

RV storage: 294 sq. ft.

* prices shown w/o any discounts applied

Architectural Styles

Traditional

Traditional Garage Plan with RV Storage

This traditional garage plan can contain up to three cars. The smaller garage door is 9' wide and 8' wall, while the larger door is 14' wide and 8' tall. The covered area to the right offers RV parking with a 13' high ceiling.
