Garage Plan 78480 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2 Car Garage
  • 36'0 Wide x 30'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $960.00
  • 1 Set: $380.00
  • 5 Sets plus PDF File: $620.00
  • CAD File: $1,065.00
  • CAD File Unlimited Build: $1,170.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00
* prices shown w/o any discounts applied

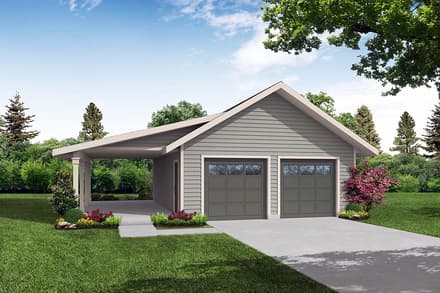

Garage Plan 78480 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 78480 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage Plan 78480 | Order Code: 00WEB | Rear Elevation

Specifications

  • Garage Area: 720
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 36'0
  • House Depth: 30'0
  • Number of Stories: 1
  • Max Ridge Height: 17'2 from Front Door Floor Level
  • Primary Roof Pitch: 7:12
  • Roof Load: 25 psf
  • Roof Framing: Truss
  • Main Ceiling Height: 8'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $960.00
  • 1 Set: $380.00 **
  • 5 Sets plus PDF File: $620.00
  • CAD File: $1,065.00
  • CAD File Unlimited Build: $1,170.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

* prices shown w/o any discounts applied

Architectural Styles

Country, Traditional

Traditional Style Garage Plan

Simple and functional, this garage plan fits the bill as a no frills addition to any property. If you are looking to find storage to keep your spare or recreational vehicles from the elements, this 2 car garage plan brings exactly what you need to the table. With two 8' x 7' garage doors, two cars can easily fit into this space. As an added bonus, the additional covered storage on the left side of the building is perfect for outdoor tasks all while keeping you safe from less than favorable weather.
