Garage-Living Apartment Plan 84998 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 1870 Total Living Area
  • 537 Main Level
  • 1333 Upper Level
  • 2 Bedrooms
  • 3 Full Bath(s)
  • 3 Car Garage
  • 57'8 Wide x 49'5 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $1,499.00
  • 5 Sets plus PDF File: $1,794.00
  • CAD File: $2,098.00
  • CAD File Unlimited Build: $2,498.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Materials List: $299.00
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $59.00
* prices shown w/o any discounts applied

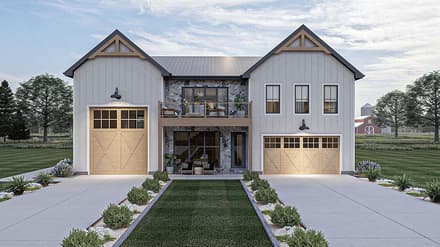

Garage-Living Plan 84998 | Order Code: 00WEB | Elevation

Reverse Plan


Garage-Living Plan 84998 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage-Living Plan 84998 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Garage-Living Plan 84998 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 1870
  • Main Living Area: 537
  • Upper Living Area: 1333
  • Garage Area: 1584
  • Garage Type: Drive Under
  • Garage Bays: 3
  • House Width: 57'8
  • House Depth: 49'5
  • Number of Stories: 2
  • Bedrooms: 2
  • Full Baths: 3
  • Max Ridge Height: 30'7 from Front Door Floor Level
  • Primary Roof Pitch: 5:12
  • Roof Framing: Truss
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 10'
  • Upper Ceiling Height: 9'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $1,499.00
  • 5 Sets plus PDF File: $1,794.00
  • CAD File: $2,098.00
  • CAD File Unlimited Build: $2,498.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Materials List: $299.00
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $59.00
* prices shown w/o any discounts applied

Special Features:

  • Deck or Patio
  • Entertaining Space
  • Hobby Room
  • Pantry

Architectural Styles

Barndominium, Contemporary, New American

New American Style Garage-Living Plan 84998 with 1870 Sq Ft, 2 Bed, 3 Bath, 3 Car Garage

This charming New American style carriage house plan boasts 1870 sq ft of living space, spread across two bedrooms and three bathrooms. The exterior of the home is accented with classic farmhouse elements, such as board and batten siding and a gabled roof, while the interior is filled with modern touches, including an open floor plan and high-end finishes.

The main level of the home features an RV garage, rec area, 4 seasons room, and a shop area. The upper level includes a spacious great room, a gourmet kitchen with a large center island, and a formal dining area.

The upper level also houses the two bedrooms, including a luxurious master suite with a private bathroom and walk-in closet. A third bathroom is located on the main level, just off the garage, making it convenient for anyone working in the three-bay garage or coming in from the outdoors.

This beautiful carriage house plan is the perfect combination of classic and modern, making it the perfect place to call home.
