Multi-Family Plan 96218 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2212 Total Living Area
  • 547 Main Level
  • 559 Upper Level
  • 6 Bedrooms
  • 4 Full Bath(s)
  • 20' Wide x 56' Deep
  • 2 Units
Available Foundation Types:
  • Crawlspace

Plan Pricing

  • PDF File: $1,595.00
  • 5 Sets plus PDF File: $1,845.00
  • CAD File: $2,095.00
  • Materials List: $125.00
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00
* prices shown w/o any discounts applied

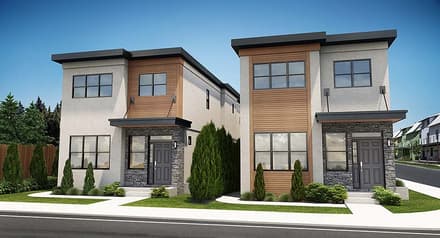

Multi-Family Plan 96218 | Order Code: 00WEB | Elevation

Reverse Plan


Multi-Family Plan 96218 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Multi-Family Plan 96218 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Multi-Family Plan 96218 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 2212
  • Main Living Area: 547
  • Upper Living Area: 559
  • Garage Type: None
  • House Width: 20'
  • House Depth: 56'
  • Number of Stories: 2
  • Bedrooms: 6
  • Full Baths: 4
  • Max Ridge Height: 22'8 from Front Door Floor Level
  • Primary Roof Pitch: 0
  • Roof Framing: Unknown
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 9'

Available Foundation Types:

  • Crawlspace

Plan Pricing

  • PDF File: $1,595.00
  • 5 Sets plus PDF File: $1,845.00
  • CAD File: $2,095.00
  • Materials List: $125.00
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00
* prices shown w/o any discounts applied

Architectural Styles

Contemporary

This contemporary narrow lot duplex features an open living area and three bedrooms all in a compact design. The width of the building is 20’-0” at the foundation with two 1’-0” cantilevers on the second floor for a width of 22’-0”. For multiple duplex projects an alternate exterior plan is available. Main Floor Area per unit is 546.5 sq.ft., Second Floor Area per unit is 559.5 sq. ft. Finished area of entire building is Main Fl. 1093 sq. ft. plus Second Fl. 1119 sq. ft. for a total finished area of 2212 sq. ft.

Multi-Family Plan 96218 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Multi-Family Plan 96218 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
