House Plan 75417

Large Luxury Craftsman Home Design | Plan 75417

sq ft

5014

beds

baths

3.5

bays

width

109'

depth

99'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $2,757.70

Plan Pricing

PDF File: $2,757.70
5 Sets: $2,105.88
8 Sets: $2,206.16
Reproducible Set: $2,757.70
CAD File: $4,412.32
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $335.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $65.00

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : $335.00
May require additional drawing time, please call to confirm before ordering.
Slab : $335.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	5014 sq ft
Main Living Area:	3700 sq ft
Upper Living Area:	1314 sq ft
Garage Area:	1905 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace - * $335.00 Slab - * $335.00
Exterior Walls:	2x6
House Width:	109'0"
House Depth:	98'8"
Number of Stories:	2
Bedrooms:	4
Full Baths:	3
Half Baths:	1
Max Ridge Height:	35'10" from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	461 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'0"
Upper Ceiling Height:	9'0"

* May require additional drawing time.

Special Features:

Computer Nook
Deck or Patio
Jack and Jill Bathroom
Lania
Mudroom
Pantry
Rear Porch

Plan Description

Large Luxury Craftsman Home Design

• Craftsman details including custom beams, stone and shingle siding and a garage pergola define the character of this home.
• A graceful curved staircase and two-story ceiling greet you as you enter.
• A formal dining room with 10’ ceilings is located to the right of the entry.
• An open concept floor plan creates direct sight lines from the kitchen to the nook, hearth room and great room.
• A two-story, coffered ceiling and a fireplace with built-ins define the great room where a wall of windows allows plenty of natural light in.
• The main floor master suite is found on the left side of the home and features a spacious walk-in closet with center island, Jacuzzi tub and separate vanities.
• Three additional bedrooms, each with walk-in closet are located on the second floor. Bedroom #2 has a private bath and bedrooms 3 &4 have a Jack-and Jill bath.
• A four-stall, split-load garage completes the home.

What's Included?

Cover sheet with Front Rendering.

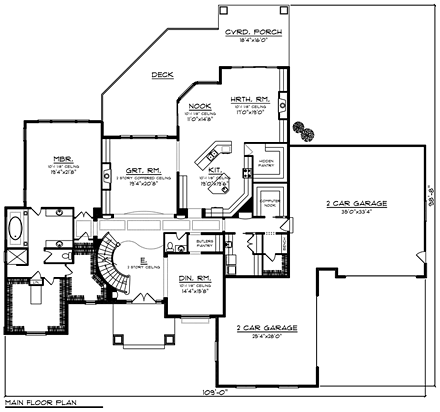

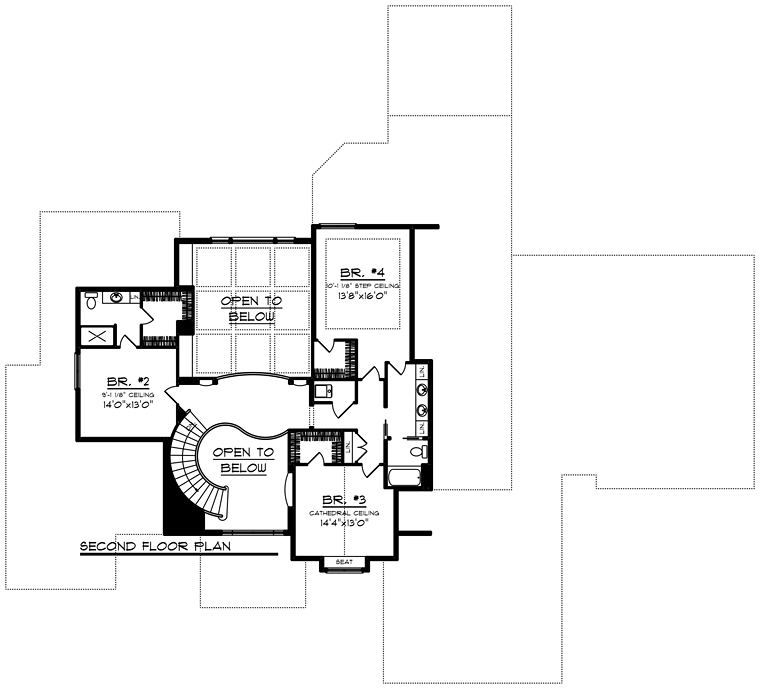

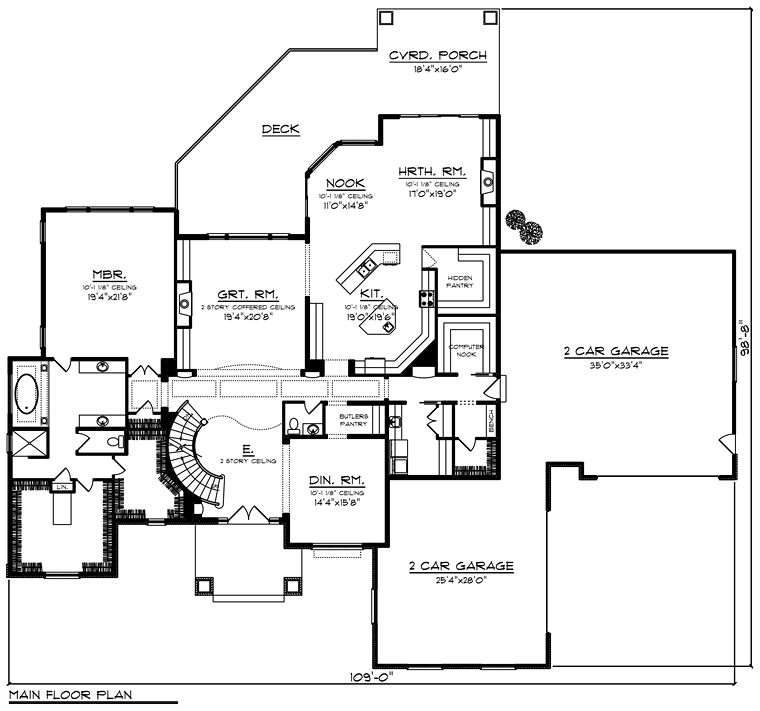

Foundation and Floor Plans at 1/4" = 1'0" scale.

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
