Multi-Family Plan 87367
sq ft
1536beds
4baths
2bays
0width
64'depth
24'
Thumbnails: ON | OFF
Quick Specs
1536 Total Living Area768 Main Level
4 Bedrooms, 2 Full Baths
64' W x 24' D
Quick Pricing
PDF File: $1,299.005 Sets: $1,299.00
Unlimited Use PDF: $2,698.00
CAD File: $1,899.00
Plan Pricing from $1,299.00
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1536 sq ft |
| Main Living Area: | 768 sq ft |
| Garage Type: | None |
| Foundation Types: | Crawlspace - * $299.00 Slab |
| Exterior Walls: | 2x4 2x6 - * $299.00 |
| House Width: | 64' |
| House Depth: | 24' |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Max Ridge Height: | 16'0 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 140 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
Associated Styles:
Plan Description
Affordable Ranch Duplex House Plan 87367 with 1,536 Sq Ft, 2 Bedrooms and 1 Bath Per Unit

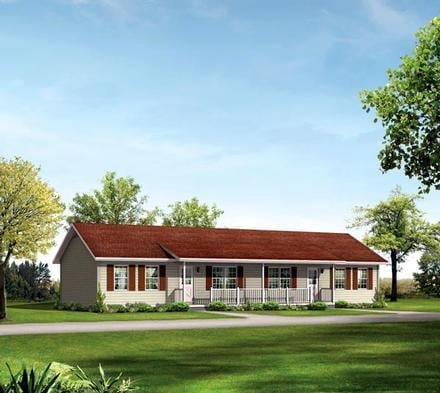

Affordable Ranch Duplex House Plan 87367 offers a practical solution for economical multifamily construction with 1,536 square feet of total heated living space. This one-story duplex features two side-by-side residences, each providing 768 square feet, 2 bedrooms, and 1 full bathroom. Designed with a compact footprint, open-concept living areas, and a welcoming shared front porch, this efficient duplex is an appealing choice for rental housing, owner-occupied properties, and residential development projects.The exterior reflects the enduring simplicity of traditional Ranch architecture. A straightforward roofline and clean residential proportions create attractive curb appeal while helping simplify construction. The shared front porch provides approximately 140 square feet of sheltered outdoor space, offering residents a welcoming entrance and a comfortable place to relax.

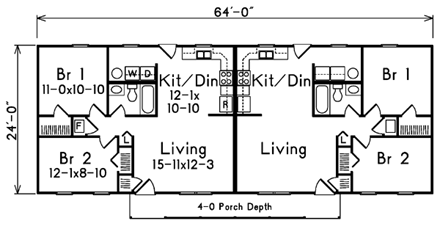

Each 768-square-foot residence features an open-concept floor plan connecting the living room, dining area, and kitchen. This arrangement maximizes the available interior space and creates an inviting atmosphere for everyday activities. The comfortable relationship between gathering areas makes each unit feel functional without unnecessary hallways or oversized rooms.
The kitchen provides a practical workspace conveniently connected to the dining and living areas. This efficient arrangement supports meal preparation while allowing residents to remain engaged with surrounding activities. The open layout is especially appealing for individuals and smaller households seeking comfortable, low-maintenance accommodations.
Two bedrooms in each unit provide flexibility for couples, small families, roommates, or residents requiring a home office. A conveniently located full bathroom serves each residence. The single-story arrangement eliminates interior stairs, making daily movement easier for residents with different mobility needs.
The duplex's straightforward construction features include eight-foot main-level ceilings, truss roof framing, and a 6:12 roof pitch. Exterior walls are specified with 2x4 framing, with a 2x6 option available. Slab and crawlspace foundation options allow builders to select an appropriate approach for local site conditions.
Its compact footprint and uncomplicated roof design can help reduce construction complexity and ongoing maintenance requirements. The two-unit configuration offers flexibility for homeowners who wish to occupy one residence and rent the other, or for investors developing long-term rental properties, subject to local regulations.
With four total bedrooms, two full bathrooms, efficient open living areas, and a welcoming front porch, House Plan 87367 combines traditional residential character with practical multifamily functionality. This economical duplex design offers a sensible starting point for builders and property owners seeking compact, versatile housing.
Better Living by Good Design.
What's Included?
Foundation: This shows the layout of the basement, crawl space, or slab foundation.
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q: What is the building height?
A: 16 ft. Warm Regards,
Q: Plan Number 87367. Plan shows a 1/4" scale. What size paper is required for the plans to be scalable
A: Good afternoon, 24 x 18 size paper would be needed.
Q: Is Multi_Family Plan 87367 drawn to meet IRC codes?
A: When these plans were drawn they did meet most national codes and they may not meet there own city code. Also, the plans are not stamped or sealed by any architect or engineer. If that needs to be done they have to do that local. The customer will need to do those changes with a local professional.
