House Plan 82920

Small Barndominium Home Plan with Partial Walk-Around Porch and Rear Entry Garage | Plan 82920

sq ft

1260

beds

2

baths

2

bays

2

width

40'

depth

80'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,295.00

Plan Pricing

PDF File: $1,295.00
5 Sets plus PDF File: $1,545.00
PDF File Unlimited Build: $1,995.00
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File Unlimited Build: $2,395.00
Unlimited Build License issued on CAD File Unlimited Build orders.
Materials List: $250.00
Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included.

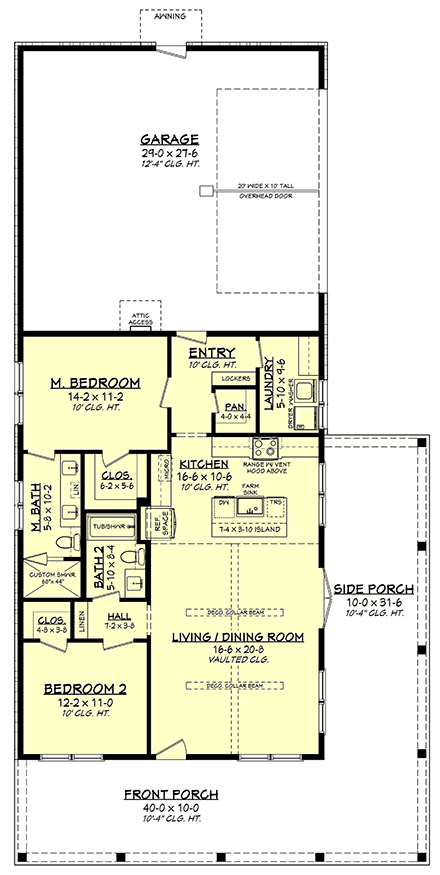

Right Reading Reverse: $225.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional License Fee: $495.00
Provides you with one additional license to build (a total of two builds).
Additional Sets: $100.00

Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.

An additional build license can be added to any plan package order for 495.00. Please call 800-482-0464 to place order.

Available Foundation Types:

Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $100.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee
Walkout Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1260 sq ft
Main Living Area:	1260 sq ft
Garage Area:	840 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $100.00 Slab Walkout Basement - * $395.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x6
House Width:	40'0
House Depth:	80'0
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	26'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	715 sq ft
Main Ceiling Height:	10'
Vaulted Ceiling:	Yes

* May require additional drawing time.

Special Features:

Entertaining Space
Front Porch
Mudroom
Open Floor Plan
Pantry
Storage Space
Wrap Around Porch

Plan Description

Small Barndominium Home Plan with Partial Walk-Around Porch and Rear Entry Garage

Barndominium design with amazing spaces for entertaining with two bedrooms, walk-in closets, private baths, and an extra half bath. Open concept living room and dining space boast vaulted ceilings with a wrap porch and large windows. The kitchen includes an eat at island and walk in pantry. The garage is oversized and has access to storage over the main living space.

What's Included?

Cover Sheet – May include index, front view of home, definitions, etc.

Foundation Plan – Typically includes dimensioned foundation plan with footing details.

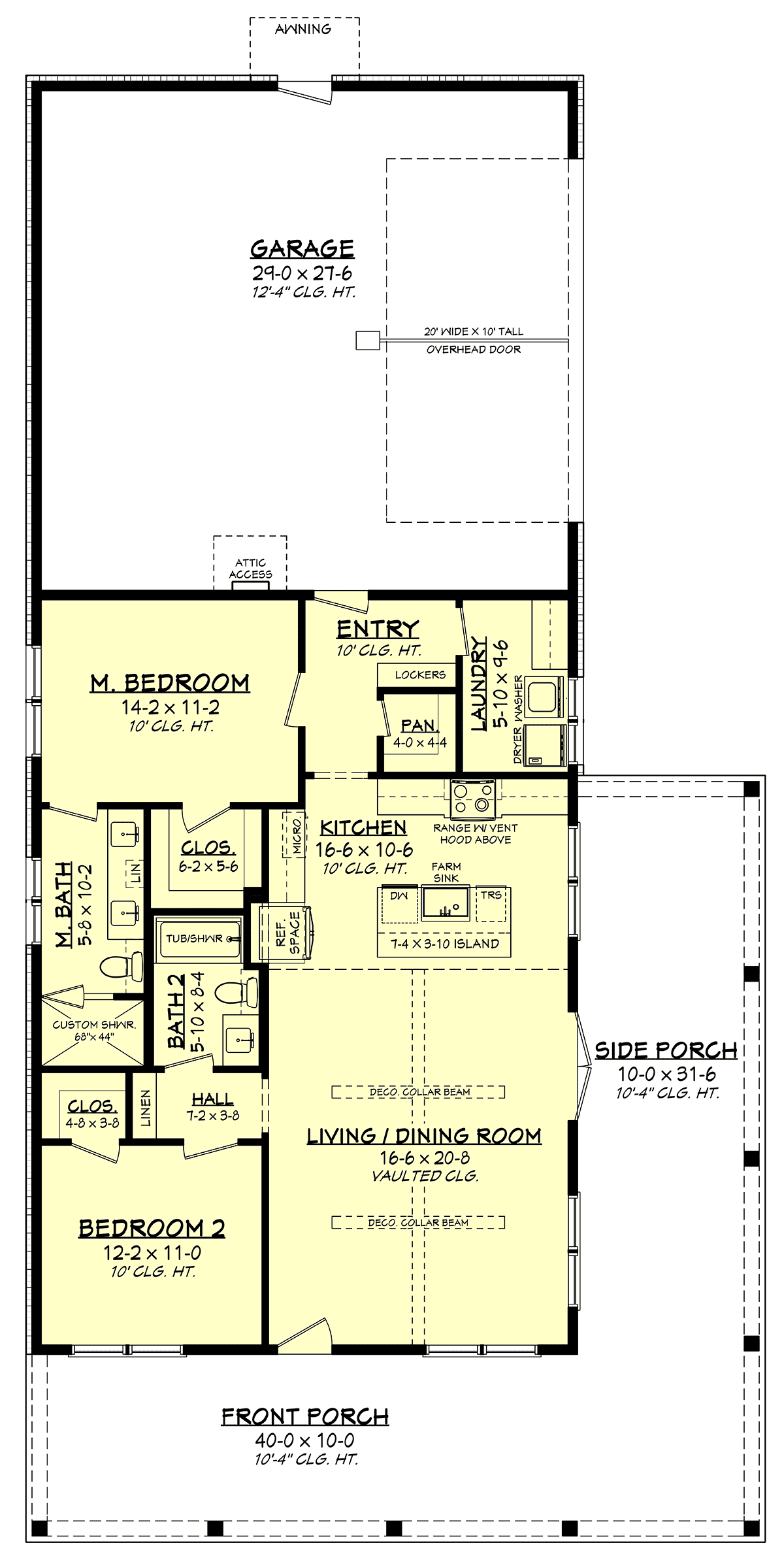

Dimensioned Floor Plan – Electrical may be shown.

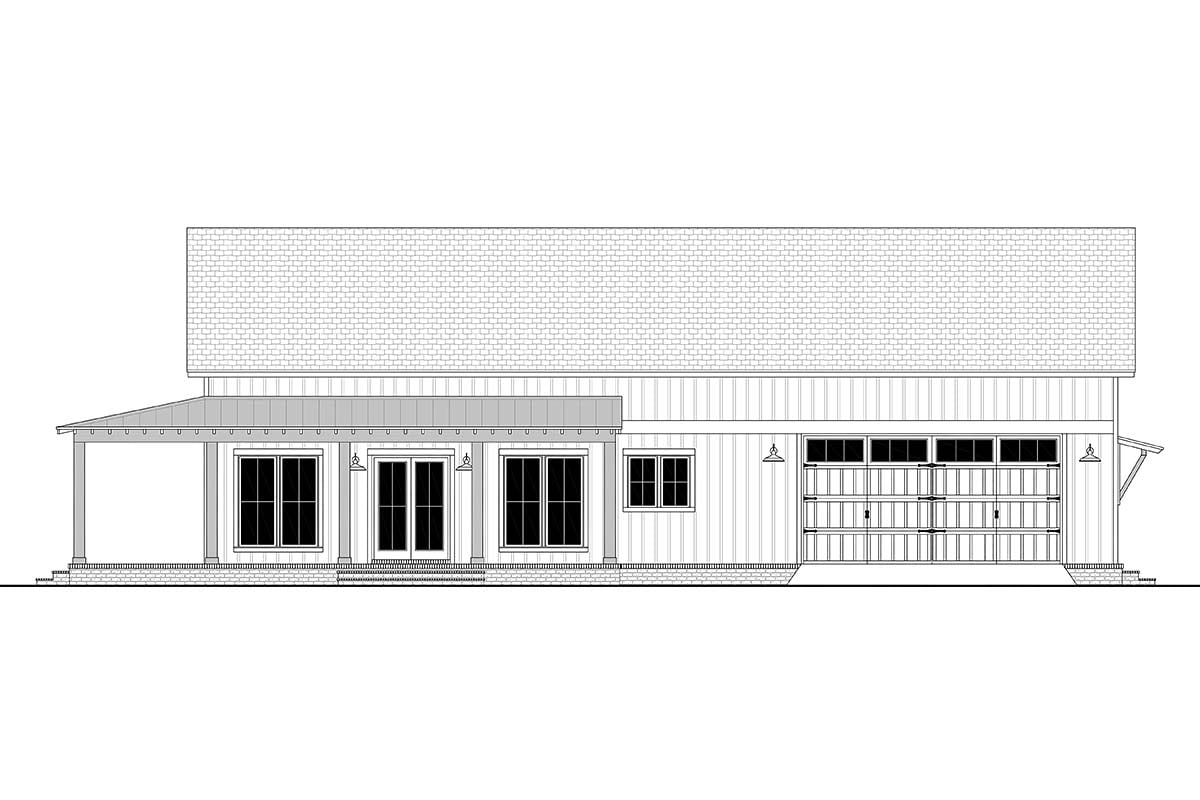

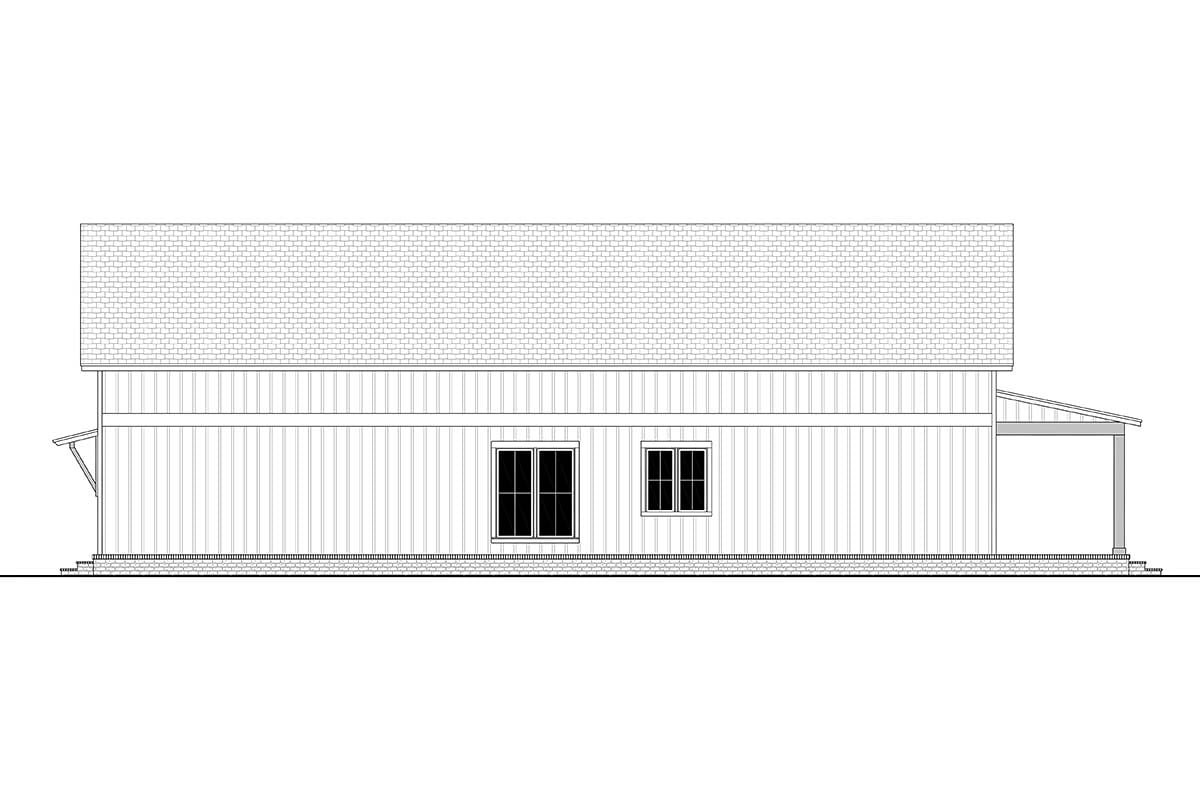

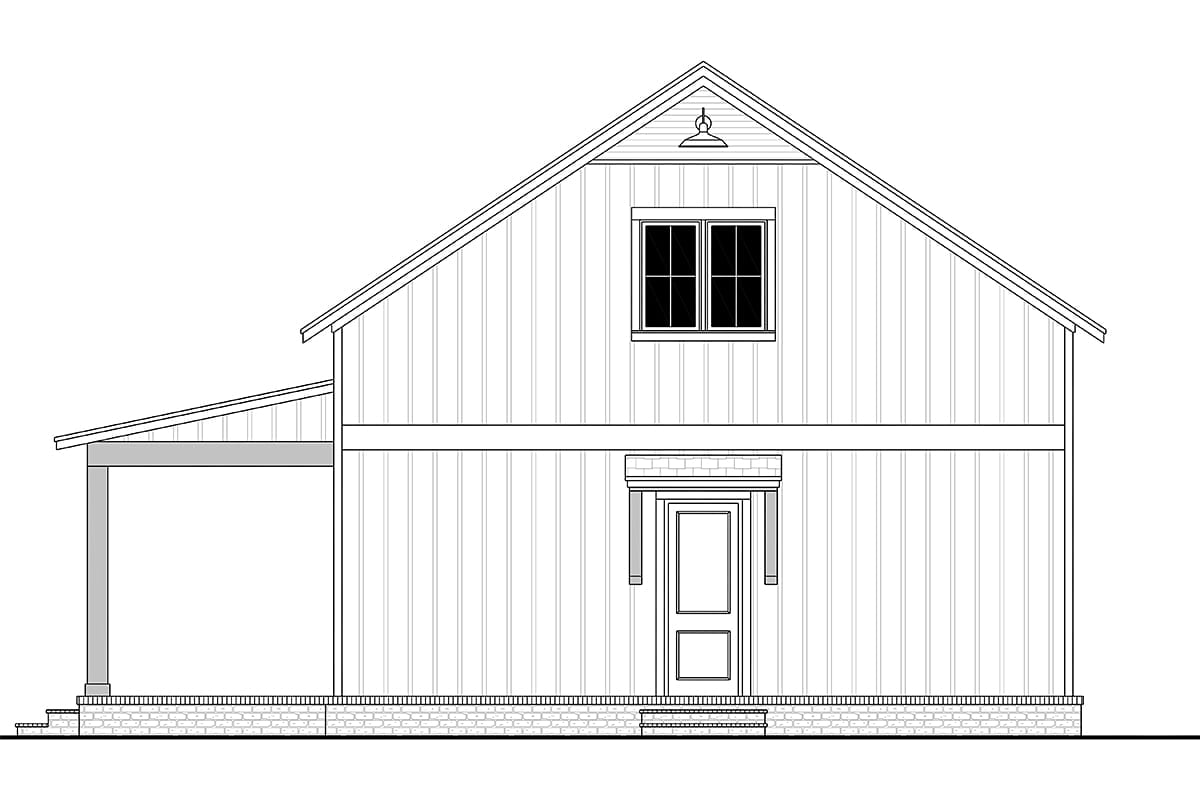

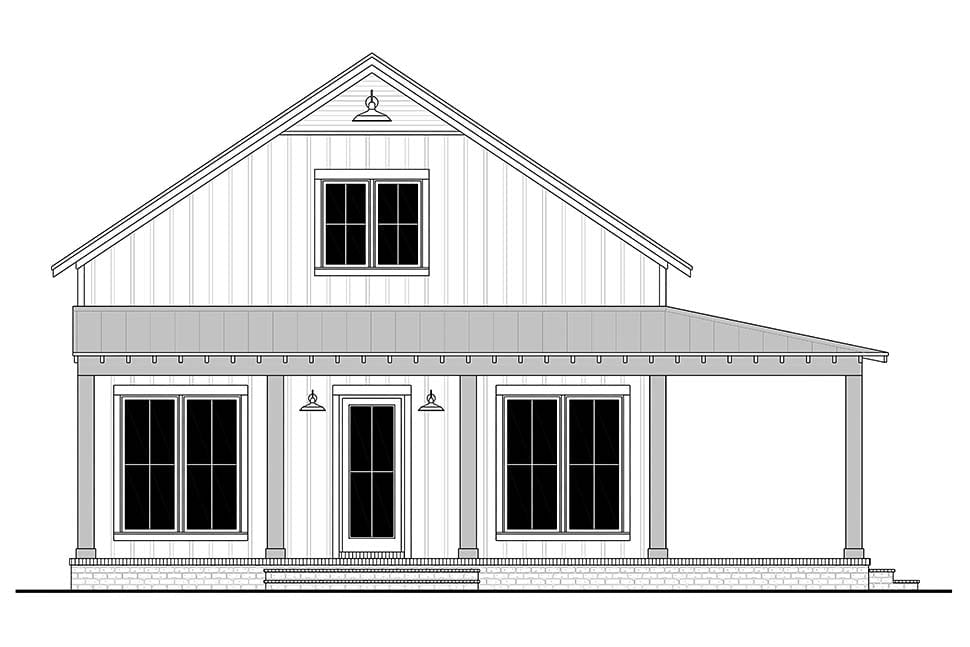

Exterior Views – Four exterior views of the residence with other miscellaneous details.

Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.

Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.

Wall Section(s) – Detail of wall materials and assembly.

Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.

Cabinet Elevations – Displays interior kitchen cabinet views.

ITEMS NOT INCLUDED

Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.

Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.

Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Does this plan have attic space up top

A: Yes, attic space is available above the living areas except over the vaulted great room. Access is available via a ladder in the garage or a pull down stair may be located in the living area.

Q: Is this plan available without the garage? Thank you

A: Plan 82932 is a similar plan with no garage, or modifications could be made to this design to remove the garage. This is also a fairly simple change to make on site with your builder.

Q: What is the square footage of the basement?

A: The basement provided is unfinished, but the space is approximately 1389 sf.

Q: I am very much interested in this plan! Would be so kind as to send me other variations of this? I would not want a center island and have my dining room instead. The sink under the patio window side. I would like to see what others have done with plan. Only need 1.5 bath Thank you so much, Carol

A: This is the only variation of this plan currently available, but you can certainly make modifications to it. Click the "Modifications" link to receive a quote.

Q: What would it be in overall dimension without garage. Attic access like in utility room

A: Removing the garage would subtract 28' from the overall depth.

Q: I was going to order this plan with a couple of changes. Can you tell me the window size in the living room area as I might make a change on them. Thank you for your help! Jo Ann

A: The Living Room windows are double 3'x7' windows.

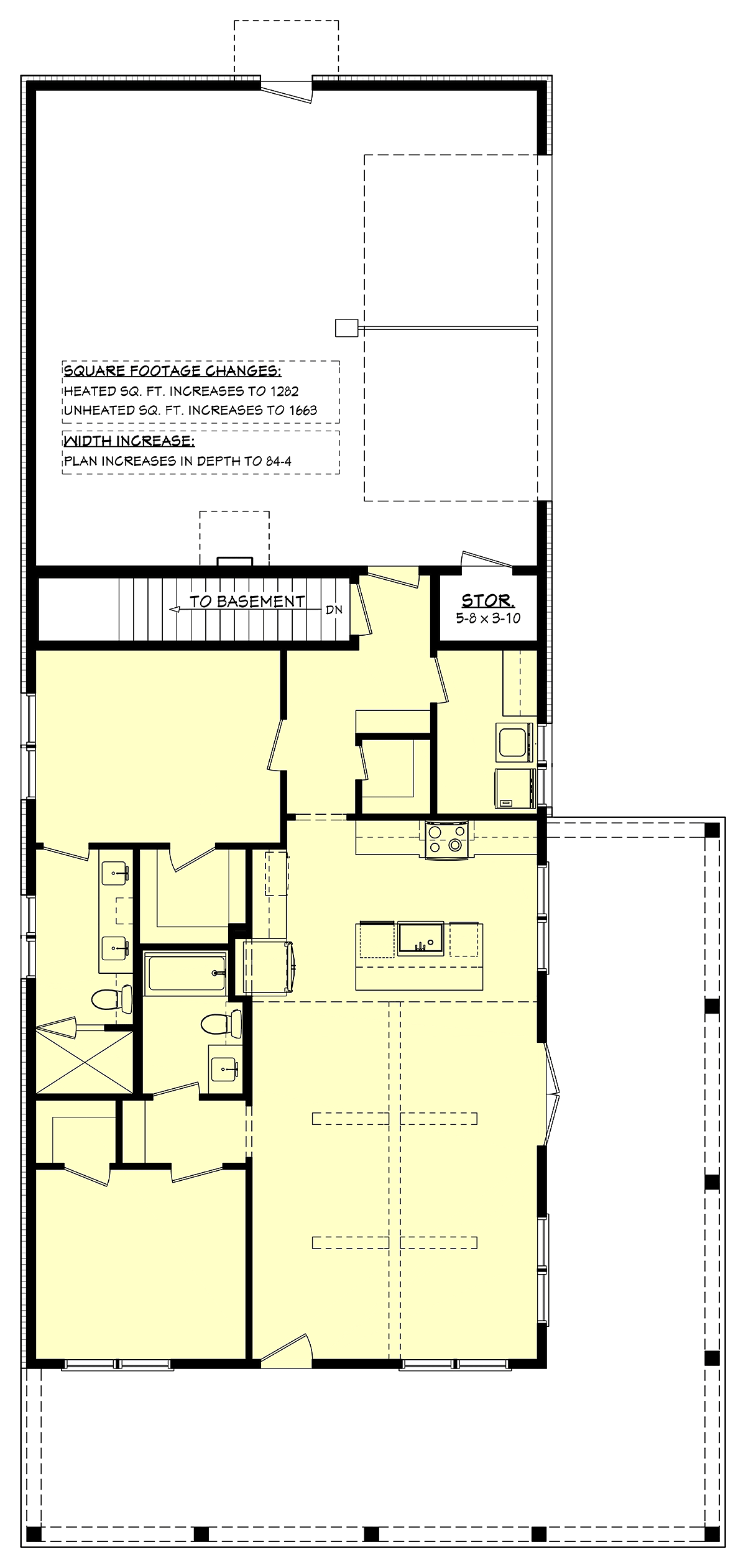

Q: Hi. On the alternate plan, is the interior wall of the basement stairs and storage room load bearing?

A: There will likely be roof bracing from this wall, which would make it load bearing.

Q: Hello could you tell me the highest point in the center of the living room where the vault and main beam go? Thank you Jo Ann

A: Approximately 15'-6".

Q: On the porch ceiling is the ceiling flat finished or are there ceiling rafters that come out over the beam on the porch and are open on the ends?

A: The porch ceilings are flat....only the ends of the rafters are visible on the overhang.

Q: Do you have any renderings of the interior? I need to know if the ceilings are vaulted.

A: We don't currently have any interior renderings. The living room is the only room that has a vaulted ceiling as indicated on the floor plan. The other rooms are 10' ceilings.

Q: Can the stairs go up to a loft as it appears there is 2nd story withe window in the front elevation photo?

A: The stairs shown indicate the location to the basement if that foundation option is chosen. This plan in its original state does not have a loft but one could be added by modifying the plans. Click the "Modifications" link to inquire about a price and timeline.

Q: Where does the vault start? Is the vault seen upstairs in the attic? We are not understanding how it fits with the window being centered on the gable ends.

A: See attachment. The window will only be visible from the attic space...it is not in the vaulted area.

View Attached File

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
