2 Car Garage Plan 76068

• PDF File: $425.00
• Right Reading Reverse: $145.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	572 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	34'0
House Depth:	26'0
Number of Stories:	1
Max Ridge Height:	19'2 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	15 psf
Roof Framing:	Truss
Porch:	48 sq ft
Main Ceiling Height:	9'0

Special Features:

• Front Porch
• Workshop

Double Car Garage Plan with Shop

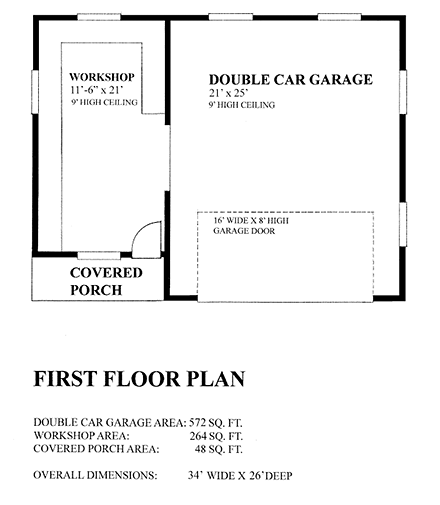

This double car garage is accessed via an eight foot high by sixteen foot wide overhead door and boasts a nine foot ceiling height. The garage is spacious at twenty-one feet wide by twenty-five feet deep.
The adjacent covered entry opens into the large eleven foot six-inch wide by twenty-one deep workshop which also has a nine foot high ceiling height. With a six foot wide opening into the double car garage this space is truly versatile.

These designs packages usually run between three and five 24" x 36" sheets.

Working drawings usually comprises of the following:

General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.

Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.

Items not including with plans: Interior cabinet elevations. Window schedules.

Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
